Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
ohne MwSt

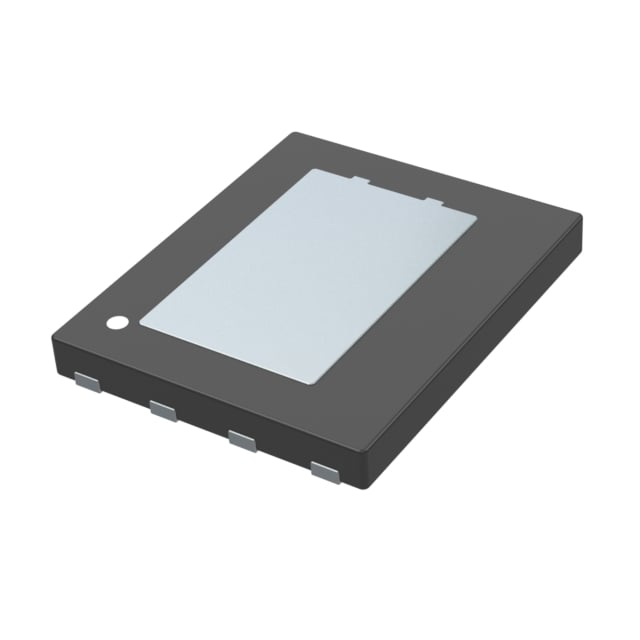

AON7902 AON7902 Alpha & Omega Semiconductor Inc. AOSGreenPolicy.pdf Description: MOSFET 2N-CH 30V 8A/13A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Half Bridge)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 1.8W
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 8A, 13A
Input Capacitance (Ciss) (Max) @ Vds: 710pF @ 15V
Rds On (Max) @ Id, Vgs: 21mOhm @ 8A, 10V
Gate Charge (Qg) (Max) @ Vgs: 11nC @ 10V
FET Feature: Logic Level Gate
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Produkt ist nicht verfügbar
AON7932 AON7932 Alpha & Omega Semiconductor Inc. AOSGreenPolicy.pdf Description: MOSFET 2N-CH 30V 6.6A/8.1A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-WDFN Exposed Pad
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Half Bridge)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 1.4W
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 6.6A, 8.1A
Input Capacitance (Ciss) (Max) @ Vds: 460pF @ 15V
Rds On (Max) @ Id, Vgs: 20mOhm @ 6.6A, 10V
Gate Charge (Qg) (Max) @ Vgs: 6.5nC @ 10V
FET Feature: Logic Level Gate
Vgs(th) (Max) @ Id: 2.4V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Produkt ist nicht verfügbar
AON7932 AON7932 Alpha & Omega Semiconductor Inc. AOSGreenPolicy.pdf Description: MOSFET 2N-CH 30V 6.6A/8.1A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-WDFN Exposed Pad
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Half Bridge)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 1.4W
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 6.6A, 8.1A
Input Capacitance (Ciss) (Max) @ Vds: 460pF @ 15V
Rds On (Max) @ Id, Vgs: 20mOhm @ 6.6A, 10V
Gate Charge (Qg) (Max) @ Vgs: 6.5nC @ 10V
FET Feature: Logic Level Gate
Vgs(th) (Max) @ Id: 2.4V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Produkt ist nicht verfügbar
AON7932_101 AON7932_101 Alpha & Omega Semiconductor Inc. AON7932.pdf Description: MOSFET 2N-CH 30V 6.6A/8.1A 8DFN
Packaging: Bulk
Package / Case: 8-WDFN Exposed Pad
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Half Bridge)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 1.4W
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 6.6A, 8.1A
Input Capacitance (Ciss) (Max) @ Vds: 460pF @ 15V
Rds On (Max) @ Id, Vgs: 20mOhm @ 6.6A, 10V
Gate Charge (Qg) (Max) @ Vgs: 6.5nC @ 10V
FET Feature: Logic Level Gate
Vgs(th) (Max) @ Id: 2.4V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Produkt ist nicht verfügbar
AON7934 AON7934 Alpha & Omega Semiconductor Inc. AON7934.pdf Description: MOSFET 2N-CH 30V 13A/15A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-WDFN Exposed Pad
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.5W
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 13A, 15A
Input Capacitance (Ciss) (Max) @ Vds: 485pF @ 15V
Rds On (Max) @ Id, Vgs: 10.2mOhm @ 13A, 10V
Gate Charge (Qg) (Max) @ Vgs: 11nC @ 10V
FET Feature: Logic Level Gate
Vgs(th) (Max) @ Id: 2.2V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
5000+0.59 EUR
Mindestbestellmenge: 5000
AON7934 AON7934 Alpha & Omega Semiconductor Inc. AON7934.pdf Description: MOSFET 2N-CH 30V 13A/15A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-WDFN Exposed Pad
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.5W
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 13A, 15A
Input Capacitance (Ciss) (Max) @ Vds: 485pF @ 15V
Rds On (Max) @ Id, Vgs: 10.2mOhm @ 13A, 10V
Gate Charge (Qg) (Max) @ Vgs: 11nC @ 10V
FET Feature: Logic Level Gate
Vgs(th) (Max) @ Id: 2.2V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
auf Bestellung 8130 Stücke:
Lieferzeit 10-14 Tag (e)
12+1.5 EUR
15+ 1.22 EUR
100+ 0.95 EUR
500+ 0.81 EUR
1000+ 0.66 EUR
2000+ 0.62 EUR
Mindestbestellmenge: 12
AON7934_101 AON7934_101 Alpha & Omega Semiconductor Inc. AON7934_Apr2012_DS.pdf Description: MOSFET 2N-CH 30V 13A/16A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-WDFN Exposed Pad
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.5W (Ta), 23W (Tc), 2.5W (Ta), 25W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 13A (Ta), 16A (Tc), 15A (Ta), 18A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 485pF @ 15V, 807pF @ 15V
Rds On (Max) @ Id, Vgs: 10.2mOhm @ 13A, 10V, 7.7mOhm @ 15A, 10V
Gate Charge (Qg) (Max) @ Vgs: 11nC @ 10V, 17.5nC @ 10V
Vgs(th) (Max) @ Id: 2.2V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Obsolete
Produkt ist nicht verfügbar
AON7934_102 Alpha & Omega Semiconductor Inc. AON7934_Apr2012_DS.pdf Description: MOSFET 2N-CH 30V 13A/16A 8DFN
Packaging: Bulk
Package / Case: 8-WDFN Exposed Pad
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual) Asymmetrical
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.5W (Ta), 23W (Tc), 2.5W (Ta), 25W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 13A (Ta), 16A (Tc), 15A (Ta), 18A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 485pF @ 15V, 807pF @ 15V
Rds On (Max) @ Id, Vgs: 10.2mOhm @ 13A, 10V, 7.7mOhm @ 15A, 10V
Gate Charge (Qg) (Max) @ Vgs: 11nC @ 10V, 17.5nC @ 10V
Vgs(th) (Max) @ Id: 2.2V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Obsolete
Produkt ist nicht verfügbar
AOND32324 Alpha & Omega Semiconductor Inc. AOND32324.pdf Description: MOSFET N/P-CH 30V 13A/16A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerSMD, Flat Leads
Mounting Type: Surface Mount
Configuration: N and P-Channel
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 3.5W (Ta), 12.5W (Tc), 4.1W (Ta), 30W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 13A (Ta), 16A (Tc), 15A (Ta), 16A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 760pF @ 15V, 1995pF @ 15V
Rds On (Max) @ Id, Vgs: 14mOhm @ 12A, 10V
Gate Charge (Qg) (Max) @ Vgs: 20nC @ 10V
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Supplier Device Package: 8-DFN (5x6)
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
3000+0.63 EUR
Mindestbestellmenge: 3000
AOND32324 Alpha & Omega Semiconductor Inc. AOND32324.pdf Description: MOSFET N/P-CH 30V 13A/16A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerSMD, Flat Leads
Mounting Type: Surface Mount
Configuration: N and P-Channel
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 3.5W (Ta), 12.5W (Tc), 4.1W (Ta), 30W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 13A (Ta), 16A (Tc), 15A (Ta), 16A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 760pF @ 15V, 1995pF @ 15V
Rds On (Max) @ Id, Vgs: 14mOhm @ 12A, 10V
Gate Charge (Qg) (Max) @ Vgs: 20nC @ 10V
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Supplier Device Package: 8-DFN (5x6)
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
12+1.48 EUR
14+ 1.33 EUR
25+ 1.26 EUR
100+ 1.03 EUR
250+ 0.97 EUR
500+ 0.85 EUR
1000+ 0.67 EUR
Mindestbestellmenge: 12
AONH36334 Alpha & Omega Semiconductor Inc. Description: MOSFET N-CH
Packaging: Bulk
Part Status: Active
Produkt ist nicht verfügbar
AONL32328 AONL32328 Alpha & Omega Semiconductor Inc. Description: MOSFET 2N/2P-CH 30V 8A/7A 12DFN
Packaging: Tape & Reel (TR)
Package / Case: 12-PowerWDFN
Mounting Type: Surface Mount
Configuration: 2 N and 2 P-Channel
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.6W (Ta)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 8A (Ta), 7A (Ta)
Input Capacitance (Ciss) (Max) @ Vds: 395pF @ 15V, 730pF @ 15V
Rds On (Max) @ Id, Vgs: 21mOhm @ 8A, 10V, 27mOhm @ 7A, 10V
Gate Charge (Qg) (Max) @ Vgs: 15nC @ 10V, 24nC @ 10V
Vgs(th) (Max) @ Id: 2.4V @ 250µA, 2.6V @ 250µA
Supplier Device Package: 12-DFN-EP (4x3)
auf Bestellung 6000 Stücke:
Lieferzeit 10-14 Tag (e)
3000+0.53 EUR
6000+ 0.51 EUR
Mindestbestellmenge: 3000
AONL32328 AONL32328 Alpha & Omega Semiconductor Inc. Description: MOSFET 2N/2P-CH 30V 8A/7A 12DFN
Packaging: Cut Tape (CT)
Package / Case: 12-PowerWDFN
Mounting Type: Surface Mount
Configuration: 2 N and 2 P-Channel
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.6W (Ta)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 8A (Ta), 7A (Ta)
Input Capacitance (Ciss) (Max) @ Vds: 395pF @ 15V, 730pF @ 15V
Rds On (Max) @ Id, Vgs: 21mOhm @ 8A, 10V, 27mOhm @ 7A, 10V
Gate Charge (Qg) (Max) @ Vgs: 15nC @ 10V, 24nC @ 10V
Vgs(th) (Max) @ Id: 2.4V @ 250µA, 2.6V @ 250µA
Supplier Device Package: 12-DFN-EP (4x3)
auf Bestellung 10852 Stücke:
Lieferzeit 10-14 Tag (e)
9+2.09 EUR
14+ 1.31 EUR
100+ 0.87 EUR
500+ 0.68 EUR
1000+ 0.62 EUR
Mindestbestellmenge: 9
AONP36320 Alpha & Omega Semiconductor Inc. AONP36320.pdf Description: MOSFET 2N-CH 30V 26A/100A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual) Common Drain
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 3.3W (Ta), 50W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 26A (Ta), 100A (Tc), 27A (Ta), 103A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 1700pF @ 15V, 1650pF @ 15V
Rds On (Max) @ Id, Vgs: 3.2mOhm @ 20A, 10V, 3mOhm @ 20A, 10V
Gate Charge (Qg) (Max) @ Vgs: 40nC @ 10V
Vgs(th) (Max) @ Id: 2.1V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Produkt ist nicht verfügbar
AONP36332 Alpha & Omega Semiconductor Inc. AONP36332.pdf Description: MOSFET 2N-CH 30V 24A/50A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual) Asymmetrical
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 3.4W (Ta), 33W (Tc), 3.1W (Ta), 30W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 24A (Ta), 50A (Tc), 20A (Ta), 50A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 1520pF @ 15V
Rds On (Max) @ Id, Vgs: 3.7mOhm @ 20A, 10V, 4.7mOhm @ 20A, 10V
Gate Charge (Qg) (Max) @ Vgs: 40nC @ 10V, 30nC @ 10V
Vgs(th) (Max) @ Id: 1.9V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Produkt ist nicht verfügbar
AONP36332 Alpha & Omega Semiconductor Inc. AONP36332.pdf Description: MOSFET 2N-CH 30V 24A/50A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual) Asymmetrical
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 3.4W (Ta), 33W (Tc), 3.1W (Ta), 30W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 24A (Ta), 50A (Tc), 20A (Ta), 50A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 1520pF @ 15V
Rds On (Max) @ Id, Vgs: 3.7mOhm @ 20A, 10V, 4.7mOhm @ 20A, 10V
Gate Charge (Qg) (Max) @ Vgs: 40nC @ 10V, 30nC @ 10V
Vgs(th) (Max) @ Id: 1.9V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
auf Bestellung 2990 Stücke:
Lieferzeit 10-14 Tag (e)
10+1.9 EUR
11+ 1.7 EUR
25+ 1.61 EUR
100+ 1.32 EUR
250+ 1.24 EUR
500+ 1.09 EUR
1000+ 0.86 EUR
Mindestbestellmenge: 10
AONP36336 AONP36336 Alpha & Omega Semiconductor Inc. AONP36336.pdf Description: MOSFET 2N-CH 30V 50A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual) Asymmetrical
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 3.4W (Ta), 33W (Tc), 3.1W (Ta), 30W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 50A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 1330pF @ 15V
Rds On (Max) @ Id, Vgs: 4.7mOhm @ 20A, 10V
Gate Charge (Qg) (Max) @ Vgs: 29nC @ 10V
Vgs(th) (Max) @ Id: 1.9V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
auf Bestellung 9000 Stücke:
Lieferzeit 10-14 Tag (e)
3000+0.66 EUR
Mindestbestellmenge: 3000
AONP36336 AONP36336 Alpha & Omega Semiconductor Inc. AONP36336.pdf Description: MOSFET 2N-CH 30V 50A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual) Asymmetrical
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 3.4W (Ta), 33W (Tc), 3.1W (Ta), 30W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 50A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 1330pF @ 15V
Rds On (Max) @ Id, Vgs: 4.7mOhm @ 20A, 10V
Gate Charge (Qg) (Max) @ Vgs: 29nC @ 10V
Vgs(th) (Max) @ Id: 1.9V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
auf Bestellung 14159 Stücke:
Lieferzeit 10-14 Tag (e)
10+1.78 EUR
13+ 1.45 EUR
100+ 1.13 EUR
500+ 0.96 EUR
1000+ 0.78 EUR
Mindestbestellmenge: 10
AONR20485 Alpha & Omega Semiconductor Inc. AONR20485.pdf Description: SINGLE
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 14A (Ta), 34A (Tc)
Rds On (Max) @ Id, Vgs: 15mOhm @ 13A, 10V
Power Dissipation (Max): 5W (Ta), 69W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 60 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 2430 pF @ 20 V
Produkt ist nicht verfügbar
AONR21117 AONR21117 Alpha & Omega Semiconductor Inc. AONR21117.pdf Description: MOSFET P-CH 20V 26.5A/34A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 26.5A (Ta), 34A (Tc)
Rds On (Max) @ Id, Vgs: 4.8mOhm @ 20A, 4.5V
Power Dissipation (Max): 5W (Ta), 43W (Tc)
Vgs(th) (Max) @ Id: 1.1V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
Vgs (Max): ±8V
Drain to Source Voltage (Vdss): 20 V
Gate Charge (Qg) (Max) @ Vgs: 88 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 6560 pF @ 10 V
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
5000+0.57 EUR
Mindestbestellmenge: 5000
AONR21117 AONR21117 Alpha & Omega Semiconductor Inc. AONR21117.pdf Description: MOSFET P-CH 20V 26.5A/34A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 26.5A (Ta), 34A (Tc)
Rds On (Max) @ Id, Vgs: 4.8mOhm @ 20A, 4.5V
Power Dissipation (Max): 5W (Ta), 43W (Tc)
Vgs(th) (Max) @ Id: 1.1V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
Vgs (Max): ±8V
Drain to Source Voltage (Vdss): 20 V
Gate Charge (Qg) (Max) @ Vgs: 88 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 6560 pF @ 10 V
auf Bestellung 9541 Stücke:
Lieferzeit 10-14 Tag (e)
13+1.46 EUR
15+ 1.19 EUR
100+ 0.93 EUR
500+ 0.78 EUR
1000+ 0.64 EUR
2000+ 0.6 EUR
Mindestbestellmenge: 13
AONR21305C Alpha & Omega Semiconductor Inc. AONR21305C.pdf Description: MOSFET P-CH 30V 8DFN
Packaging: Tape & Reel (TR)
Produkt ist nicht verfügbar
AONR21307 AONR21307 Alpha & Omega Semiconductor Inc. AONR21307.pdf Description: MOSFET P-CH 30V 24A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 24A (Tc)
Rds On (Max) @ Id, Vgs: 11mOhm @ 17A, 10V
Power Dissipation (Max): 5W (Ta), 28W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 50 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1995 pF @ 15 V
auf Bestellung 200000 Stücke:
Lieferzeit 10-14 Tag (e)
5000+0.36 EUR
Mindestbestellmenge: 5000
AONR21307 AONR21307 Alpha & Omega Semiconductor Inc. AONR21307.pdf Description: MOSFET P-CH 30V 24A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 24A (Tc)
Rds On (Max) @ Id, Vgs: 11mOhm @ 17A, 10V
Power Dissipation (Max): 5W (Ta), 28W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 50 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1995 pF @ 15 V
auf Bestellung 208204 Stücke:
Lieferzeit 10-14 Tag (e)
24+0.76 EUR
27+ 0.66 EUR
100+ 0.45 EUR
500+ 0.38 EUR
1000+ 0.36 EUR
Mindestbestellmenge: 24
AONR21311C Alpha & Omega Semiconductor Inc. Description: LINEAR IC
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 7A (Ta), 12A (Tc)
Rds On (Max) @ Id, Vgs: 40mOhm @ 7A, 10V
Power Dissipation (Max): 3.1W (Ta), 11W (Tc)
Vgs(th) (Max) @ Id: 2.2V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 23 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 720 pF @ 15 V
Produkt ist nicht verfügbar
AONR21321 AONR21321 Alpha & Omega Semiconductor Inc. AONR21321.pdf Description: MOSFET P-CH 30V 24A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 24A (Tc)
Rds On (Max) @ Id, Vgs: 16.5mOhm @ 12A, 10V
Power Dissipation (Max): 4.1W (Ta), 24W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 34 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1180 pF @ 15 V
auf Bestellung 235892 Stücke:
Lieferzeit 10-14 Tag (e)
25+0.7 EUR
30+ 0.6 EUR
100+ 0.42 EUR
500+ 0.32 EUR
1000+ 0.26 EUR
2000+ 0.24 EUR
Mindestbestellmenge: 25
AONR21321 AONR21321 Alpha & Omega Semiconductor Inc. AONR21321.pdf Description: MOSFET P-CH 30V 24A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 24A (Tc)
Rds On (Max) @ Id, Vgs: 16.5mOhm @ 12A, 10V
Power Dissipation (Max): 4.1W (Ta), 24W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 34 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1180 pF @ 15 V
auf Bestellung 231900 Stücke:
Lieferzeit 10-14 Tag (e)
5000+0.21 EUR
10000+ 0.2 EUR
Mindestbestellmenge: 5000
AONR21321 Alpha & Omega Semiconductor Inc. AONR21321.pdf P-Channel 30 V 24A (Tc) 4.1W (Ta), 24W (Tc) Surface Mount 8-DFN-EP (3x3)
auf Bestellung 12 Stücke:
Lieferzeit 14-21 Tag (e)
1+3.17 EUR
AONR21357 AONR21357 Alpha & Omega Semiconductor Inc. AONR21357.pdf Description: MOSFET P-CH 30V 21A/34A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 21A (Ta), 34A (Tc)
Rds On (Max) @ Id, Vgs: 7.8mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 30W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 70 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 2830 pF @ 15 V
auf Bestellung 10000 Stücke:
Lieferzeit 10-14 Tag (e)
5000+0.38 EUR
10000+ 0.36 EUR
Mindestbestellmenge: 5000
AONR21357 AONR21357 Alpha & Omega Semiconductor Inc. AONR21357.pdf Description: MOSFET P-CH 30V 21A/34A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 21A (Ta), 34A (Tc)
Rds On (Max) @ Id, Vgs: 7.8mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 30W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 70 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 2830 pF @ 15 V
auf Bestellung 14766 Stücke:
Lieferzeit 10-14 Tag (e)
17+1.06 EUR
20+ 0.92 EUR
100+ 0.64 EUR
500+ 0.53 EUR
1000+ 0.45 EUR
2000+ 0.4 EUR
Mindestbestellmenge: 17
AONR26309A Alpha & Omega Semiconductor Inc. AONR26309A.pdf Description: MOSFET N/P-CH 30V 6.5A/14A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Configuration: N and P-Channel, Common Drain (Complementary)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 1.5W (Ta), 7W (Tc), 1.5W (Ta), 20.8W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 6.5A (Ta), 14A (Tc), 5.7A (Ta), 21A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 600pF @ 15V, 1100pF @ 15V
Rds On (Max) @ Id, Vgs: 20mOhm @ 6.5A, 10V, 32mOhm @ 5.7A, 10V
Gate Charge (Qg) (Max) @ Vgs: 20nC @ 10V
Vgs(th) (Max) @ Id: 2.3V @ 250µA, 2.2V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Produkt ist nicht verfügbar
AONR32308C Alpha & Omega Semiconductor Inc. Description: N
Packaging: Tape & Reel (TR)
Produkt ist nicht verfügbar
AONR32314 AONR32314 Alpha & Omega Semiconductor Inc. AONR32314.pdf Description: MOSFET N-CH 30V 17A/30A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-SMD, Flat Lead
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 17A (Ta), 30A (Tc)
Rds On (Max) @ Id, Vgs: 8.7mOhm @ 17A, 10V
Power Dissipation (Max): 4.1W (Ta), 24W (Tc)
Vgs(th) (Max) @ Id: 2.25V @ 250µA
Supplier Device Package: 8-DFN (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 32 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1420 pF @ 15 V
Produkt ist nicht verfügbar
AONR32318 Alpha & Omega Semiconductor Inc. AONR32318.pdf Description: N
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 50A (Tc)
Rds On (Max) @ Id, Vgs: 2.2mOhm @ 20A, 10V
Power Dissipation (Max): 56W (Tc)
Vgs(th) (Max) @ Id: 2.2V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 150 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 6360 pF @ 15 V
Produkt ist nicht verfügbar
AONR32318 Alpha & Omega Semiconductor Inc. AONR32318.pdf Description: N
Packaging: Cut Tape (CT)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 50A (Tc)
Rds On (Max) @ Id, Vgs: 2.2mOhm @ 20A, 10V
Power Dissipation (Max): 56W (Tc)
Vgs(th) (Max) @ Id: 2.2V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 150 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 6360 pF @ 15 V
auf Bestellung 2950 Stücke:
Lieferzeit 10-14 Tag (e)
13+1.37 EUR
15+ 1.22 EUR
25+ 1.15 EUR
100+ 0.95 EUR
250+ 0.89 EUR
500+ 0.78 EUR
1000+ 0.62 EUR
Mindestbestellmenge: 13
AONR32320 Alpha & Omega Semiconductor Inc. Description: MOSFET
Packaging: Tape & Reel (TR)
Current - Continuous Drain (Id) @ 25°C: 12A (Tc)
Produkt ist nicht verfügbar
AONR32320C AONR32320C Alpha & Omega Semiconductor Inc. AONR32320C.pdf Description: MOSFET N-CH 30V 9.5A/12A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 9.5A (Ta), 12A (Tc)
Rds On (Max) @ Id, Vgs: 21mOhm @ 9.5A, 10V
Power Dissipation (Max): 3.1W (Ta), 11W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 650 pF @ 15 V
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
5000+0.18 EUR
Mindestbestellmenge: 5000
AONR32320C AONR32320C Alpha & Omega Semiconductor Inc. AONR32320C.pdf Description: MOSFET N-CH 30V 9.5A/12A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 9.5A (Ta), 12A (Tc)
Rds On (Max) @ Id, Vgs: 21mOhm @ 9.5A, 10V
Power Dissipation (Max): 3.1W (Ta), 11W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 650 pF @ 15 V
auf Bestellung 8976 Stücke:
Lieferzeit 10-14 Tag (e)
26+0.69 EUR
33+ 0.54 EUR
100+ 0.32 EUR
500+ 0.3 EUR
1000+ 0.2 EUR
2000+ 0.19 EUR
Mindestbestellmenge: 26
AONR34332C AONR34332C Alpha & Omega Semiconductor Inc. AONR34332C.pdf Description: MOSFET N-CH 30V 48A/50A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 48A (Ta), 50A (Tc)
Rds On (Max) @ Id, Vgs: 1.8mOhm @ 20A, 10V
Power Dissipation (Max): 6.2W (Ta), 83.3W (Tc)
Vgs(th) (Max) @ Id: 1.2V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Drive Voltage (Max Rds On, Min Rds On): 2.5V, 10V
Vgs (Max): ±12V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 105 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 4175 pF @ 15 V
Produkt ist nicht verfügbar
AONR36326C AONR36326C Alpha & Omega Semiconductor Inc. AONR36326C.pdf Description: MOSFET N-CH 30V 12A/12A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 12A (Ta), 12A (Tc)
Rds On (Max) @ Id, Vgs: 9.8mOhm @ 12A, 10V
Power Dissipation (Max): 3.1W (Ta), 20.5W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 15 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 540 pF @ 15 V
Produkt ist nicht verfügbar
AONR36328 Alpha & Omega Semiconductor Inc. AONR36328.pdf Description: N
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 15A (Ta), 20A (Tc)
Rds On (Max) @ Id, Vgs: 8.4mOhm @ 20A, 10V
Power Dissipation (Max): 3.1W (Ta), 24W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±16V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 700 pF @ 15 V
Produkt ist nicht verfügbar
AONR36366 AONR36366 Alpha & Omega Semiconductor Inc. AONR36366.pdf Description: MOSFET N-CH 30V 30A/34A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 30A (Ta), 34A (Tc)
Rds On (Max) @ Id, Vgs: 3.5mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 28W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 35 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1835 pF @ 15 V
auf Bestellung 20000 Stücke:
Lieferzeit 10-14 Tag (e)
5000+0.31 EUR
10000+ 0.29 EUR
Mindestbestellmenge: 5000
AONR36366 AONR36366 Alpha & Omega Semiconductor Inc. AONR36366.pdf Description: MOSFET N-CH 30V 30A/34A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 30A (Ta), 34A (Tc)
Rds On (Max) @ Id, Vgs: 3.5mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 28W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 35 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1835 pF @ 15 V
auf Bestellung 23281 Stücke:
Lieferzeit 10-14 Tag (e)
18+0.99 EUR
22+ 0.84 EUR
100+ 0.58 EUR
500+ 0.45 EUR
1000+ 0.37 EUR
2000+ 0.33 EUR
Mindestbestellmenge: 18
AONR36368 AONR36368 Alpha & Omega Semiconductor Inc. AONR36368.pdf Description: MOSFET N-CH 30V 23A/32A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 23A (Ta), 32A (Tc)
Rds On (Max) @ Id, Vgs: 5mOhm @ 20A, 10V
Power Dissipation (Max): 4.1W (Ta), 24W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1305 pF @ 15 V
Produkt ist nicht verfügbar
AONR36368 AONR36368 Alpha & Omega Semiconductor Inc. AONR36368.pdf Description: MOSFET N-CH 30V 23A/32A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 23A (Ta), 32A (Tc)
Rds On (Max) @ Id, Vgs: 5mOhm @ 20A, 10V
Power Dissipation (Max): 4.1W (Ta), 24W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1305 pF @ 15 V
auf Bestellung 4083 Stücke:
Lieferzeit 10-14 Tag (e)
23+0.79 EUR
26+ 0.68 EUR
100+ 0.47 EUR
500+ 0.37 EUR
1000+ 0.3 EUR
2000+ 0.27 EUR
Mindestbestellmenge: 23
AONR62818 Alpha & Omega Semiconductor Inc. AONR62818.pdf Description: N
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 18A (Ta), 50A (Tc)
Rds On (Max) @ Id, Vgs: 6.6mOhm @ 18A, 10V
Power Dissipation (Max): 4.1W (Ta), 54W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 80 V
Gate Charge (Qg) (Max) @ Vgs: 48 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 2420 pF @ 40 V
Produkt ist nicht verfügbar
AONR62921 Alpha & Omega Semiconductor Inc. AONR62921.pdf Description: 100V N CHAN FET SMD
Packaging: Cut Tape (CT)
Produkt ist nicht verfügbar
AONR62921 Alpha & Omega Semiconductor Inc. AONR62921.pdf Description: 100V N CHAN FET SMD
Packaging: Tape & Reel (TR)
Produkt ist nicht verfügbar
AONR62992 AONR62992 Alpha & Omega Semiconductor Inc. AONR62992_Rev.1.0_Rohs.pdf Description: 100V N-CHANNEL MOSFET
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
3000+0.82 EUR
Mindestbestellmenge: 3000
AONR66406 AONR66406 Alpha & Omega Semiconductor Inc. AONR66406.pdf Description: MOSFET N-CH 40V 22A/30A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 22A (Ta), 30A (Tc)
Rds On (Max) @ Id, Vgs: 6.1mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 27W (Tc)
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 30 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1480 pF @ 20 V
Produkt ist nicht verfügbar
AONR66620 Alpha & Omega Semiconductor Inc. AONR62818.pdf Description: N
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 17.5A (Ta), 24A (Tc)
Rds On (Max) @ Id, Vgs: 9.1mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 27W (Tc)
Vgs(th) (Max) @ Id: 3.6V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 8V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1070 pF @ 30 V
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
5000+0.56 EUR
Mindestbestellmenge: 5000
AONR66620 Alpha & Omega Semiconductor Inc. AONR62818.pdf Description: N
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 17.5A (Ta), 24A (Tc)
Rds On (Max) @ Id, Vgs: 9.1mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 27W (Tc)
Vgs(th) (Max) @ Id: 3.6V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 8V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1070 pF @ 30 V
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
13+1.37 EUR
15+ 1.24 EUR
25+ 1.17 EUR
100+ 0.97 EUR
250+ 0.9 EUR
500+ 0.8 EUR
1000+ 0.63 EUR
2500+ 0.59 EUR
Mindestbestellmenge: 13
AONR66820 Alpha & Omega Semiconductor Inc. AONR66820.pdf Description: N
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 17A (Ta), 50A (Tc)
Rds On (Max) @ Id, Vgs: 8.8mOhm @ 17A, 8V
Power Dissipation (Max): 4.1W (Ta), 104W (Tc)
Vgs(th) (Max) @ Id: 4.1V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Drive Voltage (Max Rds On, Min Rds On): 8V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 80 V
Gate Charge (Qg) (Max) @ Vgs: 50 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1950 pF @ 40 V
Produkt ist nicht verfügbar
AONR66922 AONR66922 Alpha & Omega Semiconductor Inc. AONR66922.pdf Description: MOSFET N-CH 100V 15A/50A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 15A (Ta), 50A (Tc)
Rds On (Max) @ Id, Vgs: 9mOhm @ 15A, 10V
Power Dissipation (Max): 4.1W (Ta), 52W (Tc)
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 46 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 2180 pF @ 50 V
auf Bestellung 4362 Stücke:
Lieferzeit 10-14 Tag (e)
8+2.24 EUR
10+ 1.83 EUR
100+ 1.43 EUR
500+ 1.21 EUR
1000+ 0.98 EUR
Mindestbestellmenge: 8
AONR66922 AONR66922 Alpha & Omega Semiconductor Inc. AONR66922.pdf Description: MOSFET N-CH 100V 15A/50A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 15A (Ta), 50A (Tc)
Rds On (Max) @ Id, Vgs: 9mOhm @ 15A, 10V
Power Dissipation (Max): 4.1W (Ta), 52W (Tc)
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 46 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 2180 pF @ 50 V
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
3000+0.93 EUR
Mindestbestellmenge: 3000
AONR66924 Alpha & Omega Semiconductor Inc. AONR66924.pdf Description: N
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 13A (Ta), 32A (Tc)
Rds On (Max) @ Id, Vgs: 13.5mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 30W (Tc)
Vgs(th) (Max) @ Id: 2.6V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 40 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1450 pF @ 50 V
auf Bestellung 4990 Stücke:
Lieferzeit 10-14 Tag (e)
14+1.28 EUR
16+ 1.13 EUR
25+ 1.06 EUR
100+ 0.86 EUR
250+ 0.8 EUR
500+ 0.68 EUR
1000+ 0.55 EUR
2500+ 0.5 EUR
Mindestbestellmenge: 14
AONR66924 Alpha & Omega Semiconductor Inc. AONR66924.pdf Description: N
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 13A (Ta), 32A (Tc)
Rds On (Max) @ Id, Vgs: 13.5mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 30W (Tc)
Vgs(th) (Max) @ Id: 2.6V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 40 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1450 pF @ 50 V
Produkt ist nicht verfügbar
AONS1R6A70 Alpha & Omega Semiconductor Inc. AONS1R1A70.pdf Description: MOSFET N-CH 700V 1.1A/4.6A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 1.1A (Ta), 4.6A (Tc)
Rds On (Max) @ Id, Vgs: 1.6Ohm @ 1A, 10V
Power Dissipation (Max): 4.1W (Ta), 78W (Tc)
Vgs(th) (Max) @ Id: 3.5V @ 250µA
Supplier Device Package: 8-DFN-EP (5x6)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±30V
Drain to Source Voltage (Vdss): 700 V
Gate Charge (Qg) (Max) @ Vgs: 8 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 354 pF @ 100 V
Produkt ist nicht verfügbar
AONS1R6A70 Alpha & Omega Semiconductor Inc. AONS1R1A70.pdf Description: MOSFET N-CH 700V 1.1A/4.6A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 1.1A (Ta), 4.6A (Tc)
Rds On (Max) @ Id, Vgs: 1.6Ohm @ 1A, 10V
Power Dissipation (Max): 4.1W (Ta), 78W (Tc)
Vgs(th) (Max) @ Id: 3.5V @ 250µA
Supplier Device Package: 8-DFN-EP (5x6)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±30V
Drain to Source Voltage (Vdss): 700 V
Gate Charge (Qg) (Max) @ Vgs: 8 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 354 pF @ 100 V
auf Bestellung 2507 Stücke:
Lieferzeit 10-14 Tag (e)
9+2.11 EUR
11+ 1.72 EUR
100+ 1.34 EUR
500+ 1.14 EUR
1000+ 0.93 EUR
Mindestbestellmenge: 9
AONS21113 Alpha & Omega Semiconductor Inc. AONS21113.pdf Description: P
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerSMD, Flat Leads
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 44A (Ta), 70A (Tc)
Rds On (Max) @ Id, Vgs: 2.2mOhm @ 20A, 10V
Power Dissipation (Max): 6.2W (Ta), 138W (Tc)
Vgs(th) (Max) @ Id: 1.1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 2.5V, 10V
Vgs (Max): ±12V
Drain to Source Voltage (Vdss): 20 V
Gate Charge (Qg) (Max) @ Vgs: 550 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 18700 pF @ 10 V
Produkt ist nicht verfügbar
AON7902 AOSGreenPolicy.pdf
AON7902
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET 2N-CH 30V 8A/13A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Half Bridge)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 1.8W
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 8A, 13A
Input Capacitance (Ciss) (Max) @ Vds: 710pF @ 15V
Rds On (Max) @ Id, Vgs: 21mOhm @ 8A, 10V
Gate Charge (Qg) (Max) @ Vgs: 11nC @ 10V
FET Feature: Logic Level Gate
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Produkt ist nicht verfügbar
AON7932 AOSGreenPolicy.pdf
AON7932
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET 2N-CH 30V 6.6A/8.1A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-WDFN Exposed Pad
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Half Bridge)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 1.4W
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 6.6A, 8.1A
Input Capacitance (Ciss) (Max) @ Vds: 460pF @ 15V
Rds On (Max) @ Id, Vgs: 20mOhm @ 6.6A, 10V
Gate Charge (Qg) (Max) @ Vgs: 6.5nC @ 10V
FET Feature: Logic Level Gate
Vgs(th) (Max) @ Id: 2.4V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Produkt ist nicht verfügbar
AON7932 AOSGreenPolicy.pdf
AON7932
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET 2N-CH 30V 6.6A/8.1A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-WDFN Exposed Pad
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Half Bridge)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 1.4W
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 6.6A, 8.1A
Input Capacitance (Ciss) (Max) @ Vds: 460pF @ 15V
Rds On (Max) @ Id, Vgs: 20mOhm @ 6.6A, 10V
Gate Charge (Qg) (Max) @ Vgs: 6.5nC @ 10V
FET Feature: Logic Level Gate
Vgs(th) (Max) @ Id: 2.4V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Produkt ist nicht verfügbar
AON7932_101 AON7932.pdf
AON7932_101
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET 2N-CH 30V 6.6A/8.1A 8DFN
Packaging: Bulk
Package / Case: 8-WDFN Exposed Pad
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Half Bridge)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 1.4W
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 6.6A, 8.1A
Input Capacitance (Ciss) (Max) @ Vds: 460pF @ 15V
Rds On (Max) @ Id, Vgs: 20mOhm @ 6.6A, 10V
Gate Charge (Qg) (Max) @ Vgs: 6.5nC @ 10V
FET Feature: Logic Level Gate
Vgs(th) (Max) @ Id: 2.4V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Produkt ist nicht verfügbar
AON7934 AON7934.pdf
AON7934
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET 2N-CH 30V 13A/15A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-WDFN Exposed Pad
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.5W
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 13A, 15A
Input Capacitance (Ciss) (Max) @ Vds: 485pF @ 15V
Rds On (Max) @ Id, Vgs: 10.2mOhm @ 13A, 10V
Gate Charge (Qg) (Max) @ Vgs: 11nC @ 10V
FET Feature: Logic Level Gate
Vgs(th) (Max) @ Id: 2.2V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
5000+0.59 EUR
Mindestbestellmenge: 5000
AON7934 AON7934.pdf
AON7934
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET 2N-CH 30V 13A/15A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-WDFN Exposed Pad
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.5W
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 13A, 15A
Input Capacitance (Ciss) (Max) @ Vds: 485pF @ 15V
Rds On (Max) @ Id, Vgs: 10.2mOhm @ 13A, 10V
Gate Charge (Qg) (Max) @ Vgs: 11nC @ 10V
FET Feature: Logic Level Gate
Vgs(th) (Max) @ Id: 2.2V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
auf Bestellung 8130 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
12+1.5 EUR
15+ 1.22 EUR
100+ 0.95 EUR
500+ 0.81 EUR
1000+ 0.66 EUR
2000+ 0.62 EUR
Mindestbestellmenge: 12
AON7934_101 AON7934_Apr2012_DS.pdf
AON7934_101
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET 2N-CH 30V 13A/16A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-WDFN Exposed Pad
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.5W (Ta), 23W (Tc), 2.5W (Ta), 25W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 13A (Ta), 16A (Tc), 15A (Ta), 18A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 485pF @ 15V, 807pF @ 15V
Rds On (Max) @ Id, Vgs: 10.2mOhm @ 13A, 10V, 7.7mOhm @ 15A, 10V
Gate Charge (Qg) (Max) @ Vgs: 11nC @ 10V, 17.5nC @ 10V
Vgs(th) (Max) @ Id: 2.2V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Obsolete
Produkt ist nicht verfügbar
AON7934_102 AON7934_Apr2012_DS.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET 2N-CH 30V 13A/16A 8DFN
Packaging: Bulk
Package / Case: 8-WDFN Exposed Pad
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual) Asymmetrical
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.5W (Ta), 23W (Tc), 2.5W (Ta), 25W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 13A (Ta), 16A (Tc), 15A (Ta), 18A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 485pF @ 15V, 807pF @ 15V
Rds On (Max) @ Id, Vgs: 10.2mOhm @ 13A, 10V, 7.7mOhm @ 15A, 10V
Gate Charge (Qg) (Max) @ Vgs: 11nC @ 10V, 17.5nC @ 10V
Vgs(th) (Max) @ Id: 2.2V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Obsolete
Produkt ist nicht verfügbar
AOND32324 AOND32324.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N/P-CH 30V 13A/16A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerSMD, Flat Leads
Mounting Type: Surface Mount
Configuration: N and P-Channel
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 3.5W (Ta), 12.5W (Tc), 4.1W (Ta), 30W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 13A (Ta), 16A (Tc), 15A (Ta), 16A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 760pF @ 15V, 1995pF @ 15V
Rds On (Max) @ Id, Vgs: 14mOhm @ 12A, 10V
Gate Charge (Qg) (Max) @ Vgs: 20nC @ 10V
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Supplier Device Package: 8-DFN (5x6)
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
3000+0.63 EUR
Mindestbestellmenge: 3000
AOND32324 AOND32324.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N/P-CH 30V 13A/16A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerSMD, Flat Leads
Mounting Type: Surface Mount
Configuration: N and P-Channel
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 3.5W (Ta), 12.5W (Tc), 4.1W (Ta), 30W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 13A (Ta), 16A (Tc), 15A (Ta), 16A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 760pF @ 15V, 1995pF @ 15V
Rds On (Max) @ Id, Vgs: 14mOhm @ 12A, 10V
Gate Charge (Qg) (Max) @ Vgs: 20nC @ 10V
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Supplier Device Package: 8-DFN (5x6)
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
12+1.48 EUR
14+ 1.33 EUR
25+ 1.26 EUR
100+ 1.03 EUR
250+ 0.97 EUR
500+ 0.85 EUR
1000+ 0.67 EUR
Mindestbestellmenge: 12
AONH36334
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH
Packaging: Bulk
Part Status: Active
Produkt ist nicht verfügbar
AONL32328
AONL32328
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET 2N/2P-CH 30V 8A/7A 12DFN
Packaging: Tape & Reel (TR)
Package / Case: 12-PowerWDFN
Mounting Type: Surface Mount
Configuration: 2 N and 2 P-Channel
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.6W (Ta)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 8A (Ta), 7A (Ta)
Input Capacitance (Ciss) (Max) @ Vds: 395pF @ 15V, 730pF @ 15V
Rds On (Max) @ Id, Vgs: 21mOhm @ 8A, 10V, 27mOhm @ 7A, 10V
Gate Charge (Qg) (Max) @ Vgs: 15nC @ 10V, 24nC @ 10V
Vgs(th) (Max) @ Id: 2.4V @ 250µA, 2.6V @ 250µA
Supplier Device Package: 12-DFN-EP (4x3)
auf Bestellung 6000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
3000+0.53 EUR
6000+ 0.51 EUR
Mindestbestellmenge: 3000
AONL32328
AONL32328
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET 2N/2P-CH 30V 8A/7A 12DFN
Packaging: Cut Tape (CT)
Package / Case: 12-PowerWDFN
Mounting Type: Surface Mount
Configuration: 2 N and 2 P-Channel
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 2.6W (Ta)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 8A (Ta), 7A (Ta)
Input Capacitance (Ciss) (Max) @ Vds: 395pF @ 15V, 730pF @ 15V
Rds On (Max) @ Id, Vgs: 21mOhm @ 8A, 10V, 27mOhm @ 7A, 10V
Gate Charge (Qg) (Max) @ Vgs: 15nC @ 10V, 24nC @ 10V
Vgs(th) (Max) @ Id: 2.4V @ 250µA, 2.6V @ 250µA
Supplier Device Package: 12-DFN-EP (4x3)
auf Bestellung 10852 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
9+2.09 EUR
14+ 1.31 EUR
100+ 0.87 EUR
500+ 0.68 EUR
1000+ 0.62 EUR
Mindestbestellmenge: 9
AONP36320 AONP36320.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET 2N-CH 30V 26A/100A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual) Common Drain
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 3.3W (Ta), 50W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 26A (Ta), 100A (Tc), 27A (Ta), 103A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 1700pF @ 15V, 1650pF @ 15V
Rds On (Max) @ Id, Vgs: 3.2mOhm @ 20A, 10V, 3mOhm @ 20A, 10V
Gate Charge (Qg) (Max) @ Vgs: 40nC @ 10V
Vgs(th) (Max) @ Id: 2.1V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Produkt ist nicht verfügbar
AONP36332 AONP36332.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET 2N-CH 30V 24A/50A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual) Asymmetrical
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 3.4W (Ta), 33W (Tc), 3.1W (Ta), 30W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 24A (Ta), 50A (Tc), 20A (Ta), 50A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 1520pF @ 15V
Rds On (Max) @ Id, Vgs: 3.7mOhm @ 20A, 10V, 4.7mOhm @ 20A, 10V
Gate Charge (Qg) (Max) @ Vgs: 40nC @ 10V, 30nC @ 10V
Vgs(th) (Max) @ Id: 1.9V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Produkt ist nicht verfügbar
AONP36332 AONP36332.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET 2N-CH 30V 24A/50A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual) Asymmetrical
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 3.4W (Ta), 33W (Tc), 3.1W (Ta), 30W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 24A (Ta), 50A (Tc), 20A (Ta), 50A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 1520pF @ 15V
Rds On (Max) @ Id, Vgs: 3.7mOhm @ 20A, 10V, 4.7mOhm @ 20A, 10V
Gate Charge (Qg) (Max) @ Vgs: 40nC @ 10V, 30nC @ 10V
Vgs(th) (Max) @ Id: 1.9V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
auf Bestellung 2990 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
10+1.9 EUR
11+ 1.7 EUR
25+ 1.61 EUR
100+ 1.32 EUR
250+ 1.24 EUR
500+ 1.09 EUR
1000+ 0.86 EUR
Mindestbestellmenge: 10
AONP36336 AONP36336.pdf
AONP36336
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET 2N-CH 30V 50A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual) Asymmetrical
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 3.4W (Ta), 33W (Tc), 3.1W (Ta), 30W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 50A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 1330pF @ 15V
Rds On (Max) @ Id, Vgs: 4.7mOhm @ 20A, 10V
Gate Charge (Qg) (Max) @ Vgs: 29nC @ 10V
Vgs(th) (Max) @ Id: 1.9V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
auf Bestellung 9000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
3000+0.66 EUR
Mindestbestellmenge: 3000
AONP36336 AONP36336.pdf
AONP36336
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET 2N-CH 30V 50A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Configuration: 2 N-Channel (Dual) Asymmetrical
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 3.4W (Ta), 33W (Tc), 3.1W (Ta), 30W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 50A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 1330pF @ 15V
Rds On (Max) @ Id, Vgs: 4.7mOhm @ 20A, 10V
Gate Charge (Qg) (Max) @ Vgs: 29nC @ 10V
Vgs(th) (Max) @ Id: 1.9V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
auf Bestellung 14159 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
10+1.78 EUR
13+ 1.45 EUR
100+ 1.13 EUR
500+ 0.96 EUR
1000+ 0.78 EUR
Mindestbestellmenge: 10
AONR20485 AONR20485.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: SINGLE
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 14A (Ta), 34A (Tc)
Rds On (Max) @ Id, Vgs: 15mOhm @ 13A, 10V
Power Dissipation (Max): 5W (Ta), 69W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 60 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 2430 pF @ 20 V
Produkt ist nicht verfügbar
AONR21117 AONR21117.pdf
AONR21117
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET P-CH 20V 26.5A/34A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 26.5A (Ta), 34A (Tc)
Rds On (Max) @ Id, Vgs: 4.8mOhm @ 20A, 4.5V
Power Dissipation (Max): 5W (Ta), 43W (Tc)
Vgs(th) (Max) @ Id: 1.1V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
Vgs (Max): ±8V
Drain to Source Voltage (Vdss): 20 V
Gate Charge (Qg) (Max) @ Vgs: 88 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 6560 pF @ 10 V
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
5000+0.57 EUR
Mindestbestellmenge: 5000
AONR21117 AONR21117.pdf
AONR21117
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET P-CH 20V 26.5A/34A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 26.5A (Ta), 34A (Tc)
Rds On (Max) @ Id, Vgs: 4.8mOhm @ 20A, 4.5V
Power Dissipation (Max): 5W (Ta), 43W (Tc)
Vgs(th) (Max) @ Id: 1.1V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
Vgs (Max): ±8V
Drain to Source Voltage (Vdss): 20 V
Gate Charge (Qg) (Max) @ Vgs: 88 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 6560 pF @ 10 V
auf Bestellung 9541 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
13+1.46 EUR
15+ 1.19 EUR
100+ 0.93 EUR
500+ 0.78 EUR
1000+ 0.64 EUR
2000+ 0.6 EUR
Mindestbestellmenge: 13
AONR21305C AONR21305C.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET P-CH 30V 8DFN
Packaging: Tape & Reel (TR)
Produkt ist nicht verfügbar
AONR21307 AONR21307.pdf
AONR21307
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET P-CH 30V 24A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 24A (Tc)
Rds On (Max) @ Id, Vgs: 11mOhm @ 17A, 10V
Power Dissipation (Max): 5W (Ta), 28W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 50 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1995 pF @ 15 V
auf Bestellung 200000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
5000+0.36 EUR
Mindestbestellmenge: 5000
AONR21307 AONR21307.pdf
AONR21307
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET P-CH 30V 24A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 24A (Tc)
Rds On (Max) @ Id, Vgs: 11mOhm @ 17A, 10V
Power Dissipation (Max): 5W (Ta), 28W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 50 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1995 pF @ 15 V
auf Bestellung 208204 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
24+0.76 EUR
27+ 0.66 EUR
100+ 0.45 EUR
500+ 0.38 EUR
1000+ 0.36 EUR
Mindestbestellmenge: 24
AONR21311C
Hersteller: Alpha & Omega Semiconductor Inc.
Description: LINEAR IC
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 7A (Ta), 12A (Tc)
Rds On (Max) @ Id, Vgs: 40mOhm @ 7A, 10V
Power Dissipation (Max): 3.1W (Ta), 11W (Tc)
Vgs(th) (Max) @ Id: 2.2V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 23 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 720 pF @ 15 V
Produkt ist nicht verfügbar
AONR21321 AONR21321.pdf
AONR21321
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET P-CH 30V 24A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 24A (Tc)
Rds On (Max) @ Id, Vgs: 16.5mOhm @ 12A, 10V
Power Dissipation (Max): 4.1W (Ta), 24W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 34 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1180 pF @ 15 V
auf Bestellung 235892 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
25+0.7 EUR
30+ 0.6 EUR
100+ 0.42 EUR
500+ 0.32 EUR
1000+ 0.26 EUR
2000+ 0.24 EUR
Mindestbestellmenge: 25
AONR21321 AONR21321.pdf
AONR21321
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET P-CH 30V 24A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 24A (Tc)
Rds On (Max) @ Id, Vgs: 16.5mOhm @ 12A, 10V
Power Dissipation (Max): 4.1W (Ta), 24W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 34 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1180 pF @ 15 V
auf Bestellung 231900 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
5000+0.21 EUR
10000+ 0.2 EUR
Mindestbestellmenge: 5000
AONR21321 AONR21321.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
P-Channel 30 V 24A (Tc) 4.1W (Ta), 24W (Tc) Surface Mount 8-DFN-EP (3x3)
auf Bestellung 12 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis ohne MwSt
1+3.17 EUR
AONR21357 AONR21357.pdf
AONR21357
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET P-CH 30V 21A/34A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 21A (Ta), 34A (Tc)
Rds On (Max) @ Id, Vgs: 7.8mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 30W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 70 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 2830 pF @ 15 V
auf Bestellung 10000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
5000+0.38 EUR
10000+ 0.36 EUR
Mindestbestellmenge: 5000
AONR21357 AONR21357.pdf
AONR21357
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET P-CH 30V 21A/34A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 21A (Ta), 34A (Tc)
Rds On (Max) @ Id, Vgs: 7.8mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 30W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±25V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 70 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 2830 pF @ 15 V
auf Bestellung 14766 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
17+1.06 EUR
20+ 0.92 EUR
100+ 0.64 EUR
500+ 0.53 EUR
1000+ 0.45 EUR
2000+ 0.4 EUR
Mindestbestellmenge: 17
AONR26309A AONR26309A.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N/P-CH 30V 6.5A/14A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Configuration: N and P-Channel, Common Drain (Complementary)
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Power - Max: 1.5W (Ta), 7W (Tc), 1.5W (Ta), 20.8W (Tc)
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 6.5A (Ta), 14A (Tc), 5.7A (Ta), 21A (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 600pF @ 15V, 1100pF @ 15V
Rds On (Max) @ Id, Vgs: 20mOhm @ 6.5A, 10V, 32mOhm @ 5.7A, 10V
Gate Charge (Qg) (Max) @ Vgs: 20nC @ 10V
Vgs(th) (Max) @ Id: 2.3V @ 250µA, 2.2V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Produkt ist nicht verfügbar
AONR32308C
Hersteller: Alpha & Omega Semiconductor Inc.
Description: N
Packaging: Tape & Reel (TR)
Produkt ist nicht verfügbar
AONR32314 AONR32314.pdf
AONR32314
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 30V 17A/30A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-SMD, Flat Lead
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 17A (Ta), 30A (Tc)
Rds On (Max) @ Id, Vgs: 8.7mOhm @ 17A, 10V
Power Dissipation (Max): 4.1W (Ta), 24W (Tc)
Vgs(th) (Max) @ Id: 2.25V @ 250µA
Supplier Device Package: 8-DFN (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 32 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1420 pF @ 15 V
Produkt ist nicht verfügbar
AONR32318 AONR32318.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: N
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 50A (Tc)
Rds On (Max) @ Id, Vgs: 2.2mOhm @ 20A, 10V
Power Dissipation (Max): 56W (Tc)
Vgs(th) (Max) @ Id: 2.2V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 150 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 6360 pF @ 15 V
Produkt ist nicht verfügbar
AONR32318 AONR32318.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: N
Packaging: Cut Tape (CT)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 50A (Tc)
Rds On (Max) @ Id, Vgs: 2.2mOhm @ 20A, 10V
Power Dissipation (Max): 56W (Tc)
Vgs(th) (Max) @ Id: 2.2V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 150 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 6360 pF @ 15 V
auf Bestellung 2950 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
13+1.37 EUR
15+ 1.22 EUR
25+ 1.15 EUR
100+ 0.95 EUR
250+ 0.89 EUR
500+ 0.78 EUR
1000+ 0.62 EUR
Mindestbestellmenge: 13
AONR32320
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET
Packaging: Tape & Reel (TR)
Current - Continuous Drain (Id) @ 25°C: 12A (Tc)
Produkt ist nicht verfügbar
AONR32320C AONR32320C.pdf
AONR32320C
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 30V 9.5A/12A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 9.5A (Ta), 12A (Tc)
Rds On (Max) @ Id, Vgs: 21mOhm @ 9.5A, 10V
Power Dissipation (Max): 3.1W (Ta), 11W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 650 pF @ 15 V
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
5000+0.18 EUR
Mindestbestellmenge: 5000
AONR32320C AONR32320C.pdf
AONR32320C
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 30V 9.5A/12A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 9.5A (Ta), 12A (Tc)
Rds On (Max) @ Id, Vgs: 21mOhm @ 9.5A, 10V
Power Dissipation (Max): 3.1W (Ta), 11W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 650 pF @ 15 V
auf Bestellung 8976 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
26+0.69 EUR
33+ 0.54 EUR
100+ 0.32 EUR
500+ 0.3 EUR
1000+ 0.2 EUR
2000+ 0.19 EUR
Mindestbestellmenge: 26
AONR34332C AONR34332C.pdf
AONR34332C
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 30V 48A/50A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 48A (Ta), 50A (Tc)
Rds On (Max) @ Id, Vgs: 1.8mOhm @ 20A, 10V
Power Dissipation (Max): 6.2W (Ta), 83.3W (Tc)
Vgs(th) (Max) @ Id: 1.2V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Drive Voltage (Max Rds On, Min Rds On): 2.5V, 10V
Vgs (Max): ±12V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 105 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 4175 pF @ 15 V
Produkt ist nicht verfügbar
AONR36326C AONR36326C.pdf
AONR36326C
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 30V 12A/12A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 12A (Ta), 12A (Tc)
Rds On (Max) @ Id, Vgs: 9.8mOhm @ 12A, 10V
Power Dissipation (Max): 3.1W (Ta), 20.5W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 15 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 540 pF @ 15 V
Produkt ist nicht verfügbar
AONR36328 AONR36328.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: N
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 15A (Ta), 20A (Tc)
Rds On (Max) @ Id, Vgs: 8.4mOhm @ 20A, 10V
Power Dissipation (Max): 3.1W (Ta), 24W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±16V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 700 pF @ 15 V
Produkt ist nicht verfügbar
AONR36366 AONR36366.pdf
AONR36366
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 30V 30A/34A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 30A (Ta), 34A (Tc)
Rds On (Max) @ Id, Vgs: 3.5mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 28W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 35 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1835 pF @ 15 V
auf Bestellung 20000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
5000+0.31 EUR
10000+ 0.29 EUR
Mindestbestellmenge: 5000
AONR36366 AONR36366.pdf
AONR36366
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 30V 30A/34A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 30A (Ta), 34A (Tc)
Rds On (Max) @ Id, Vgs: 3.5mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 28W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 35 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1835 pF @ 15 V
auf Bestellung 23281 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
18+0.99 EUR
22+ 0.84 EUR
100+ 0.58 EUR
500+ 0.45 EUR
1000+ 0.37 EUR
2000+ 0.33 EUR
Mindestbestellmenge: 18
AONR36368 AONR36368.pdf
AONR36368
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 30V 23A/32A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 23A (Ta), 32A (Tc)
Rds On (Max) @ Id, Vgs: 5mOhm @ 20A, 10V
Power Dissipation (Max): 4.1W (Ta), 24W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1305 pF @ 15 V
Produkt ist nicht verfügbar
AONR36368 AONR36368.pdf
AONR36368
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 30V 23A/32A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 23A (Ta), 32A (Tc)
Rds On (Max) @ Id, Vgs: 5mOhm @ 20A, 10V
Power Dissipation (Max): 4.1W (Ta), 24W (Tc)
Vgs(th) (Max) @ Id: 2.1V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1305 pF @ 15 V
auf Bestellung 4083 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
23+0.79 EUR
26+ 0.68 EUR
100+ 0.47 EUR
500+ 0.37 EUR
1000+ 0.3 EUR
2000+ 0.27 EUR
Mindestbestellmenge: 23
AONR62818 AONR62818.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: N
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 18A (Ta), 50A (Tc)
Rds On (Max) @ Id, Vgs: 6.6mOhm @ 18A, 10V
Power Dissipation (Max): 4.1W (Ta), 54W (Tc)
Vgs(th) (Max) @ Id: 2.3V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 80 V
Gate Charge (Qg) (Max) @ Vgs: 48 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 2420 pF @ 40 V
Produkt ist nicht verfügbar
AONR62921 AONR62921.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: 100V N CHAN FET SMD
Packaging: Cut Tape (CT)
Produkt ist nicht verfügbar
AONR62921 AONR62921.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: 100V N CHAN FET SMD
Packaging: Tape & Reel (TR)
Produkt ist nicht verfügbar
AONR62992 AONR62992_Rev.1.0_Rohs.pdf
AONR62992
Hersteller: Alpha & Omega Semiconductor Inc.
Description: 100V N-CHANNEL MOSFET
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
3000+0.82 EUR
Mindestbestellmenge: 3000
AONR66406 AONR66406.pdf
AONR66406
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 40V 22A/30A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 22A (Ta), 30A (Tc)
Rds On (Max) @ Id, Vgs: 6.1mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 27W (Tc)
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 30 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1480 pF @ 20 V
Produkt ist nicht verfügbar
AONR66620 AONR62818.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: N
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 17.5A (Ta), 24A (Tc)
Rds On (Max) @ Id, Vgs: 9.1mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 27W (Tc)
Vgs(th) (Max) @ Id: 3.6V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 8V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1070 pF @ 30 V
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
5000+0.56 EUR
Mindestbestellmenge: 5000
AONR66620 AONR62818.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: N
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 17.5A (Ta), 24A (Tc)
Rds On (Max) @ Id, Vgs: 9.1mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 27W (Tc)
Vgs(th) (Max) @ Id: 3.6V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 8V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1070 pF @ 30 V
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
13+1.37 EUR
15+ 1.24 EUR
25+ 1.17 EUR
100+ 0.97 EUR
250+ 0.9 EUR
500+ 0.8 EUR
1000+ 0.63 EUR
2500+ 0.59 EUR
Mindestbestellmenge: 13
AONR66820 AONR66820.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: N
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 17A (Ta), 50A (Tc)
Rds On (Max) @ Id, Vgs: 8.8mOhm @ 17A, 8V
Power Dissipation (Max): 4.1W (Ta), 104W (Tc)
Vgs(th) (Max) @ Id: 4.1V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Drive Voltage (Max Rds On, Min Rds On): 8V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 80 V
Gate Charge (Qg) (Max) @ Vgs: 50 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1950 pF @ 40 V
Produkt ist nicht verfügbar
AONR66922 AONR66922.pdf
AONR66922
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 100V 15A/50A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 15A (Ta), 50A (Tc)
Rds On (Max) @ Id, Vgs: 9mOhm @ 15A, 10V
Power Dissipation (Max): 4.1W (Ta), 52W (Tc)
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 46 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 2180 pF @ 50 V
auf Bestellung 4362 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
8+2.24 EUR
10+ 1.83 EUR
100+ 1.43 EUR
500+ 1.21 EUR
1000+ 0.98 EUR
Mindestbestellmenge: 8
AONR66922 AONR66922.pdf
AONR66922
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 100V 15A/50A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerWDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 15A (Ta), 50A (Tc)
Rds On (Max) @ Id, Vgs: 9mOhm @ 15A, 10V
Power Dissipation (Max): 4.1W (Ta), 52W (Tc)
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Supplier Device Package: 8-DFN-EP (3.3x3.3)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 46 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 2180 pF @ 50 V
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
3000+0.93 EUR
Mindestbestellmenge: 3000
AONR66924 AONR66924.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: N
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 13A (Ta), 32A (Tc)
Rds On (Max) @ Id, Vgs: 13.5mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 30W (Tc)
Vgs(th) (Max) @ Id: 2.6V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 40 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1450 pF @ 50 V
auf Bestellung 4990 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
14+1.28 EUR
16+ 1.13 EUR
25+ 1.06 EUR
100+ 0.86 EUR
250+ 0.8 EUR
500+ 0.68 EUR
1000+ 0.55 EUR
2500+ 0.5 EUR
Mindestbestellmenge: 14
AONR66924 AONR66924.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: N
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 13A (Ta), 32A (Tc)
Rds On (Max) @ Id, Vgs: 13.5mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 30W (Tc)
Vgs(th) (Max) @ Id: 2.6V @ 250µA
Supplier Device Package: 8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 40 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1450 pF @ 50 V
Produkt ist nicht verfügbar
AONS1R6A70 AONS1R1A70.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 700V 1.1A/4.6A 8DFN
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 1.1A (Ta), 4.6A (Tc)
Rds On (Max) @ Id, Vgs: 1.6Ohm @ 1A, 10V
Power Dissipation (Max): 4.1W (Ta), 78W (Tc)
Vgs(th) (Max) @ Id: 3.5V @ 250µA
Supplier Device Package: 8-DFN-EP (5x6)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±30V
Drain to Source Voltage (Vdss): 700 V
Gate Charge (Qg) (Max) @ Vgs: 8 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 354 pF @ 100 V
Produkt ist nicht verfügbar
AONS1R6A70 AONS1R1A70.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: MOSFET N-CH 700V 1.1A/4.6A 8DFN
Packaging: Cut Tape (CT)
Package / Case: 8-PowerVDFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 1.1A (Ta), 4.6A (Tc)
Rds On (Max) @ Id, Vgs: 1.6Ohm @ 1A, 10V
Power Dissipation (Max): 4.1W (Ta), 78W (Tc)
Vgs(th) (Max) @ Id: 3.5V @ 250µA
Supplier Device Package: 8-DFN-EP (5x6)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±30V
Drain to Source Voltage (Vdss): 700 V
Gate Charge (Qg) (Max) @ Vgs: 8 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 354 pF @ 100 V
auf Bestellung 2507 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
9+2.11 EUR
11+ 1.72 EUR
100+ 1.34 EUR
500+ 1.14 EUR
1000+ 0.93 EUR
Mindestbestellmenge: 9
AONS21113 AONS21113.pdf
Hersteller: Alpha & Omega Semiconductor Inc.
Description: P
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerSMD, Flat Leads
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 44A (Ta), 70A (Tc)
Rds On (Max) @ Id, Vgs: 2.2mOhm @ 20A, 10V
Power Dissipation (Max): 6.2W (Ta), 138W (Tc)
Vgs(th) (Max) @ Id: 1.1V @ 250µA
Supplier Device Package: 8-DFN (5x6)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 2.5V, 10V
Vgs (Max): ±12V
Drain to Source Voltage (Vdss): 20 V
Gate Charge (Qg) (Max) @ Vgs: 550 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 18700 pF @ 10 V
Produkt ist nicht verfügbar
Wählen Sie Seite:   [  << Vorherige Seite ]  1 6 12 18 24 30 31 32 33 34 35 36 37 38 39 40 42 48 54 60 66  [ Nächste Seite >> ]
