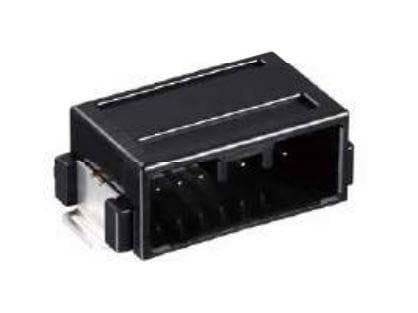

ZE05-4P-2H(A) Hirose Electric Co Ltd

Description: INTERCONNECT RECTANGULAR, Features: Solder Retention, Packaging: Tape & Reel (TR), Connector Type: Receptacle, Voltage Rating: 60VAC/DC, Current Rating (Amps): 2A, 5A, Mounting Type: Surface Mount, Right Angle, Number of Positions: 4, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 39.4µin (1.00µm), Contact Finish - Post: Tin, Contact Shape: Square, Insulation Height: 1.457" (37.00mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon.
