![VS-70HF100 VS-70HF100](https://ce8dc832c.cloudimg.io/v7/_cdn_/51/F6/A0/00/0/683797_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=a555bad2918c5dd2abf7b4eedecd5da427e99d5b)

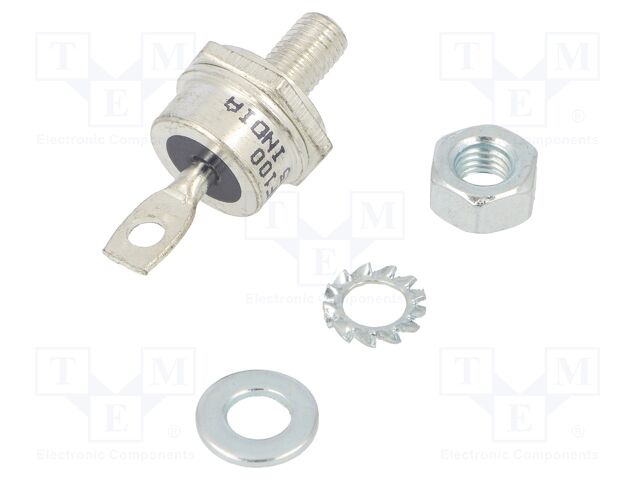

VS-70HF100 VISHAY
![vs-70hfrseries.pdf](/images/adobe-acrobat.png)
Category: Stud mounting universal diodes
Description: Diode: rectifying; 1kV; 1.35V; 70A; cathode to stud; DO203AB; bulk
Type of diode: rectifying
Max. off-state voltage: 1kV
Max. forward voltage: 1.35V
Load current: 70A
Max. load current: 110A
Semiconductor structure: cathode to stud
Case: DO203AB
Fastening thread: 1/4"-28UNF-2A
Mounting: screw type
Max. forward impulse current: 1kA
Kind of package: bulk
auf Bestellung 83 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
7+ | 11.33 EUR |
9+ | 8.24 EUR |
10+ | 7.79 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details VS-70HF100 VISHAY
Description: VISHAY - VS-70HF100 - Diodenmodul, 1 kV, 70 A, 1.35 V, DO-5, 2 Pin(s), tariffCode: 85411000, Bauform - Diode: DO-5, Durchlassstoßstrom: 1.25kA, rohsCompliant: YES, Diodenmontage: Bolzen, hazardous: false, rohsPhthalatesCompliant: YES, Durchlassspannung, max.: 1.35V, usEccn: EAR99, Durchschnittlicher Durchlassstrom: 70A, euEccn: NLR, Wiederkehrende Spitzensperrspannung: 1kV, Anzahl der Pins: 2Pin(s), Produktpalette: 70HF, productTraceability: Yes-Date/Lot Code, Konfiguration Diodenmodul: -, Betriebstemperatur, max.: 180°C, SVHC: Lead (08-Jul-2021).
Weitere Produktangebote VS-70HF100 nach Preis ab 7.79 EUR bis 20.75 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
VS-70HF100 | Hersteller : VISHAY |
![]() Description: Diode: rectifying; 1kV; 1.35V; 70A; cathode to stud; DO203AB; bulk Type of diode: rectifying Max. off-state voltage: 1kV Max. forward voltage: 1.35V Load current: 70A Max. load current: 110A Semiconductor structure: cathode to stud Case: DO203AB Fastening thread: 1/4"-28UNF-2A Mounting: screw type Max. forward impulse current: 1kA Kind of package: bulk Anzahl je Verpackung: 1 Stücke |
auf Bestellung 83 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||||||
![]() |
VS-70HF100 | Hersteller : Vishay Semiconductors |
![]() |
auf Bestellung 95 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
![]() |
VS-70HF100 | Hersteller : VISHAY |
![]() tariffCode: 85411000 Bauform - Diode: DO-5 Durchlassstoßstrom: 1.25kA rohsCompliant: YES Diodenmontage: Bolzen hazardous: false rohsPhthalatesCompliant: YES Durchlassspannung, max.: 1.35V usEccn: EAR99 Durchschnittlicher Durchlassstrom: 70A euEccn: NLR Wiederkehrende Spitzensperrspannung: 1kV Anzahl der Pins: 2Pin(s) Produktpalette: 70HF productTraceability: Yes-Date/Lot Code Konfiguration Diodenmodul: - Betriebstemperatur, max.: 180°C SVHC: Lead (08-Jul-2021) |
auf Bestellung 174 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
VS-70HF100 Produktcode: 134003 |
![]() |
Produkt ist nicht verfügbar
|
|||||||||||||||||||
![]() |
VS-70HF100 | Hersteller : Vishay |
![]() |
Produkt ist nicht verfügbar |
|||||||||||||||||
![]() |
VS-70HF100 | Hersteller : Vishay General Semiconductor - Diodes Division |
![]() Packaging: Bulk Package / Case: DO-203AB, DO-5, Stud Mounting Type: Chassis, Stud Mount Speed: Standard Recovery >500ns, > 200mA (Io) Technology: Standard Current - Average Rectified (Io): 70A Supplier Device Package: DO-203AB (DO-5) Operating Temperature - Junction: -65°C ~ 180°C Part Status: Active Voltage - DC Reverse (Vr) (Max): 1000 V Voltage - Forward (Vf) (Max) @ If: 1.35 V @ 220 A Current - Reverse Leakage @ Vr: 9 mA @ 1000 V |
Produkt ist nicht verfügbar |
