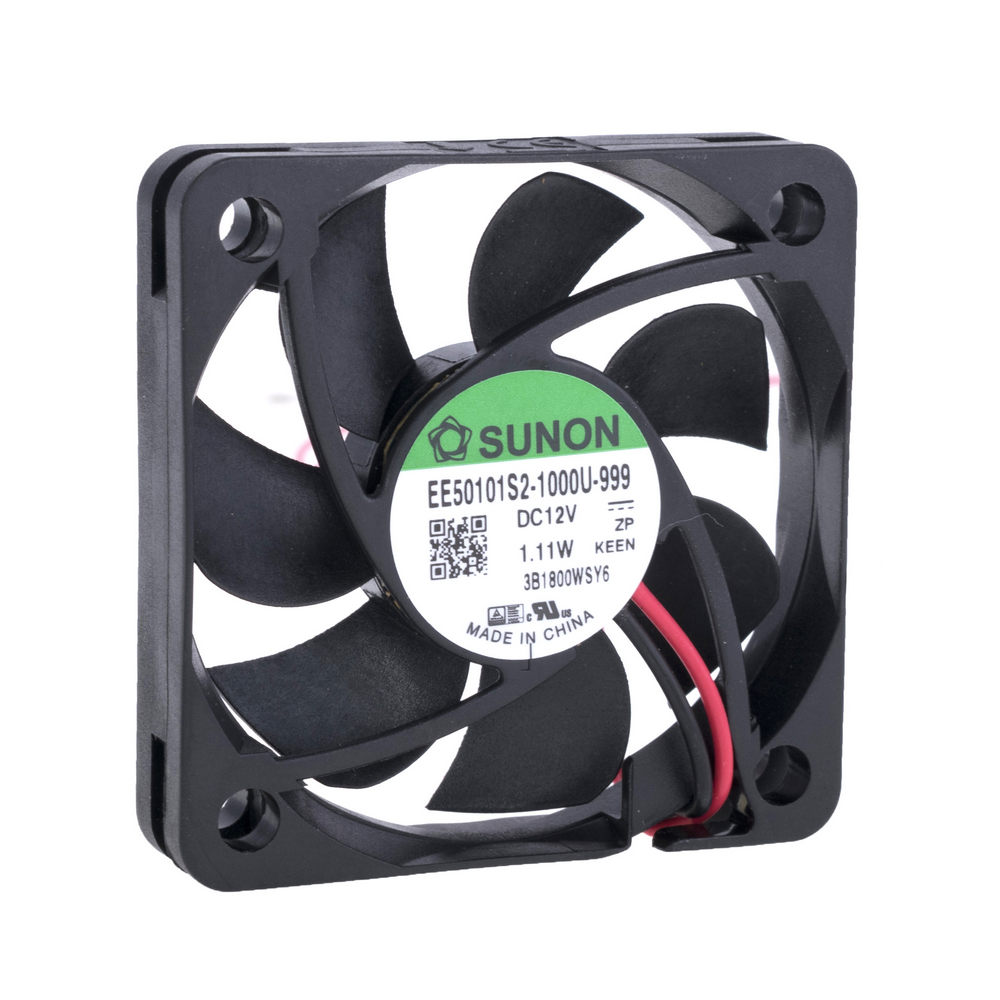

Lüfter Sunon 50x50x10mm 12VDC 18,59m3/h gleitend EE50101S2-999-A
Produktcode: 148741
Hersteller: SunonAbmessungen, mm: 50x50x10 mm
Spannung, V: 12 DC
Luftvolumen, m3/Stunde: 18,6 м³/год.
Leistung, Watt: 1,11 Вт
Lärm, dB: 26 дБ
Rotationsgeschwindigkeit, r/min: 4700 об/хв
Beschreibung: Підшипник ковзання "втулка"
verfügbar 381 Stück:
29 Stück - stock Köln
352 Stück - lieferbar in 3-4 Wochen
Produktrezensionen
Produktbewertung abgeben
Technische Details Lüfter Sunon 50x50x10mm 12VDC 18,59m3/h gleitend EE50101S2-999-A Sunon
Lüfter Sunon 50x50x10mm 12VDC Axial EE50101S2-999-A
Leiser 26dB 1,11W Gleitlager
Eigenschaften:
Betriebsspannung nominal 12VDC
Betriebsspannungsbereich
6…13,6 VDC
Nennstrom 75mA
Abmessungen: 50x50x10 mm
Lager: Gleitlager
Leistung
1,11 W
Luftstrom 18,6m3/h
Drehzahl 4700(+/-
15%) U/min
Geräuschpegel
25,6dBA
Statische Druck 2,79mm H2O
Isolationswiderstand 10MOhm
Temperaturbereich: -10...+70 °C
Anschluss 2 Leitungen 300mm 26AWG
Gewicht 20 g
Produktcode 148741
