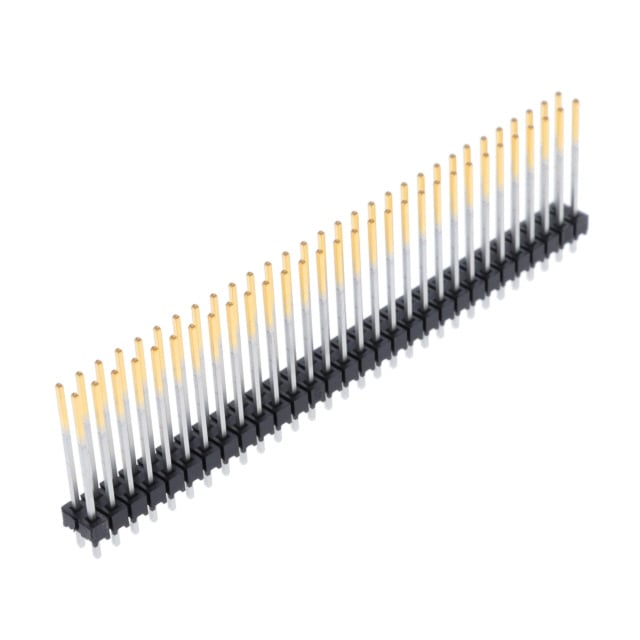

TSW-130-17-F-D Samtec Inc.
Hersteller: Samtec Inc.
Description: CONN HDR T/H .025" SQUARE P
Packaging: Bulk
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 60
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.110" (2.79mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.830" (21.08mm)
Insulation Material: Polybutylene Terephthalate (PBT)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.620" (15.75mm)
Description: CONN HDR T/H .025" SQUARE P
Packaging: Bulk
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 60
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.110" (2.79mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.830" (21.08mm)
Insulation Material: Polybutylene Terephthalate (PBT)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.620" (15.75mm)
auf Bestellung 162 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 2+ | 9.49 EUR |
| 10+ | 8.61 EUR |
| 100+ | 7.58 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TSW-130-17-F-D Samtec Inc.
Description: CONN HDR T/H .025" SQUARE P, Packaging: Bulk, Connector Type: Header, Mounting Type: Through Hole, Number of Positions: 60, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 3.00µin (0.076µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.110" (2.79mm), Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Overall Contact Length: 0.830" (21.08mm), Insulation Material: Polybutylene Terephthalate (PBT), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.620" (15.75mm).
Weitere Produktangebote TSW-130-17-F-D
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
|---|---|---|---|---|---|
 |
TSW-130-17-F-D | Hersteller : SAMTEC |
Description: SAMTEC - TSW-130-17-F-D - Stiftleiste, Board-to-Board, 2.54 mm, 2 Reihe(n), 60 Kontakt(e), Durchsteckmontage, TSW tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Ohne Kragen Anzahl der Kontakte: 60Kontakt(e) euEccn: NLR Steckverbindersysteme: Board-to-Board Produktpalette: TSW productTraceability: No Kontaktanschluss: Durchsteckmontage Anzahl der Reihen: 2Reihe(n) Rastermaß: 2.54mm SVHC: No SVHC (23-Jan-2024) |
auf Bestellung 15 Stücke: Lieferzeit 14-21 Tag (e) |
|
 |
TSW-130-17-F-D | Hersteller : Samtec |
 Headers & Wire Housings .100" Terminal Strip |
Produkt ist nicht verfügbar |
