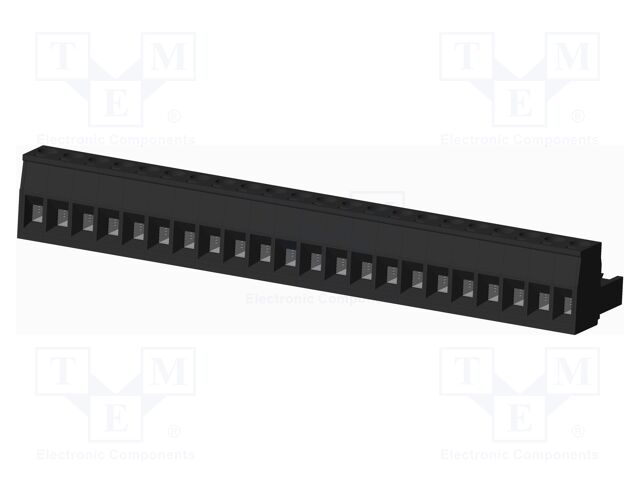

TJ2271000000G AMPHENOL ANYTEK
Hersteller: AMPHENOL ANYTEKCategory: Pluggable terminal blocks
Description: Pluggable terminal block; 5mm; straight; plug; female; for cable
Type of connector: pluggable terminal block
Contacts pitch: 5mm
Spatial orientation: straight
Connector: plug
Kind of connector: female
Mechanical mounting: for cable
Electrical mounting: screw terminal
Wire size: 24AWG...12AWG
Flammability rating: UL94V-0
Body material: PA66
Colour: black
Contact plating: tinned
Operating temperature: -40...115°C
Rated voltage: 300V
Number of pins: 22
Current rating: 12A
Contact material: phosphor bronze
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details TJ2271000000G AMPHENOL ANYTEK
Category: Pluggable terminal blocks, Description: Pluggable terminal block; 5mm; straight; plug; female; for cable, Type of connector: pluggable terminal block, Contacts pitch: 5mm, Spatial orientation: straight, Connector: plug, Kind of connector: female, Mechanical mounting: for cable, Electrical mounting: screw terminal, Wire size: 24AWG...12AWG, Flammability rating: UL94V-0, Body material: PA66, Colour: black, Contact plating: tinned, Operating temperature: -40...115°C, Rated voltage: 300V, Number of pins: 22, Current rating: 12A, Contact material: phosphor bronze, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote TJ2271000000G
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
|---|---|---|---|---|---|
| TJ2271000000G | Hersteller : Amphenol Anytek |
Description: TERM BLOCK PLUG 22POS STR 5MM Packaging: Bulk Features: Retention Latches (Non-Wire Side) Color: Black Mounting Type: Free Hanging (In-Line) Number of Positions: 22 Pitch: 0.197" (5.00mm) Type: Plug, Female Sockets Operating Temperature: -40°C ~ 115°C Termination Style: Screw Current - IEC: 20A Number of Levels: 1 Wire Gauge or Range - AWG: 12-24 AWG Wire Gauge or Range - mm²: 0.34-2.5mm² Positions Per Level: 22 Plug Wire Entry: 180° Contact Mating Finish: Tin Current - UL: 20 A Voltage - IEC: 300 V Voltage - UL: 300 V |
Produkt ist nicht verfügbar |
||
| TJ2271000000G | Hersteller : Amphenol Anytek |
Pluggable Terminal Blocks 500 TB PLU PLU DOWN/SIDE |
Produkt ist nicht verfügbar |
||
|
|
TJ2271000000G | Hersteller : AMPHENOL ANYTEK |
Category: Pluggable terminal blocks Description: Pluggable terminal block; 5mm; straight; plug; female; for cable Type of connector: pluggable terminal block Contacts pitch: 5mm Spatial orientation: straight Connector: plug Kind of connector: female Mechanical mounting: for cable Electrical mounting: screw terminal Wire size: 24AWG...12AWG Flammability rating: UL94V-0 Body material: PA66 Colour: black Contact plating: tinned Operating temperature: -40...115°C Rated voltage: 300V Number of pins: 22 Current rating: 12A Contact material: phosphor bronze |
