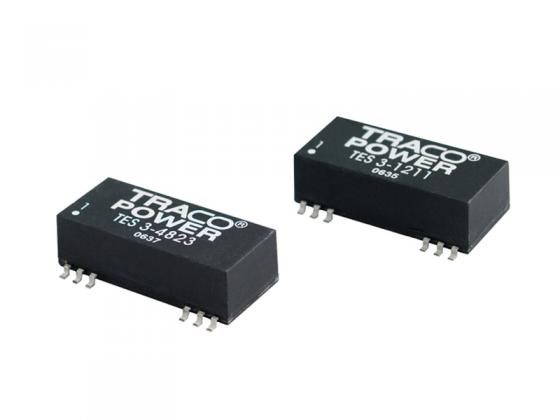

TES 3-1223 TRACO POWER
![tes3_datasheet.pdf](/images/adobe-acrobat.png)
Category: DC/DC Converters
Description: Converter: DC/DC; 3W; Uin: 9÷18V; Uout: 15VDC; Uout2: -15VDC; 300kHz
Manufacturer series: TES 3
Body dimensions: 32.3x14.8x10.2mm
Output voltage: 15V DC
Output current: 0.1A
Insulation voltage: 1.5kV DC
Input voltage: 9...18V
Type of converter: DC/DC
Output voltage 2: -15V DC
Efficiency: 81%
Switching frequency: 300kHz
Protection: short circuit protection SCP
Output current 2: 0.1A
Mounting: SMT
Operating temperature: -40...85°C
Power: 3W
Number of outputs: 2
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details TES 3-1223 TRACO POWER
Category: DC/DC Converters, Description: Converter: DC/DC; 3W; Uin: 9÷18V; Uout: 15VDC; Uout2: -15VDC; 300kHz, Manufacturer series: TES 3, Body dimensions: 32.3x14.8x10.2mm, Output voltage: 15V DC, Output current: 0.1A, Insulation voltage: 1.5kV DC, Input voltage: 9...18V, Type of converter: DC/DC, Output voltage 2: -15V DC, Efficiency: 81%, Switching frequency: 300kHz, Protection: short circuit protection SCP, Output current 2: 0.1A, Mounting: SMT, Operating temperature: -40...85°C, Power: 3W, Number of outputs: 2, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote TES 3-1223
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
---|---|---|---|---|---|
![]() |
TES 3-1223 | Hersteller : Traco Power |
![]() Packaging: Tube Features: SCP Package / Case: 24-SMD Module, 12 Leads Size / Dimension: 1.27" L x 0.58" W x 0.40" H (32.2mm x 14.8mm x 10.2mm) Mounting Type: Surface Mount Type: Isolated Module Operating Temperature: -40°C ~ 85°C (With Derating) Applications: ITE (Commercial) Voltage - Input (Max): 18V Efficiency: 81% Current - Output (Max): 100mA, 100mA Voltage - Input (Min): 9V Voltage - Output 1: 15V Voltage - Output 2: -15V Power (Watts): 3 W Number of Outputs: 2 Voltage - Isolation: 1.5 kV |
Produkt ist nicht verfügbar |
|
![]() |
TES 3-1223 | Hersteller : TRACO Power |
![]() |
Produkt ist nicht verfügbar |
|
TES 3-1223 | Hersteller : TRACO POWER |
![]() Description: Converter: DC/DC; 3W; Uin: 9÷18V; Uout: 15VDC; Uout2: -15VDC; 300kHz Manufacturer series: TES 3 Body dimensions: 32.3x14.8x10.2mm Output voltage: 15V DC Output current: 0.1A Insulation voltage: 1.5kV DC Input voltage: 9...18V Type of converter: DC/DC Output voltage 2: -15V DC Efficiency: 81% Switching frequency: 300kHz Protection: short circuit protection SCP Output current 2: 0.1A Mounting: SMT Operating temperature: -40...85°C Power: 3W Number of outputs: 2 |
Produkt ist nicht verfügbar |
