![TEN 30-2422WIN TEN 30-2422WIN](https://ce8dc832c.cloudimg.io/v7/_cdn_/96/DC/70/00/0/511337_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=6a2d05054e37429bafe13e246ce51d2033f5f330)

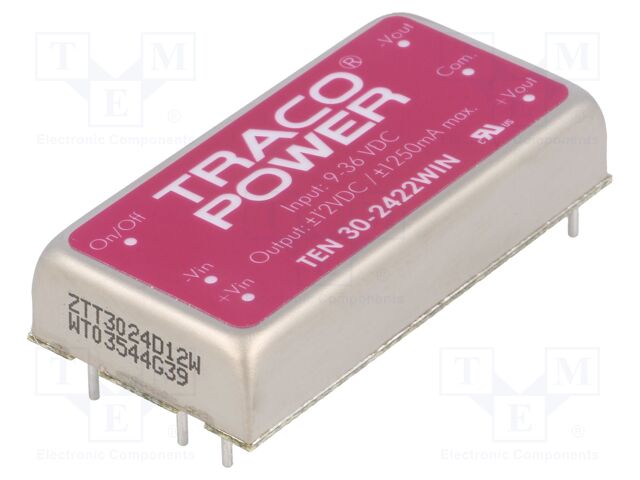

TEN 30-2422WIN TRACO POWER
![ten30win_datasheet.pdf](/images/adobe-acrobat.png)
Category: DC/DC Converters
Description: Converter: DC/DC; 30W; Uin: 9÷36V; Uout: 12VDC; Uout2: -12VDC; 2"x1"
Type of converter: DC/DC
Power: 30W
Input voltage: 9...36V
Output voltage: 12V DC
Output voltage 2: -12V DC
Output current: 1.25A
Output current 2: 1.25A
Case: 2"x1"
Body dimensions: 50.8x25.4x10.2mm
Efficiency: 87%
Operating temperature: -40...75°C
Switching frequency: 430kHz
Protection: anti-overload OPP; anti-overvoltage OVP; short circuit protection SCP
Insulation voltage: 1.5kV DC
Manufacturer series: TEN 30WIN
Number of outputs: 2
auf Bestellung 76 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
1+ | 86.37 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TEN 30-2422WIN TRACO POWER
Description: TRACO POWER - TEN 30-2422WIN - Isolierter DC/DC-Wandler PCB-Montage, Metallgehäuse, Durchsteckmontage, 30W, 12V, 1.25A, -12V, 1.25A, tariffCode: 85044095, DC-Eingangsspannung, min.: 9V, Ausgangsstrom - Ausgang 2: 1.25A, rohsCompliant: YES, Höhe: 10.2mm, Nominelle DC-Eingangsspannung: 24V, Tiefe: 50.8mm, hazardous: false, rohsPhthalatesCompliant: YES, Anzahl der Ausgänge: 2 Ausgänge, Breite: 25.4mm, usEccn: EAR99, DC/DC-Wandlerausgang: Fest, Isolationsspannung: 1.5kV, DC-Eingangsspannung, max.: 36V, DC/DC-Wandlermontage: Durchsteckmontage, euEccn: NLR, DC/DC-Wandler: DIP, Ausgangsregelung: -, Produktpalette: TEN 30WIN Series, Ausgangsspannung - Ausgang 1: 12V, productTraceability: No, Ausgangsspannung - Ausgang 2: -12V, Ausgangsstrom - Ausgang 1: 1.25A, Eingangsverhältnis: 4:1, Anwendungen für das Netzteil: ITE, Ausgangsleistung, max.: 30W, SVHC: No SVHC (14-Jun-2023).
Weitere Produktangebote TEN 30-2422WIN nach Preis ab 86.37 EUR bis 167.77 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
TEN 30-2422WIN | Hersteller : TRACO POWER |
![]() Description: Converter: DC/DC; 30W; Uin: 9÷36V; Uout: 12VDC; Uout2: -12VDC; 2"x1" Type of converter: DC/DC Power: 30W Input voltage: 9...36V Output voltage: 12V DC Output voltage 2: -12V DC Output current: 1.25A Output current 2: 1.25A Case: 2"x1" Body dimensions: 50.8x25.4x10.2mm Efficiency: 87% Operating temperature: -40...75°C Switching frequency: 430kHz Protection: anti-overload OPP; anti-overvoltage OVP; short circuit protection SCP Insulation voltage: 1.5kV DC Manufacturer series: TEN 30WIN Number of outputs: 2 Anzahl je Verpackung: 1 Stücke |
auf Bestellung 76 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||||
![]() |
TEN 30-2422WIN | Hersteller : TRACO Power |
![]() |
auf Bestellung 306 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
![]() |
TEN 30-2422WIN | Hersteller : Traco Power |
![]() |
auf Bestellung 35 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
![]() |
TEN 30-2422WIN | Hersteller : Traco Power |
![]() |
auf Bestellung 35 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
![]() |
TEN 30-2422WIN | Hersteller : Traco Power |
![]() Packaging: Tube Features: Remote On/Off, OCP, OTP, OVP, SCP, UVLO Package / Case: 7-DIP Module, 6 Leads Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 75°C (With Derating) Applications: ITE (Commercial) Voltage - Input (Max): 36V Efficiency: 87% Current - Output (Max): 1.25A, 1.25A Supplier Device Package: Module Voltage - Input (Min): 9V Voltage - Output 1: 12V Voltage - Output 2: -12V Power (Watts): 30 W Number of Outputs: 2 Voltage - Isolation: 1.5 kV |
auf Bestellung 31 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
![]() |
TEN 30-2422WIN | Hersteller : Traco Power |
![]() |
auf Bestellung 76 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
![]() |
TEN 30-2422WIN | Hersteller : TRACO POWER |
![]() tariffCode: 85044095 DC-Eingangsspannung, min.: 9V Ausgangsstrom - Ausgang 2: 1.25A rohsCompliant: YES Höhe: 10.2mm Nominelle DC-Eingangsspannung: 24V Tiefe: 50.8mm hazardous: false rohsPhthalatesCompliant: YES Anzahl der Ausgänge: 2 Ausgänge Breite: 25.4mm usEccn: EAR99 DC/DC-Wandlerausgang: Fest Isolationsspannung: 1.5kV DC-Eingangsspannung, max.: 36V DC/DC-Wandlermontage: Durchsteckmontage euEccn: NLR DC/DC-Wandler: DIP Ausgangsregelung: - Produktpalette: TEN 30WIN Series Ausgangsspannung - Ausgang 1: 12V productTraceability: No Ausgangsspannung - Ausgang 2: -12V Ausgangsstrom - Ausgang 1: 1.25A Eingangsverhältnis: 4:1 Anwendungen für das Netzteil: ITE Ausgangsleistung, max.: 30W SVHC: No SVHC (14-Jun-2023) |
auf Bestellung 81 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||
![]() |
TEN 30-2422WIN | Hersteller : Traco Power |
![]() |
auf Bestellung 35 Stücke: Lieferzeit 14-21 Tag (e) |
