![TEL 3-0522 TEL 3-0522](https://ce8dc832c.cloudimg.io/v7/_cdn_/35/BD/70/00/0/514899_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=c0c5c8a837d1d711e427e01f5cdcd9ebcca288c8)

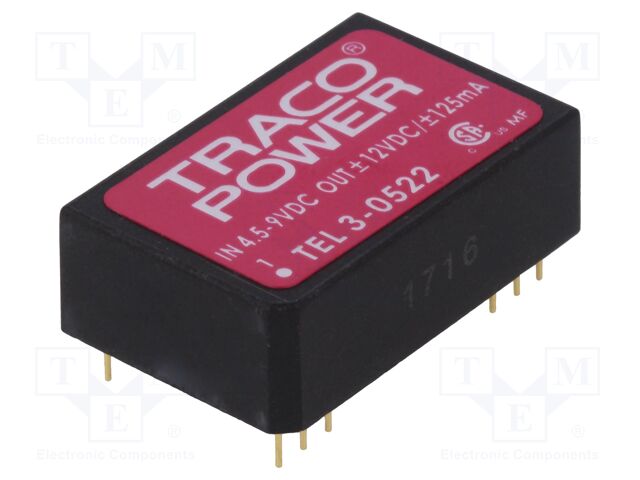

TEL 3-0522 TRACO POWER
![tel3-datasheet.pdf](/images/adobe-acrobat.png)
Category: DC/DC Converters
Description: Converter: DC/DC; 3W; Uin: 4.5÷9V; Uout: 12VDC; Uout2: -12VDC; DIP24
Body dimensions: 32x20x10.2mm
Manufacturer series: TEL3
Insulation voltage: 1.5kV
Input voltage: 4.5...9V
Type of converter: DC/DC
Output voltage 2: -12V DC
Efficiency: 74%
Switching frequency: 300kHz
Protection: short circuit protection SCP
Output current 2: 125mA
Operating temperature: -40...85°C
Case: DIP24
Power: 3W
Number of outputs: 2
Output voltage: 12V DC
Output current: 0.125A
Anzahl je Verpackung: 1 Stücke
auf Bestellung 50 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
4+ | 18.49 EUR |
5+ | 17.5 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TEL 3-0522 TRACO POWER
Description: TRACO POWER - TEL 3-0522 - Isolierter DC/DC-Wandler, Leiterplattenmontage, Durchsteckmontage, 3W, 12V, 125mA, -12V, 125mA, tariffCode: 85044095, DC-Eingangsspannung, min.: 4.5V, Ausgangsstrom - Ausgang 2: 125mA, rohsCompliant: YES, Höhe: 10.2mm, Nominelle DC-Eingangsspannung: 5V, Tiefe: 32mm, hazardous: false, rohsPhthalatesCompliant: YES, Anzahl der Ausgänge: 2 Ausgänge, Breite: 20mm, usEccn: EAR99, DC/DC-Wandlerausgang: Fest, Isolationsspannung: 1.5kV, DC-Eingangsspannung, max.: 9V, DC/DC-Wandlermontage: Durchsteckmontage, euEccn: NLR, DC/DC-Wandler: DIP, Ausgangsregelung: Geregelt, Produktpalette: TEL 3 Series, Ausgangsspannung - Ausgang 1: 12V, productTraceability: No, Ausgangsspannung - Ausgang 2: -12V, Ausgangsstrom - Ausgang 1: 125mA, Eingangsverhältnis: 2:1, Anwendungen für das Netzteil: ITE, Ausgangsleistung, max.: 3W, SVHC: No SVHC (14-Jun-2023).
Weitere Produktangebote TEL 3-0522 nach Preis ab 16.16 EUR bis 29.5 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
TEL 3-0522 | Hersteller : TRACO POWER |
![]() Description: Converter: DC/DC; 3W; Uin: 4.5÷9V; Uout: 12VDC; Uout2: -12VDC; DIP24 Body dimensions: 32x20x10.2mm Manufacturer series: TEL3 Insulation voltage: 1.5kV Input voltage: 4.5...9V Type of converter: DC/DC Output voltage 2: -12V DC Efficiency: 74% Switching frequency: 300kHz Protection: short circuit protection SCP Output current 2: 125mA Operating temperature: -40...85°C Case: DIP24 Power: 3W Number of outputs: 2 Output voltage: 12V DC Output current: 0.125A |
auf Bestellung 50 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
![]() |
TEL 3-0522 | Hersteller : Traco Power |
![]() |
auf Bestellung 201 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
![]() |
TEL 3-0522 | Hersteller : TRACO Power |
![]() |
auf Bestellung 5 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
![]() |
TEL 3-0522 | Hersteller : Traco Power |
![]() Packaging: Tube Features: SCP Package / Case: 24-DIP Module, 13 Leads Size / Dimension: 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 85°C (With Derating) Applications: ITE (Commercial) Voltage - Input (Max): 9V Efficiency: 74% Current - Output (Max): 125mA, 125mA Voltage - Input (Min): 4.5V Voltage - Output 1: 12V Voltage - Output 2: -12V Part Status: Not For New Designs Power (Watts): 3 W Number of Outputs: 2 Voltage - Isolation: 1.5 kV |
auf Bestellung 27 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
![]() |
TEL 3-0522 | Hersteller : TRACO POWER |
![]() tariffCode: 85044095 DC-Eingangsspannung, min.: 4.5V Ausgangsstrom - Ausgang 2: 125mA rohsCompliant: YES Höhe: 10.2mm Nominelle DC-Eingangsspannung: 5V Tiefe: 32mm hazardous: false rohsPhthalatesCompliant: YES Anzahl der Ausgänge: 2 Ausgänge Breite: 20mm usEccn: EAR99 DC/DC-Wandlerausgang: Fest Isolationsspannung: 1.5kV DC-Eingangsspannung, max.: 9V DC/DC-Wandlermontage: Durchsteckmontage euEccn: NLR DC/DC-Wandler: DIP Ausgangsregelung: Geregelt Produktpalette: TEL 3 Series Ausgangsspannung - Ausgang 1: 12V productTraceability: No Ausgangsspannung - Ausgang 2: -12V Ausgangsstrom - Ausgang 1: 125mA Eingangsverhältnis: 2:1 Anwendungen für das Netzteil: ITE Ausgangsleistung, max.: 3W SVHC: No SVHC (14-Jun-2023) |
auf Bestellung 55 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||
![]() |
TEL 3-0522 | Hersteller : Traco Power |
![]() |
auf Bestellung 561 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||
TEL 3-0522 Produktcode: 149014 |
![]() |
