![TCET1109 TCET1109](https://ce8dc832c.cloudimg.io/v7/_cdn_/8E/F8/B0/00/0/757736_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=b243c58380f263a1331f18adb4c623957ead7012)

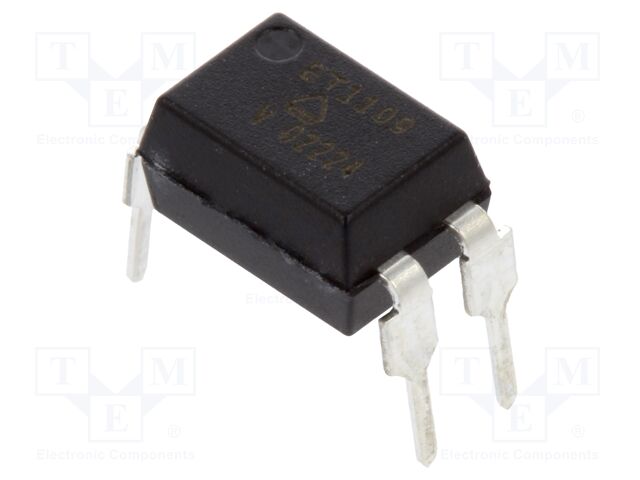

TCET1109 VISHAY
![TCET1100G.pdf](/images/adobe-acrobat.png)
Category: Optocouplers - analog output
Description: Optocoupler; THT; Ch: 1; OUT: transistor; Uinsul: 5kV; Uce: 70V; DIP4
Type of optocoupler: optocoupler
Mounting: THT
Number of channels: 1
Kind of output: transistor
Insulation voltage: 5kV
CTR@If: 200-400%@5mA
Collector-emitter voltage: 70V
Case: DIP4
Turn-on time: 3µs
Turn-off time: 4.7µs
Max. off-state voltage: 6V
Manufacturer series: TCET1100
auf Bestellung 188 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
125+ | 0.57 EUR |
143+ | 0.5 EUR |
188+ | 0.39 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TCET1109 VISHAY
Description: OPTOISOLATR 5KV TRANSISTOR 4-DIP, Packaging: Tube, Package / Case: 4-DIP (0.300", 7.62mm), Output Type: Transistor, Mounting Type: Through Hole, Operating Temperature: -40°C ~ 100°C, Voltage - Forward (Vf) (Typ): 1.25V, Input Type: DC, Current - Output / Channel: 50mA, Voltage - Isolation: 5000Vrms, Current Transfer Ratio (Min): 200% @ 5mA, Vce Saturation (Max): 300mV, Current Transfer Ratio (Max): 400% @ 5mA, Supplier Device Package: 4-DIP, Voltage - Output (Max): 70V, Turn On / Turn Off Time (Typ): 6µs, 5µs, Rise / Fall Time (Typ): 3µs, 4.7µs, Part Status: Active, Number of Channels: 1, Current - DC Forward (If) (Max): 60 mA.
Weitere Produktangebote TCET1109 nach Preis ab 0.26 EUR bis 0.95 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
TCET1109 | Hersteller : VISHAY |
![]() Description: Optocoupler; THT; Ch: 1; OUT: transistor; Uinsul: 5kV; Uce: 70V; DIP4 Type of optocoupler: optocoupler Mounting: THT Number of channels: 1 Kind of output: transistor Insulation voltage: 5kV CTR@If: 200-400%@5mA Collector-emitter voltage: 70V Case: DIP4 Turn-on time: 3µs Turn-off time: 4.7µs Max. off-state voltage: 6V Manufacturer series: TCET1100 Anzahl je Verpackung: 1 Stücke |
auf Bestellung 188 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||||
![]() |
TCET1109 | Hersteller : Vishay Semiconductors |
![]() |
auf Bestellung 3798 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
![]() |
TCET1109 | Hersteller : Vishay Semiconductor Opto Division |
![]() Packaging: Tube Package / Case: 4-DIP (0.300", 7.62mm) Output Type: Transistor Mounting Type: Through Hole Operating Temperature: -40°C ~ 100°C Voltage - Forward (Vf) (Typ): 1.25V Input Type: DC Current - Output / Channel: 50mA Voltage - Isolation: 5000Vrms Current Transfer Ratio (Min): 200% @ 5mA Vce Saturation (Max): 300mV Current Transfer Ratio (Max): 400% @ 5mA Supplier Device Package: 4-DIP Voltage - Output (Max): 70V Turn On / Turn Off Time (Typ): 6µs, 5µs Rise / Fall Time (Typ): 3µs, 4.7µs Part Status: Active Number of Channels: 1 Current - DC Forward (If) (Max): 60 mA |
auf Bestellung 3767 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
TCET1109 Produktcode: 194935 |
![]() |
Produkt ist nicht verfügbar
|
|||||||||||||||||
![]() |
TCET1109 | Hersteller : Vishay |
![]() |
Produkt ist nicht verfügbar |
|||||||||||||||
![]() |
TCET1109 | Hersteller : Vishay |
![]() |
Produkt ist nicht verfügbar |
