Produkte > Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör > SP100A1123XBT Sunon
![SP100A1123XBT SP100A1123XBT](/img/sp100a1123xbt.jpg)

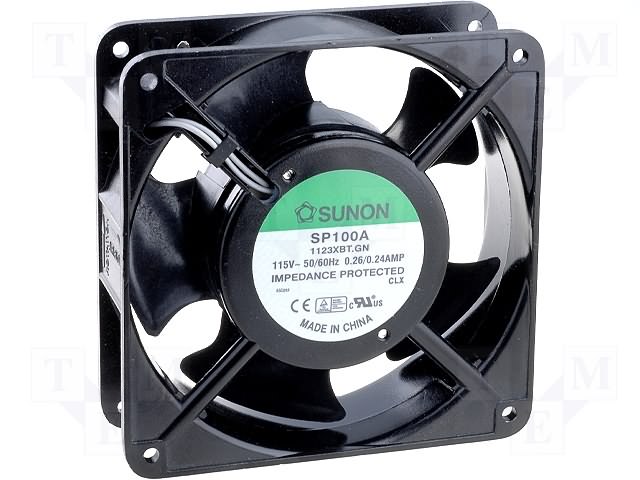

SP100A1123XBT Sunon
![sp100a1123xbtgn(a12003260g-00)0.pdf](/images/adobe-acrobat.png)
Produktcode: 46563
Hersteller: SunonAbmessungen, mm: 120x120x38
Spannung, V: 115 AC
Luftvolumen, m3/Stunde: 199
Leistung, Watt: 20
Lärm, dB: 50
Rotationsgeschwindigkeit, r/min: 3150
Beschreibung: Lager roll-on-
auf Bestellung 9 Stück:
Lieferzeit 21-28 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Weitere Produktangebote SP100A1123XBT nach Preis ab 11.27 EUR bis 46.73 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
SP100A1123XBT.GN | Hersteller : SUNON |
![]() ![]() Description: Fan: AC; axial; 115VAC; 120x120x38mm; 199m3/h(±10%); 50dBA; 3150rpm Type of fan: AC Kind of fan: axial Supply voltage: 115V AC Fan dimensions: 120x120x38mm Power consumption: 20W Current rating: 0.24A Fan efficiency: 199m3/h (±10%) Noise level: 50dBA Kind of Bearing: ball bearing Rotational rate/speed: 3150rpm Current and power consumption tolerance: ±15% Frequency: 60Hz Min. insulation resistance: 500MΩ Impeller material: thermoplastic Enclosure material: aluminium Leads: connectors 2,8x0,3mm Operating temperature: -10...70°C Flammability rating: UL94V-0 Static pressure: 9.9mm H2O Anzahl je Verpackung: 1 Stücke |
auf Bestellung 85 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||
![]() |
SP100A1123XBT.GN | Hersteller : SUNON |
![]() ![]() Description: Fan: AC; axial; 115VAC; 120x120x38mm; 199m3/h(±10%); 50dBA; 3150rpm Type of fan: AC Kind of fan: axial Supply voltage: 115V AC Fan dimensions: 120x120x38mm Power consumption: 20W Current rating: 0.24A Fan efficiency: 199m3/h (±10%) Noise level: 50dBA Kind of Bearing: ball bearing Rotational rate/speed: 3150rpm Current and power consumption tolerance: ±15% Frequency: 60Hz Min. insulation resistance: 500MΩ Impeller material: thermoplastic Enclosure material: aluminium Leads: connectors 2,8x0,3mm Operating temperature: -10...70°C Flammability rating: UL94V-0 Static pressure: 9.9mm H2O |
auf Bestellung 85 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
![]() |
SP100A-1123XBT.GN | Hersteller : Sunon |
![]() |
auf Bestellung 983 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
![]() |
SP100A-1123XBT.GN | Hersteller : Sunon Fans |
![]() Packaging: Bulk Power (Watts): 20.00W Voltage - Rated: 115VAC Size / Dimension: Square - 120mm L x 120mm H Bearing Type: Ball RPM: 3150 RPM Air Flow: 117.0 CFM (3.28m³/min) Width: 38.00mm Weight: 1.2 lbs (550 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Terminals Approval Agency: CE, CSA, TUV, UL Fan Type: Tubeaxial Noise: 50.0dB(A) Static Pressure: 0.390 in H2O (97.1 Pa) Part Status: Active |
auf Bestellung 9984 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
SP100A/1123XBT.GN | Hersteller : Sunon | AC Fan Axial Ball Bearing 115V 97CFM/117CFM 45dB/50dB 119 X 119 X 38.5mm Super High Speed |
auf Bestellung 536 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
SP100A/1123XBT.GN | Hersteller : Sunon | AC Fan Axial Ball Bearing 115V 97CFM/117CFM 45dB/50dB 119 X 119 X 38.5mm Super High Speed |
auf Bestellung 40 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
![]() |
SP100A-1123XBT | Hersteller : Sunon Fans |
![]() Power (Watts): 20.00W Voltage - Rated: 115VAC Size / Dimension: Square - 120mm L x 120mm H Bearing Type: Ball RPM: 3150 RPM Air Flow: 117.0 CFM (3.28m³/min) Width: 38.00mm Weight: 1.2 lbs (550 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Terminals Approval Agency: CE, CSA, TUV, UL Fan Type: Tubeaxial Noise: 50.0dB(A) Static Pressure: 0.390 in H2O (97.1 Pa) |
Produkt ist nicht verfügbar |
|||||||||||||
SP100A-1123XBT | Hersteller : Sunon |
![]() |
Produkt ist nicht verfügbar |
||||||||||||||
![]() |
SP100A/1123XBT.GN | Hersteller : Sunon |
![]() |
Produkt ist nicht verfügbar |
