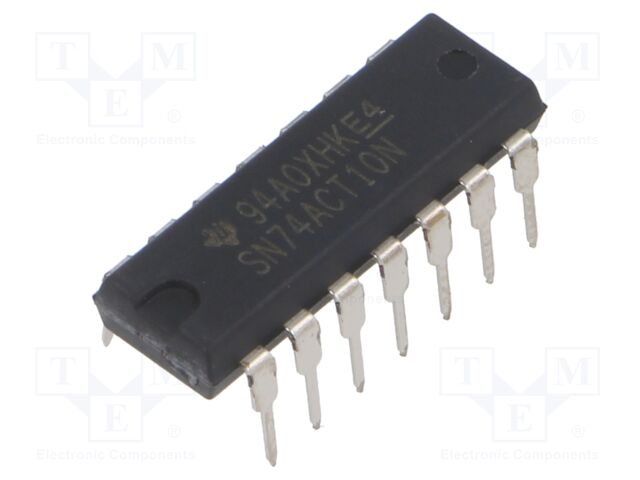

SN74ACT10N Texas Instruments
Hersteller: Texas InstrumentsDescription: IC GATE NAND 3CH 3-INP 14DIP
Packaging: Bulk
Package / Case: 14-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Logic Type: NAND Gate
Operating Temperature: -40°C ~ 85°C
Voltage - Supply: 4.5V ~ 5.5V
Current - Output High, Low: 24mA, 24mA
Number of Inputs: 3
Supplier Device Package: 14-PDIP
Input Logic Level - High: 2V
Input Logic Level - Low: 0.8V
Max Propagation Delay @ V, Max CL: 9ns @ 5V, 50pF
Number of Circuits: 3
Current - Quiescent (Max): 4 µA
auf Bestellung 36643 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 1019+ | 0.47 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details SN74ACT10N Texas Instruments
Description: IC GATE NAND 3CH 3-INP 14DIP, Packaging: Tube, Package / Case: 14-DIP (0.300", 7.62mm), Mounting Type: Through Hole, Logic Type: NAND Gate, Operating Temperature: -40°C ~ 85°C, Voltage - Supply: 4.5V ~ 5.5V, Current - Output High, Low: 24mA, 24mA, Number of Inputs: 3, Supplier Device Package: 14-PDIP, Input Logic Level - High: 2V, Input Logic Level - Low: 0.8V, Max Propagation Delay @ V, Max CL: 9ns @ 5V, 50pF, Part Status: Active, Number of Circuits: 3, Current - Quiescent (Max): 4 µA.
Weitere Produktangebote SN74ACT10N nach Preis ab 0.45 EUR bis 1.25 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SN74ACT10N | Hersteller : Texas Instruments |
Logic Gates Triple 3-Input Positive-NAND gates |
auf Bestellung 1610 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
|
|
SN74ACT10N | Hersteller : Texas Instruments |
Description: IC GATE NAND 3CH 3-INP 14DIP Packaging: Tube Package / Case: 14-DIP (0.300", 7.62mm) Mounting Type: Through Hole Logic Type: NAND Gate Operating Temperature: -40°C ~ 85°C Voltage - Supply: 4.5V ~ 5.5V Current - Output High, Low: 24mA, 24mA Number of Inputs: 3 Supplier Device Package: 14-PDIP Input Logic Level - High: 2V Input Logic Level - Low: 0.8V Max Propagation Delay @ V, Max CL: 9ns @ 5V, 50pF Part Status: Active Number of Circuits: 3 Current - Quiescent (Max): 4 µA |
auf Bestellung 33 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
| SN74ACT10N | Hersteller : TEXAS INSTRUMENTS |
Category: Gates, inverters Description: IC: digital; NAND; Ch: 3; IN: 3; CMOS,TTL; THT; DIP14; 4.5÷5.5VDC; tube Type of integrated circuit: digital Kind of gate: NAND Number of channels: triple; 3 Number of inputs: 3 Technology: CMOS; TTL Mounting: THT Case: DIP14 Supply voltage: 4.5...5.5V DC Operating temperature: -40...85°C Kind of package: tube Quiescent current: 40µA Family: ACT Anzahl je Verpackung: 1 Stücke |
Produkt ist nicht verfügbar |
||||||||||||||||||
| SN74ACT10N | Hersteller : TEXAS INSTRUMENTS |
Category: Gates, inverters Description: IC: digital; NAND; Ch: 3; IN: 3; CMOS,TTL; THT; DIP14; 4.5÷5.5VDC; tube Type of integrated circuit: digital Kind of gate: NAND Number of channels: triple; 3 Number of inputs: 3 Technology: CMOS; TTL Mounting: THT Case: DIP14 Supply voltage: 4.5...5.5V DC Operating temperature: -40...85°C Kind of package: tube Quiescent current: 40µA Family: ACT |
Produkt ist nicht verfügbar |
