![SISH106DN-T1-GE3 SISH106DN-T1-GE3](https://mm.digikey.com/Volume0/opasdata/d220001/medias/images/863/742;PowerPAK1212-8SH;DN;8.jpg)

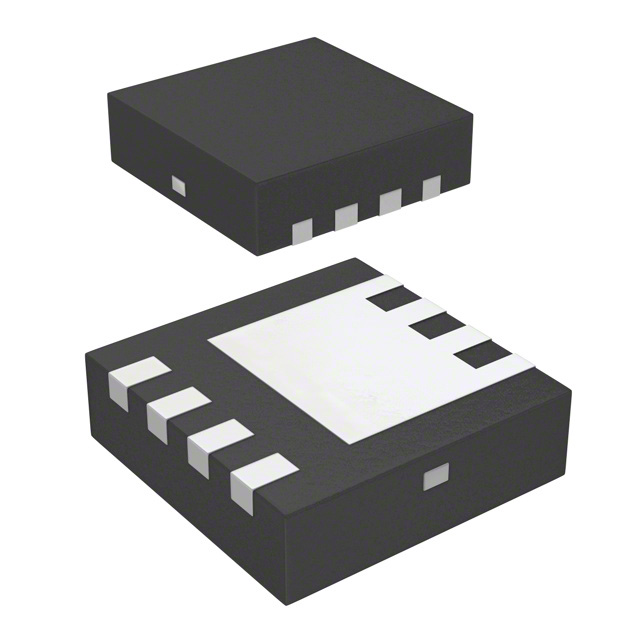

SISH106DN-T1-GE3 Vishay Siliconix
![sish106dn.pdf](/images/adobe-acrobat.png)
Description: MOSFET N-CH 20V 12.5A PPAK
Packaging: Tape & Reel (TR)
Package / Case: PowerPAK® 1212-8SH
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 12.5A (Ta)
Rds On (Max) @ Id, Vgs: 6.2mOhm @ 19.5A, 4.5V
Power Dissipation (Max): 1.5W (Ta)
Vgs(th) (Max) @ Id: 1.5V @ 250µA
Supplier Device Package: PowerPAK® 1212-8SH
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
Vgs (Max): ±12V
Drain to Source Voltage (Vdss): 20 V
Gate Charge (Qg) (Max) @ Vgs: 27 nC @ 4.5 V
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
3000+ | 1.13 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details SISH106DN-T1-GE3 Vishay Siliconix
Description: MOSFET N-CH 20V 12.5A PPAK, Packaging: Tape & Reel (TR), Package / Case: PowerPAK® 1212-8SH, Mounting Type: Surface Mount, Operating Temperature: -55°C ~ 150°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 12.5A (Ta), Rds On (Max) @ Id, Vgs: 6.2mOhm @ 19.5A, 4.5V, Power Dissipation (Max): 1.5W (Ta), Vgs(th) (Max) @ Id: 1.5V @ 250µA, Supplier Device Package: PowerPAK® 1212-8SH, Part Status: Active, Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V, Vgs (Max): ±12V, Drain to Source Voltage (Vdss): 20 V, Gate Charge (Qg) (Max) @ Vgs: 27 nC @ 4.5 V.
Weitere Produktangebote SISH106DN-T1-GE3 nach Preis ab 1.06 EUR bis 2.71 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
SISH106DN-T1-GE3 | Hersteller : Vishay Semiconductors |
![]() |
auf Bestellung 4229 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
![]() |
SISH106DN-T1-GE3 | Hersteller : Vishay Siliconix |
![]() Packaging: Cut Tape (CT) Package / Case: PowerPAK® 1212-8SH Mounting Type: Surface Mount Operating Temperature: -55°C ~ 150°C (TJ) Technology: MOSFET (Metal Oxide) FET Type: N-Channel Current - Continuous Drain (Id) @ 25°C: 12.5A (Ta) Rds On (Max) @ Id, Vgs: 6.2mOhm @ 19.5A, 4.5V Power Dissipation (Max): 1.5W (Ta) Vgs(th) (Max) @ Id: 1.5V @ 250µA Supplier Device Package: PowerPAK® 1212-8SH Part Status: Active Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V Vgs (Max): ±12V Drain to Source Voltage (Vdss): 20 V Gate Charge (Qg) (Max) @ Vgs: 27 nC @ 4.5 V |
auf Bestellung 5916 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
SISH106DN-T1-GE3 | Hersteller : VISHAY |
![]() Description: Transistor: N-MOSFET; TrenchFET®; unipolar; 20V; 15.6A; Idm: 60A; 2W Type of transistor: N-MOSFET Technology: TrenchFET® Polarisation: unipolar Drain-source voltage: 20V Drain current: 15.6A Pulsed drain current: 60A Power dissipation: 2W Case: PowerPAK® 1212-8 Gate-source voltage: ±12V On-state resistance: 9.8mΩ Mounting: SMD Gate charge: 27nC Kind of package: reel; tape Kind of channel: enhanced Anzahl je Verpackung: 1 Stücke |
Produkt ist nicht verfügbar |
||||||||||||||||||
SISH106DN-T1-GE3 | Hersteller : VISHAY |
![]() Description: Transistor: N-MOSFET; TrenchFET®; unipolar; 20V; 15.6A; Idm: 60A; 2W Type of transistor: N-MOSFET Technology: TrenchFET® Polarisation: unipolar Drain-source voltage: 20V Drain current: 15.6A Pulsed drain current: 60A Power dissipation: 2W Case: PowerPAK® 1212-8 Gate-source voltage: ±12V On-state resistance: 9.8mΩ Mounting: SMD Gate charge: 27nC Kind of package: reel; tape Kind of channel: enhanced |
Produkt ist nicht verfügbar |
