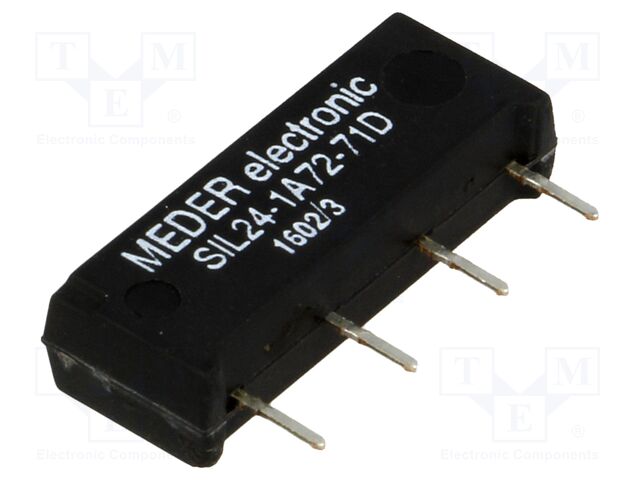

SIL24-1A72-71D MEDER
Hersteller: MEDER
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 24VDC; 1.25A; max.200VDC; 290mW
Type of relay: reed switch
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 1.25A
Relay series: SIL
Switched voltage: max. 200V AC; max. 200V DC
Mounting: PCB
Coil resistance: 2kΩ
Coil voltage min.: 16.8V DC
Coil voltage max.: 47V DC
Body dimensions: 19.2x5.08x7.62mm
Coil power consumption: 290mW
Operating temperature: -20...70°C
Contact resistance: 0.15Ω
Case: SIL
Terminal pitch: 5.08mm
Design: protection diode
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 24VDC; 1.25A; max.200VDC; 290mW
Type of relay: reed switch
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 1.25A
Relay series: SIL
Switched voltage: max. 200V AC; max. 200V DC
Mounting: PCB
Coil resistance: 2kΩ
Coil voltage min.: 16.8V DC
Coil voltage max.: 47V DC
Body dimensions: 19.2x5.08x7.62mm
Coil power consumption: 290mW
Operating temperature: -20...70°C
Contact resistance: 0.15Ω
Case: SIL
Terminal pitch: 5.08mm
Design: protection diode
auf Bestellung 1676 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
21+ | 3.53 EUR |
23+ | 3.13 EUR |
30+ | 2.45 EUR |
31+ | 2.32 EUR |
500+ | 2.25 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details SIL24-1A72-71D MEDER
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 24VDC; 1.25A; max.200VDC; 290mW, Type of relay: reed switch, Contacts configuration: SPST-NO, Rated coil voltage: 24V DC, Contact current max.: 1.25A, Relay series: SIL, Switched voltage: max. 200V AC; max. 200V DC, Mounting: PCB, Coil resistance: 2kΩ, Coil voltage min.: 16.8V DC, Coil voltage max.: 47V DC, Body dimensions: 19.2x5.08x7.62mm, Coil power consumption: 290mW, Operating temperature: -20...70°C, Contact resistance: 0.15Ω, Case: SIL, Terminal pitch: 5.08mm, Design: protection diode, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote SIL24-1A72-71D nach Preis ab 2.25 EUR bis 6.89 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SIL24-1A72-71D | Hersteller : MEDER |
Category: Reed Electromagnetic Relays Description: Relay: reed switch; SPST-NO; Ucoil: 24VDC; 1.25A; max.200VDC; 290mW Type of relay: reed switch Contacts configuration: SPST-NO Rated coil voltage: 24V DC Contact current max.: 1.25A Relay series: SIL Switched voltage: max. 200V AC; max. 200V DC Mounting: PCB Coil resistance: 2kΩ Coil voltage min.: 16.8V DC Coil voltage max.: 47V DC Body dimensions: 19.2x5.08x7.62mm Coil power consumption: 290mW Operating temperature: -20...70°C Contact resistance: 0.15Ω Case: SIL Terminal pitch: 5.08mm Design: protection diode Anzahl je Verpackung: 1 Stücke |
auf Bestellung 1676 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||||||
SIL24-1A72-71D | Hersteller : StandexMeder Electronics | Reed Relay 24VDC 2KOhm 0.5A SPST-NO(19.8x5.08x7.8)mm THT Dry |
auf Bestellung 250 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
SIL24-1A72-71D | Hersteller : Standex-Meder Electronics |
Description: RELAY REED SPST 0.5A 24V Features: Diode Packaging: Tube Mounting Type: Through Hole Coil Voltage: 24VDC Operating Temperature: -20°C ~ 70°C Termination Style: PC Pin Coil Current: 12 mA Coil Type: Non Latching Contact Form: SPST-NO (1 Form A) Contact Rating (Current): 500 mA Switching Voltage: 200VAC, 200VDC - Max Must Release Voltage: 3.6 VDC Must Operate Voltage: 16.8 VDC Operate Time: 0.7 ms Release Time: 0.1 ms Part Status: Active |
auf Bestellung 142 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||
SIL24-1A72-71D | Hersteller : MEDER electronic (Standex) | Reed Relays 1 Form A, SPST-NO 24V SIL w/Diode |
auf Bestellung 1790 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||
SIL24-1A72-71D | Hersteller : STANDEXMEDER |
Description: STANDEXMEDER - SIL24-1A72-71D - Reed-Relais, SPST-NO, 24 VDC, SIL, Durchsteckmontage, 2 kohm, 1 A tariffCode: 85364110 productTraceability: No Schaltspannung, max.: 200V rohsCompliant: YES Spulenwiderstand: 2kohm Schaltstrom, max.: 1A Spulenspannung: 24VDC euEccn: NLR hazardous: false rohsPhthalatesCompliant: YES usEccn: EAR99 Produktpalette: SIL |
auf Bestellung 544 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||||||
SIL24-1A72-71D | Hersteller : Meder Electronic |
SPST-NO; 24VDC; 1,25A; 145mW; PCB; SIL; 5,08mm kontaktron, 19,2x5,08x7,62mm, diode SIL24-1A72-71D MEDER P SIL24-1A72-71D Anzahl je Verpackung: 25 Stücke |
auf Bestellung 25 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||||||
SIL24-1A72-71D | Hersteller : Standex-Meder Electronics | Герконове реле; Iк, А = 0,5; Ro = 2 кОм; Uк, В = 200 (AC, DC); Uн, В = 24; Р, Вт = 0,145; Тексп, °C = -20...+70; Форма конт. = SPST-NO; Вид конт. групи = 1A; Тип монт. = вивідний; Час викл. = 0,1 мс; Час спрац. = 0,7 мс; SIL-4 |
auf Bestellung 195 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
SIL24-1A72-71D Produktcode: 129806 |
Hersteller : Meder |
Relais Relaistyp: Реле герконові Beschreibung: Тип контактів: SPST-NO; Uкотушки: 24VDC; Iкомутації: 1,25A; Rкотушки: 2 kOhm Abmessungen: 19,2x5,08x7,62 mm Spulenspannung: 24 VDC Strom max: 1,25 A Kontaktkonfiguration: SPST-NO(1C) Schaltspannung: 200 VAC; 200 VDC |
Produkt ist nicht verfügbar
|
||||||||||||||||||
SIL24-1A72-71D | Hersteller : StandexMeder Electronics GmbH | Reed Relay 24VDC 2KOhm 0.5A SPST-NO(19.8x5.08x7.8)mm THT Dry |
Produkt ist nicht verfügbar |
||||||||||||||||||
SIL24-1A72-71D | Hersteller : StandexMeder Electronics | Reed Relay 24VDC 2KOhm 0.5A SPST-NO(19.8x5.08x7.8)mm THT Dry |
Produkt ist nicht verfügbar |
