![SF23092A2092HBL.GN SF23092A2092HBL.GN](https://ce8dc832c.cloudimg.io/v7/_cdn_/0E/A2/50/00/0/338656_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=2c9d2aa38edea170502c48c05b68687e16d2aca8)

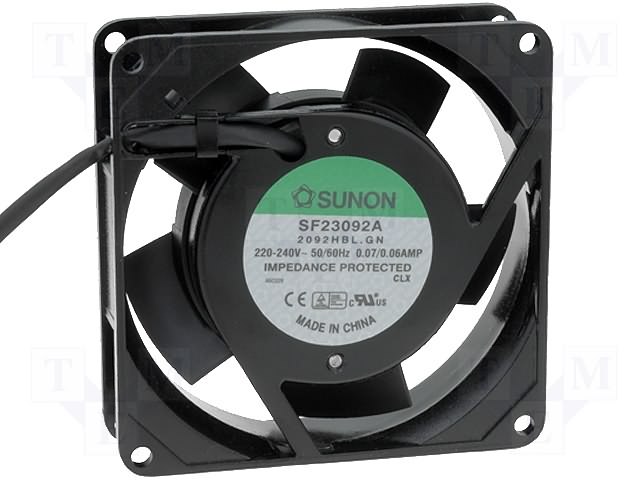

SF23092A2092HBL.GN SUNON
![Sunon AC Axial Fan & Blower.pdf](/images/adobe-acrobat.png)
![sf23092a2092hbl.pdf](/images/adobe-acrobat.png)
Category: AC230V Fans
Description: Fan: AC; axial; 230VAC; 92x92x25mm; 51m3/h(±7%); 37dBA; 2350rpm
Type of fan: AC
Kind of fan: axial
Supply voltage: 230V AC
Fan dimensions: 92x92x25mm
Power consumption: 14.5W
Current rating: 70mA
Fan efficiency: 51m3/h (±7%)
Noise level: 37dBA
Kind of Bearing: ball bearing
Rotational rate/speed: 2350rpm
Current and power consumption tolerance: ±15%
Frequency: 50Hz
Min. insulation resistance: 500MΩ
Impeller material: thermoplastic
Enclosure material: aluminium
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.31m
Flammability rating: UL94V-0
Static pressure: 3.3mm H2O
Wire size: 24AWG
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1174 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
6+ | 12.9 EUR |
10+ | 11.55 EUR |
50+ | 10.47 EUR |
200+ | 9.38 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details SF23092A2092HBL.GN SUNON
Category: AC230V Fans, Description: Fan: AC; axial; 230VAC; 92x92x25mm; 51m3/h(±7%); 37dBA; 2350rpm, Type of fan: AC, Kind of fan: axial, Supply voltage: 230V AC, Fan dimensions: 92x92x25mm, Power consumption: 14.5W, Current rating: 70mA, Fan efficiency: 51m3/h (±7%), Noise level: 37dBA, Kind of Bearing: ball bearing, Rotational rate/speed: 2350rpm, Current and power consumption tolerance: ±15%, Frequency: 50Hz, Min. insulation resistance: 500MΩ, Impeller material: thermoplastic, Enclosure material: aluminium, Leads: lead x2, Operating temperature: -10...70°C, Cable length: 0.31m, Flammability rating: UL94V-0, Static pressure: 3.3mm H2O, Wire size: 24AWG, Anzahl je Verpackung: 1 Stücke.
