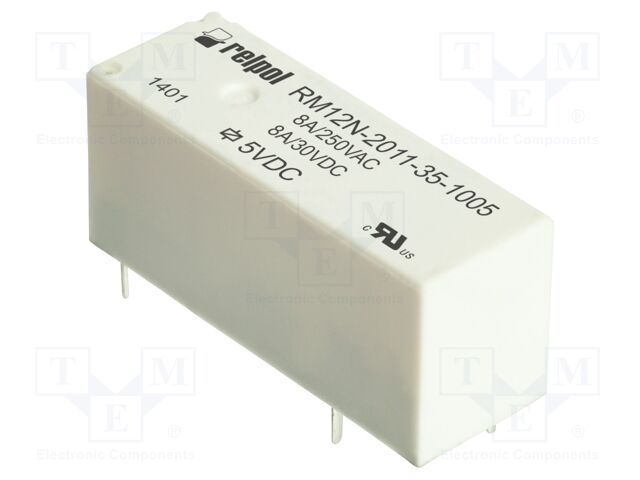

RM12N-2011-35-1005 RELPOL
Hersteller: RELPOLCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; 10A; 8A/250VAC; 8A/28VDC
Mounting: PCB
IP rating: IP67
Body dimensions: 28.7x10.3x12.7mm
Operating temperature: -40...85°C
OEM number: 2614987
DC contacts rating @R: 8A / 28V DC
Type of relay: electromagnetic
Relay variant: miniature
Relay series: RM12N
Rated coil voltage: 5V DC
Coil voltage min.: 3.5V DC
Coil voltage max.: 6.5V DC
Coil power consumption: 220mW
Operate time: 10ms
Release time: 5ms
Switched voltage: max. 30V DC; max. 440V AC
Contact current max.: 10A
Contact resistance: 100mΩ
Coil resistance: 113Ω
Contact material: AgNi
Electrical life: 100000 cycles
Terminal pitch: 7.62mm
Mechanical durability: 100000000 cycles
Contacts configuration: SPDT
AC contacts rating @R: 8A / 250V AC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 1+ | 71.5 EUR |
| 5+ | 14.3 EUR |
| 8+ | 8.94 EUR |
| 22+ | 3.25 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details RM12N-2011-35-1005 RELPOL
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; 10A; 8A/250VAC; 8A/28VDC, Mounting: PCB, IP rating: IP67, Body dimensions: 28.7x10.3x12.7mm, Operating temperature: -40...85°C, OEM number: 2614987, DC contacts rating @R: 8A / 28V DC, Type of relay: electromagnetic, Relay variant: miniature, Relay series: RM12N, Rated coil voltage: 5V DC, Coil voltage min.: 3.5V DC, Coil voltage max.: 6.5V DC, Coil power consumption: 220mW, Operate time: 10ms, Release time: 5ms, Switched voltage: max. 30V DC; max. 440V AC, Contact current max.: 10A, Contact resistance: 100mΩ, Coil resistance: 113Ω, Contact material: AgNi, Electrical life: 100000 cycles, Terminal pitch: 7.62mm, Mechanical durability: 100000000 cycles, Contacts configuration: SPDT, AC contacts rating @R: 8A / 250V AC, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote RM12N-2011-35-1005 nach Preis ab 71.5 EUR bis 71.5 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||
|---|---|---|---|---|---|---|---|---|---|
|
|
RM12N-2011-35-1005 | Hersteller : RELPOL |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPDT; Ucoil: 5VDC; 10A; 8A/250VAC; 8A/28VDC Mounting: PCB IP rating: IP67 Body dimensions: 28.7x10.3x12.7mm Operating temperature: -40...85°C OEM number: 2614987 DC contacts rating @R: 8A / 28V DC Type of relay: electromagnetic Relay variant: miniature Relay series: RM12N Rated coil voltage: 5V DC Coil voltage min.: 3.5V DC Coil voltage max.: 6.5V DC Coil power consumption: 220mW Operate time: 10ms Release time: 5ms Switched voltage: max. 30V DC; max. 440V AC Contact current max.: 10A Contact resistance: 100mΩ Coil resistance: 113Ω Contact material: AgNi Electrical life: 100000 cycles Terminal pitch: 7.62mm Mechanical durability: 100000000 cycles Contacts configuration: SPDT AC contacts rating @R: 8A / 250V AC |
auf Bestellung 1 Stücke: Lieferzeit 14-21 Tag (e) |
|
