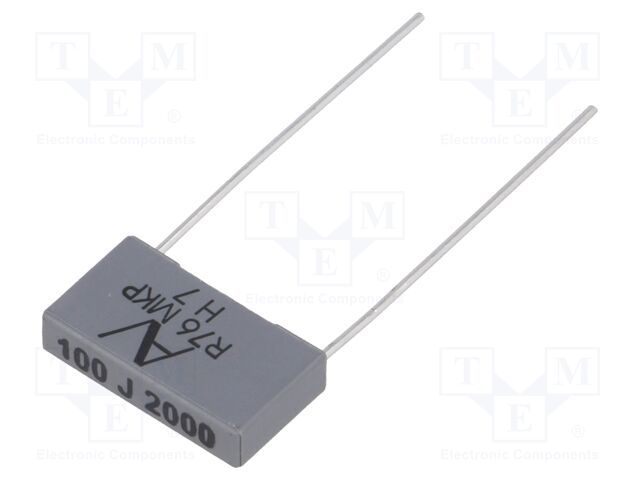

R76UI01004040J KEMET
Hersteller: KEMET
Category: THT Film Capacitors
Description: Capacitor: polypropylene; 100pF; 18x4x10mm; THT; ±5%; 15mm; 2kVDC
Type of capacitor: polypropylene
Capacitance: 100pF
Body dimensions: 18x4x10mm
Mounting: THT
Tolerance: ±5%
Terminal pitch: 15mm
Operating temperature: -55...105°C
Climate class: 55/105/56; IEC 60068-1
Pulse resistance: 9.5kV/μs
Manufacturer series: R76
Lead length: 30mm
Conform to the norm: AEC Q200
Flammability rating: UL94V-0
Kind of material: flame retardant
Max. operating voltage: 700V AC; 2kV DC
Anzahl je Verpackung: 5 Stücke
Category: THT Film Capacitors
Description: Capacitor: polypropylene; 100pF; 18x4x10mm; THT; ±5%; 15mm; 2kVDC
Type of capacitor: polypropylene
Capacitance: 100pF
Body dimensions: 18x4x10mm
Mounting: THT
Tolerance: ±5%
Terminal pitch: 15mm
Operating temperature: -55...105°C
Climate class: 55/105/56; IEC 60068-1
Pulse resistance: 9.5kV/μs
Manufacturer series: R76
Lead length: 30mm
Conform to the norm: AEC Q200
Flammability rating: UL94V-0
Kind of material: flame retardant
Max. operating voltage: 700V AC; 2kV DC
Anzahl je Verpackung: 5 Stücke
auf Bestellung 1320 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
110+ | 0.67 EUR |
145+ | 0.5 EUR |
220+ | 0.33 EUR |
235+ | 0.31 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details R76UI01004040J KEMET
Description: KEMET - R76UI01004040J - Leistungs-Folienkondensator, Impuls, Doppelt metallisiertes PP, Radiales Gehäuse, 2 Pins, 100 pF, tariffCode: 85322500, Produkthöhe: 10mm, dv/dt: 11kV/µs, rohsCompliant: YES, Anschlussabstand: 15mm, Höhe: 10mm, hazardous: false, rohsPhthalatesCompliant: YES, usEccn: EAR99, Betriebstemperatur, min.: -55°C, RMS-Strom Irms: -A, Äquivalenter Serienwiderstand (ESR): 6.366ohm, Produktlänge: 18mm, euEccn: NLR, Spitzenstrom: 1A, Spannung (AC): 700V, Kapazität: 100pF, Spannung (DC): 2kV, Rippelstrom: -A, productTraceability: No, Produktdurchmesser: -mm, Betriebstemperatur, max.: 105°C, Produktbreite: 4mm.
Weitere Produktangebote R76UI01004040J nach Preis ab 0.31 EUR bis 1.37 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
R76UI01004040J | Hersteller : KEMET |
Category: THT Film Capacitors Description: Capacitor: polypropylene; 100pF; 18x4x10mm; THT; ±5%; 15mm; 2kVDC Type of capacitor: polypropylene Capacitance: 100pF Body dimensions: 18x4x10mm Mounting: THT Tolerance: ±5% Terminal pitch: 15mm Operating temperature: -55...105°C Climate class: 55/105/56; IEC 60068-1 Pulse resistance: 9.5kV/μs Manufacturer series: R76 Lead length: 30mm Conform to the norm: AEC Q200 Flammability rating: UL94V-0 Kind of material: flame retardant Max. operating voltage: 700V AC; 2kV DC |
auf Bestellung 1320 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||||
R76UI01004040J | Hersteller : KEMET | Film Capacitors 2k V 100 pF 110C 5% 2 Pin LS=15 mm AEC-Q200 |
auf Bestellung 2530 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||||
R76UI01004040J | Hersteller : KEMET |
Description: CAP FILM 100PF 5% 2KVDC RADIAL Tolerance: ±5% Packaging: Bulk Package / Case: Radial Mounting Type: Through Hole Operating Temperature: -55°C ~ 110°C Applications: Automotive; High Frequency, Switching; High Pulse, DV/DT Lead Spacing: 0.591" (15.00mm) Termination: PC Pins Ratings: AEC-Q200 Dielectric Material: Polypropylene (PP), Metallized Voltage Rating - AC: 700V Voltage Rating - DC: 2000V (2kV) Height - Seated (Max): 0.398" (10.10mm) Part Status: Active Capacitance: 100 pF Size / Dimension: 0.709" L x 0.157" W (18.00mm x 4.00mm) |
auf Bestellung 8232 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||||
R76UI01004040J | Hersteller : KEMET |
Description: KEMET - R76UI01004040J - Leistungs-Folienkondensator, Impuls, Doppelt metallisiertes PP, Radiales Gehäuse, 2 Pins, 100 pF tariffCode: 85322500 Produkthöhe: 10mm dv/dt: 11kV/µs rohsCompliant: YES Anschlussabstand: 15mm Höhe: 10mm hazardous: false rohsPhthalatesCompliant: YES usEccn: EAR99 Betriebstemperatur, min.: -55°C RMS-Strom Irms: -A Äquivalenter Serienwiderstand (ESR): 6.366ohm Produktlänge: 18mm euEccn: NLR Spitzenstrom: 1A Spannung (AC): 700V Kapazität: 100pF Spannung (DC): 2kV Rippelstrom: -A productTraceability: No Produktdurchmesser: -mm Betriebstemperatur, max.: 105°C Produktbreite: 4mm |
auf Bestellung 3273 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||||||||
R76UI01004040J | Hersteller : KEMET | Cap Film 100pF 2000V PP 5% (18 X 4 X 10mm) Radial Plastic Rectangular Can 15mm 6.366 Ohm 110C Automotive Bulk |
Produkt ist nicht verfügbar |
