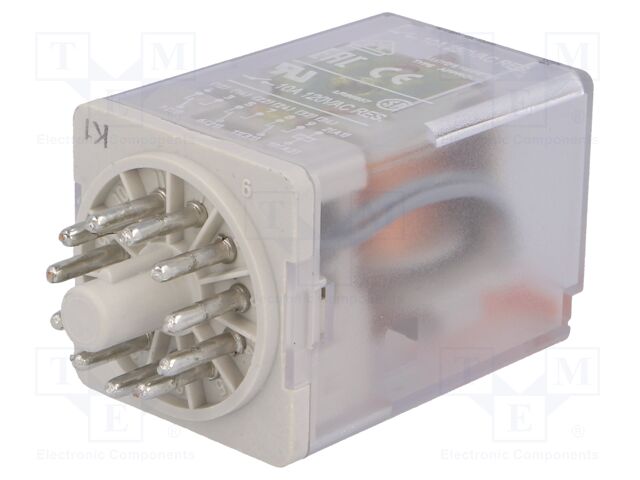

![R15-2013-23-5230-WTL R15-2013-23-5230-WTL](https://ce8dc832c.cloudimg.io/v7/_cdn_/5F/8A/50/00/0/370933_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=86d13582713911cc50465f3a654e53a065e60a37)
R15-2013-23-5230-WTL RELPOL
![R15_EN.pdf](/images/adobe-acrobat.png)
Category: Industrial Electromagnetic Relays
Description: Relay: electromagnetic; 3PDT; Ucoil: 230VAC; Icontacts max: 20A
Type of relay: electromagnetic
Contacts configuration: 3PDT
Rated coil voltage: 230V AC
Contact current max.: 20A
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 24V DC
Switched voltage: max. 250V DC; max. 440V AC
Relay variant: industrial
Mounting: socket
Relay series: R15
Operating temperature: -40...55°C
Body dimensions: 35x35x54.5mm
Coil resistance: 7.08kΩ
Contact resistance: 100mΩ
Coil power consumption: 1.6VA
Leads: stud terminals
Optional equipment: light indicator; mechanical indicator; test button with blocking function
Number of pins: 11
Electrical connection: round socket
Kind of connector: undecal
Related items: GZP11; GZU11; PZ11
OEM number: 804651
auf Bestellung 13 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
4+ | 17.99 EUR |
5+ | 17.02 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details R15-2013-23-5230-WTL RELPOL
Category: Industrial Electromagnetic Relays, Description: Relay: electromagnetic; 3PDT; Ucoil: 230VAC; Icontacts max: 20A, Type of relay: electromagnetic, Contacts configuration: 3PDT, Rated coil voltage: 230V AC, Contact current max.: 20A, AC contacts rating @R: 10A / 250V AC, DC contacts rating @R: 10A / 24V DC, Switched voltage: max. 250V DC; max. 440V AC, Relay variant: industrial, Mounting: socket, Relay series: R15, Operating temperature: -40...55°C, Body dimensions: 35x35x54.5mm, Coil resistance: 7.08kΩ, Contact resistance: 100mΩ, Coil power consumption: 1.6VA, Leads: stud terminals, Optional equipment: light indicator; mechanical indicator; test button with blocking function, Number of pins: 11, Electrical connection: round socket, Kind of connector: undecal, Related items: GZP11; GZU11; PZ11, OEM number: 804651, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote R15-2013-23-5230-WTL nach Preis ab 16.79 EUR bis 42.6 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
R15-2013-23-5230-WTL | Hersteller : RELPOL |
![]() Description: Relay: electromagnetic; 3PDT; Ucoil: 230VAC; Icontacts max: 20A Type of relay: electromagnetic Contacts configuration: 3PDT Rated coil voltage: 230V AC Contact current max.: 20A AC contacts rating @R: 10A / 250V AC DC contacts rating @R: 10A / 24V DC Switched voltage: max. 250V DC; max. 440V AC Relay variant: industrial Mounting: socket Relay series: R15 Operating temperature: -40...55°C Body dimensions: 35x35x54.5mm Coil resistance: 7.08kΩ Contact resistance: 100mΩ Coil power consumption: 1.6VA Leads: stud terminals Optional equipment: light indicator; mechanical indicator; test button with blocking function Number of pins: 11 Electrical connection: round socket Kind of connector: undecal Related items: GZP11; GZU11; PZ11 OEM number: 804651 Anzahl je Verpackung: 1 Stücke |
auf Bestellung 13 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||
![]() |
R15-2013-23-5230-WTL | Hersteller : RELPOL |
Description: RELPOL - R15-2013-23-5230-WTL - Leistungsrelais, 3PCO, 230 V, 10 A, REPOL 11-Pin R15, DIN-Schiene, AC Relaisanschlüsse: Steckanschlüsse Spulentyp: AC Kontaktmaterial: Silber-Gold-Legierung Kontaktstrom: 10 Spulenwiderstand: 7.08 Kontaktspannung V DC: - Relaismontage: DIN-Schiene Produktpalette: REPOL 11-Pin R15 Spulenspannung: 230 Kontaktkonfiguration: 3PCO Kontaktspannung V AC: 440 SVHC: To Be Advised |
auf Bestellung 19 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||
R15-2013-23-5230-WTL | Hersteller : RELPOL S.A. | R15-2013-23-5230-WTL |
auf Bestellung 13 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||
R15-2013-23-5230-WTL | Hersteller : Altech Corporation |
Description: RELAY GEN PURPOSE 3PDT 10A 230V Features: Lighted Indicator, Mechanical Indicator, Test Button Packaging: Bulk Mounting Type: Socketable Coil Voltage: 230VAC Operating Temperature: -40°C ~ 55°C Termination Style: Plug In, 11 Pin (Octal) Approval Agency: CCC, CE, CSA, TUV, UR Relay Type: General Purpose Coil Current: 32.5 mA Coil Type: Non Latching Contact Material: Silver Nickel (AgNi) Contact Form: 3PDT (3 Form C) Contact Rating (Current): 10 A Switching Voltage: 440VAC - Max Must Operate Voltage: 184 VAC Operate Time: 12 ms Release Time: 10 ms Part Status: Active Load - Max Switching: 4400VA |
auf Bestellung 100 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||
R15-2013-23-5230-WTL Produktcode: 128072 |
Relais |
Produkt ist nicht verfügbar
|
|||||||||||
R15-2013-23-5230-WTL | Hersteller : Altech |
![]() |
Produkt ist nicht verfügbar |
