![R15-2013-23-1024-WTL R15-2013-23-1024-WTL](https://ce8dc832c.cloudimg.io/v7/_cdn_/71/CD/B0/00/0/777239_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=0bb3c43a6290c0489b4a49f1e6afc6b4da73d912)

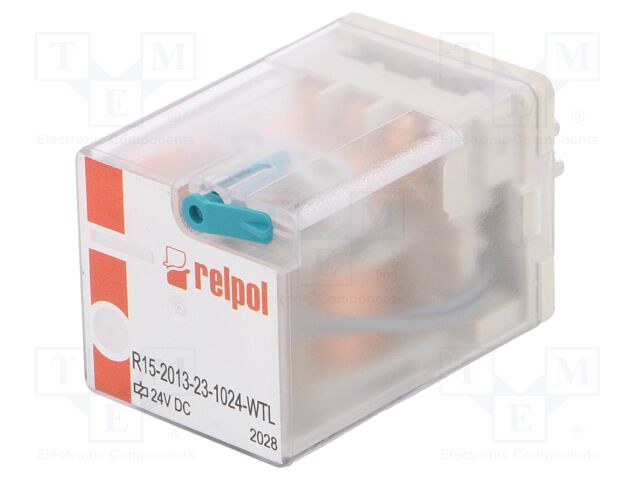

R15-2013-23-1024-WTL RELPOL
![R15_EN.pdf](/images/adobe-acrobat.png)
Category: Industrial Electromagnetic Relays
Description: Relay: electromagnetic; 3PDT; Ucoil: 24VDC; Icontacts max: 20A
Type of relay: electromagnetic
Contacts configuration: 3PDT
Rated coil voltage: 24V DC
Contact current max.: 20A
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 24V DC
Switched voltage: max. 250V DC; max. 440V AC
Relay variant: industrial
Mounting: socket
Relay series: R15
Operating temperature: -40...70°C
Body dimensions: 35x35x54.5mm
Coil resistance: 430Ω
Contact resistance: 100mΩ
Coil power consumption: 1.5W
Leads: stud terminals
Optional equipment: light indicator; mechanical indicator; test button with blocking function
Number of pins: 11
Electrical connection: round socket
Kind of connector: undecal
Related items: GZP11; GZU11; PZ11
OEM number: 804597
Anzahl je Verpackung: 1 Stücke
auf Bestellung 38 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
5+ | 16.13 EUR |
100+ | 15.92 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details R15-2013-23-1024-WTL RELPOL
Category: Industrial Electromagnetic Relays, Description: Relay: electromagnetic; 3PDT; Ucoil: 24VDC; Icontacts max: 20A, Type of relay: electromagnetic, Contacts configuration: 3PDT, Rated coil voltage: 24V DC, Contact current max.: 20A, AC contacts rating @R: 10A / 250V AC, DC contacts rating @R: 10A / 24V DC, Switched voltage: max. 250V DC; max. 440V AC, Relay variant: industrial, Mounting: socket, Relay series: R15, Operating temperature: -40...70°C, Body dimensions: 35x35x54.5mm, Coil resistance: 430Ω, Contact resistance: 100mΩ, Coil power consumption: 1.5W, Leads: stud terminals, Optional equipment: light indicator; mechanical indicator; test button with blocking function, Number of pins: 11, Electrical connection: round socket, Kind of connector: undecal, Related items: GZP11; GZU11; PZ11, OEM number: 804597, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote R15-2013-23-1024-WTL nach Preis ab 16.13 EUR bis 16.13 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||
---|---|---|---|---|---|---|---|---|---|
![]() |
R15-2013-23-1024-WTL | Hersteller : RELPOL |
![]() Description: Relay: electromagnetic; 3PDT; Ucoil: 24VDC; Icontacts max: 20A Type of relay: electromagnetic Contacts configuration: 3PDT Rated coil voltage: 24V DC Contact current max.: 20A AC contacts rating @R: 10A / 250V AC DC contacts rating @R: 10A / 24V DC Switched voltage: max. 250V DC; max. 440V AC Relay variant: industrial Mounting: socket Relay series: R15 Operating temperature: -40...70°C Body dimensions: 35x35x54.5mm Coil resistance: 430Ω Contact resistance: 100mΩ Coil power consumption: 1.5W Leads: stud terminals Optional equipment: light indicator; mechanical indicator; test button with blocking function Number of pins: 11 Electrical connection: round socket Kind of connector: undecal Related items: GZP11; GZU11; PZ11 OEM number: 804597 |
auf Bestellung 38 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||
![]() |
R15-2013-23-1024-WTL | Hersteller : RELPOL |
![]() tariffCode: 85364190 rohsCompliant: YES Relaisanschlüsse: Steckanschlüsse hazardous: false rohsPhthalatesCompliant: YES Spulentyp: DC Kontaktmaterial: Silber-Gold-Legierung Kontaktstrom: 10A usEccn: EAR99 Spulenwiderstand: 430ohm euEccn: NLR Kontaktspannung V DC: 24V Relaismontage: DIN-Schiene Produktpalette: REPOL 11-Pin R15 productTraceability: No Spulenspannung: 24V Kontaktkonfiguration: 3PCO Kontaktspannung V AC: 440V SVHC: No SVHC (17-Dec-2014) |
auf Bestellung 4 Stücke: Lieferzeit 14-21 Tag (e) |
|||||
R15-2013-23-1024-WTL | Hersteller : Altech Corporation |
Description: RELAY GEN PURPOSE 3PDT 10A 24V Features: Lighted Indicator, Mechanical Indicator, Test Button Packaging: Bulk Mounting Type: Socketable Coil Voltage: 24VDC Operating Temperature: -40°C ~ 70°C Termination Style: Plug In, 11 Pin (Octal) Approval Agency: CCC, CE, CSA, TUV, UR Relay Type: General Purpose Coil Current: 55.8 mA Coil Type: Non Latching Contact Material: Silver Nickel (AgNi) Contact Form: 3PDT (3 Form C) Contact Rating (Current): 10 A Switching Voltage: 440VAC - Max Must Operate Voltage: 19.2 VDC Operate Time: 18 ms Release Time: 7 ms Load - Max Switching: 4400VA |
Produkt ist nicht verfügbar |
||||||
![]() |
R15-2013-23-1024-WTL | Hersteller : Altech |
![]() |
Produkt ist nicht verfügbar |
