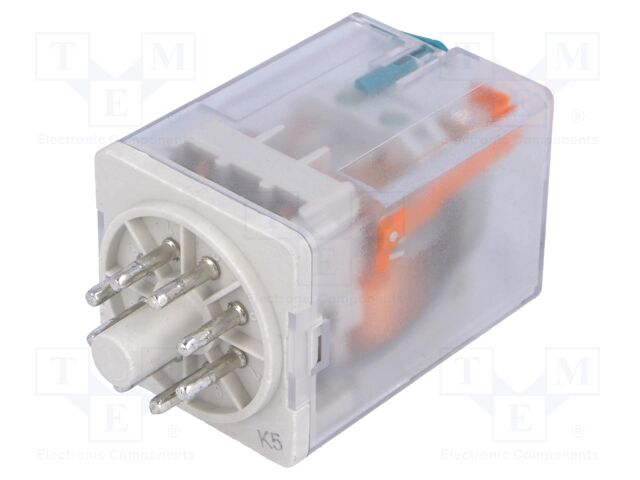

R15-2012-23-1110-WT RELPOL
Hersteller: RELPOL
Category: Industrial Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 110VDC; Icontacts max: 20A
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 110V DC
Contact current max.: 20A
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 24V DC
Switched voltage: max. 250V DC; max. 440V AC
Relay variant: industrial
Mounting: socket
Relay series: R15
Operating temperature: -40...70°C
Body dimensions: 35x35x54.5mm
Coil resistance: 9.2kΩ
Contact resistance: 100mΩ
Coil power consumption: 1.5W
Leads: stud terminals
Optional equipment: mechanical indicator; test button with blocking function
Number of pins: 8
Electrical connection: round socket
Kind of connector: octal
Related items: GOP8; GZ8; GZP8; GZU8; PZ8
OEM number: 802894
Anzahl je Verpackung: 1 Stücke
Category: Industrial Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 110VDC; Icontacts max: 20A
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 110V DC
Contact current max.: 20A
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 24V DC
Switched voltage: max. 250V DC; max. 440V AC
Relay variant: industrial
Mounting: socket
Relay series: R15
Operating temperature: -40...70°C
Body dimensions: 35x35x54.5mm
Coil resistance: 9.2kΩ
Contact resistance: 100mΩ
Coil power consumption: 1.5W
Leads: stud terminals
Optional equipment: mechanical indicator; test button with blocking function
Number of pins: 8
Electrical connection: round socket
Kind of connector: octal
Related items: GOP8; GZ8; GZP8; GZU8; PZ8
OEM number: 802894
Anzahl je Verpackung: 1 Stücke
auf Bestellung 38 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
5+ | 17.15 EUR |
6+ | 13.24 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details R15-2012-23-1110-WT RELPOL
Category: Industrial Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 110VDC; Icontacts max: 20A, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 110V DC, Contact current max.: 20A, AC contacts rating @R: 10A / 250V AC, DC contacts rating @R: 10A / 24V DC, Switched voltage: max. 250V DC; max. 440V AC, Relay variant: industrial, Mounting: socket, Relay series: R15, Operating temperature: -40...70°C, Body dimensions: 35x35x54.5mm, Coil resistance: 9.2kΩ, Contact resistance: 100mΩ, Coil power consumption: 1.5W, Leads: stud terminals, Optional equipment: mechanical indicator; test button with blocking function, Number of pins: 8, Electrical connection: round socket, Kind of connector: octal, Related items: GOP8; GZ8; GZP8; GZU8; PZ8, OEM number: 802894, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote R15-2012-23-1110-WT nach Preis ab 13.24 EUR bis 17.15 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
R15-2012-23-1110-WT | Hersteller : RELPOL |
Category: Industrial Electromagnetic Relays Description: Relay: electromagnetic; DPDT; Ucoil: 110VDC; Icontacts max: 20A Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 110V DC Contact current max.: 20A AC contacts rating @R: 10A / 250V AC DC contacts rating @R: 10A / 24V DC Switched voltage: max. 250V DC; max. 440V AC Relay variant: industrial Mounting: socket Relay series: R15 Operating temperature: -40...70°C Body dimensions: 35x35x54.5mm Coil resistance: 9.2kΩ Contact resistance: 100mΩ Coil power consumption: 1.5W Leads: stud terminals Optional equipment: mechanical indicator; test button with blocking function Number of pins: 8 Electrical connection: round socket Kind of connector: octal Related items: GOP8; GZ8; GZP8; GZU8; PZ8 OEM number: 802894 |
auf Bestellung 38 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||
R15-2012-23-1110-WT | Hersteller : Altech Corporation |
Description: RELAY GEN PURPOSE DPDT 10A 110V Features: Mechanical Indicator, Test Button Packaging: Bulk Mounting Type: Socketable Coil Voltage: 110VDC Operating Temperature: -40°C ~ 70°C Termination Style: Plug In, 8 Pin (Octal) Approval Agency: CCC, CE, CSA, TUV, UR Relay Type: General Purpose Coil Current: 12 mA Coil Type: Non Latching Contact Material: Silver Nickel (AgNi) Contact Form: DPDT (2 Form C) Contact Rating (Current): 10 A Switching Voltage: 440VAC - Max Must Operate Voltage: 88 VDC Operate Time: 18 ms Release Time: 7 ms Part Status: Active Load - Max Switching: 4400VA |
Produkt ist nicht verfügbar |
||||||||
R15-2012-23-1110-WT | Hersteller : Altech | Industrial Relays Industrial relay, DPDT |
Produkt ist nicht verfügbar |
