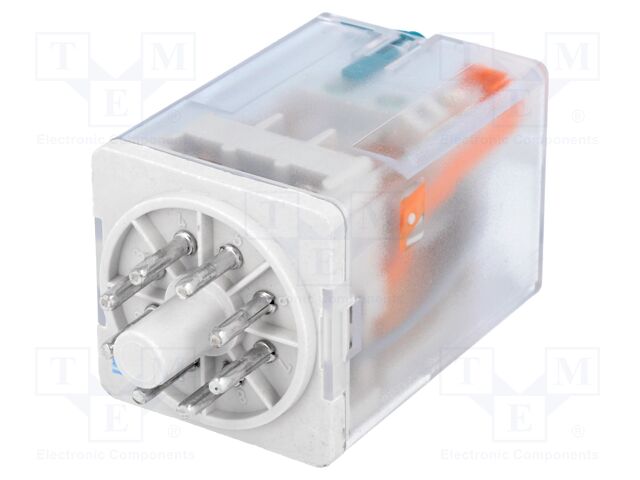

R15-2012-23-1024-WT RELPOL
Hersteller: RELPOL
Category: Industrial Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 20A
Contacts configuration: DPDT
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 24V DC
Leads: stud terminals
Operating temperature: -40...70°C
Related items: GOP8; GZ8; GZP8; GZU8; PZ8
Mounting: socket
Contact resistance: 100mΩ
Relay series: R15
Rated coil voltage: 24V DC
Coil power consumption: 1.5W
Switched voltage: max. 250V DC; max. 440V AC
Contact current max.: 20A
Coil resistance: 430Ω
Number of pins: 8
Optional equipment: mechanical indicator; test button with blocking function
Body dimensions: 35x35x54.5mm
Electrical connection: round socket
Kind of connector: octal
OEM number: 802882
Type of relay: electromagnetic
Relay variant: industrial
Anzahl je Verpackung: 1 Stücke
Category: Industrial Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 20A
Contacts configuration: DPDT
AC contacts rating @R: 10A / 250V AC
DC contacts rating @R: 10A / 24V DC
Leads: stud terminals
Operating temperature: -40...70°C
Related items: GOP8; GZ8; GZP8; GZU8; PZ8
Mounting: socket
Contact resistance: 100mΩ
Relay series: R15
Rated coil voltage: 24V DC
Coil power consumption: 1.5W
Switched voltage: max. 250V DC; max. 440V AC
Contact current max.: 20A
Coil resistance: 430Ω
Number of pins: 8
Optional equipment: mechanical indicator; test button with blocking function
Body dimensions: 35x35x54.5mm
Electrical connection: round socket
Kind of connector: octal
OEM number: 802882
Type of relay: electromagnetic
Relay variant: industrial
Anzahl je Verpackung: 1 Stücke
auf Bestellung 42 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
5+ | 16.07 EUR |
6+ | 12.93 EUR |
100+ | 12.76 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details R15-2012-23-1024-WT RELPOL
Category: Industrial Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 20A, Contacts configuration: DPDT, AC contacts rating @R: 10A / 250V AC, DC contacts rating @R: 10A / 24V DC, Leads: stud terminals, Operating temperature: -40...70°C, Related items: GOP8; GZ8; GZP8; GZU8; PZ8, Mounting: socket, Contact resistance: 100mΩ, Relay series: R15, Rated coil voltage: 24V DC, Coil power consumption: 1.5W, Switched voltage: max. 250V DC; max. 440V AC, Contact current max.: 20A, Coil resistance: 430Ω, Number of pins: 8, Optional equipment: mechanical indicator; test button with blocking function, Body dimensions: 35x35x54.5mm, Electrical connection: round socket, Kind of connector: octal, OEM number: 802882, Type of relay: electromagnetic, Relay variant: industrial, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote R15-2012-23-1024-WT nach Preis ab 12.93 EUR bis 32.15 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
R15-2012-23-1024-WT | Hersteller : RELPOL |
Category: Industrial Electromagnetic Relays Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 20A Contacts configuration: DPDT AC contacts rating @R: 10A / 250V AC DC contacts rating @R: 10A / 24V DC Leads: stud terminals Operating temperature: -40...70°C Related items: GOP8; GZ8; GZP8; GZU8; PZ8 Mounting: socket Contact resistance: 100mΩ Relay series: R15 Rated coil voltage: 24V DC Coil power consumption: 1.5W Switched voltage: max. 250V DC; max. 440V AC Contact current max.: 20A Coil resistance: 430Ω Number of pins: 8 Optional equipment: mechanical indicator; test button with blocking function Body dimensions: 35x35x54.5mm Electrical connection: round socket Kind of connector: octal OEM number: 802882 Type of relay: electromagnetic Relay variant: industrial |
auf Bestellung 42 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||
R15-2012-23-1024-WT | Hersteller : Altech Corporation |
Description: RELAY GEN PURPOSE DPDT 10A 24V Packaging: Bulk Features: Mechanical Indicator, Test Button Mounting Type: Socketable Coil Voltage: 24VDC Operating Temperature: -40°C ~ 70°C Termination Style: Plug In, 8 Pin (Octal) Relay Type: General Purpose Coil Current: 55.8 mA Coil Type: Non Latching Contact Material: Silver Nickel (AgNi) Contact Form: DPDT (2 Form C) Contact Rating (Current): 10 A Switching Voltage: 440VAC - Max Must Operate Voltage: 19.2 VDC Operate Time: 18 ms Release Time: 7 ms Part Status: Active |
auf Bestellung 20 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||
R15-2012-23-1024-WT | Hersteller : Altech | Industrial Relays Industrial relay, DPDT |
Produkt ist nicht verfügbar |
