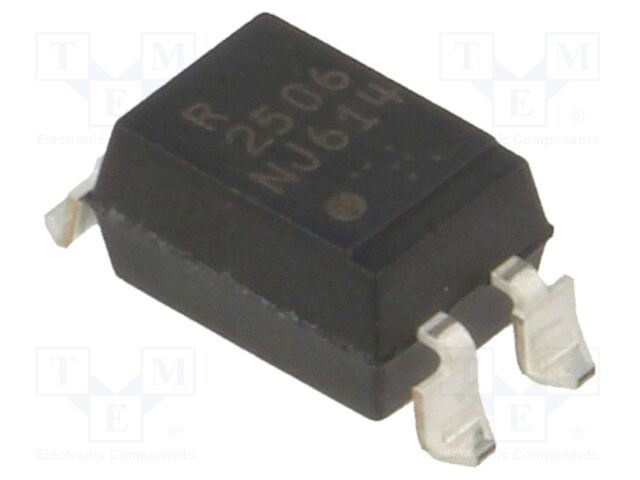

![PS2506L-1-A PS2506L-1-A](https://ce8dc832c.cloudimg.io/v7/_cdn_/EA/02/70/00/0/467118_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=eb0ccc46f0b6225058f8bd0d81c4c357af322fbd)
PS2506L-1-A CEL (Renesas)
![ps2506.pdf](/images/adobe-acrobat.png)
Category: Optocouplers - analog output
Description: Optocoupler; SMD; Ch: 1; OUT: Darlington; Uinsul: 5kV; Uce: 40V; NEPOC
Type of optocoupler: optocoupler
Mounting: SMD
Number of channels: 1
Kind of output: Darlington
Insulation voltage: 5kV
CTR@If: 200-2000%@1mA
Collector-emitter voltage: 40V
Case: Gull wing 4
Manufacturer series: NEPOC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 273 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
44+ | 1.66 EUR |
58+ | 1.24 EUR |
87+ | 0.83 EUR |
91+ | 0.79 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PS2506L-1-A CEL (Renesas)
Description: OPTOISOLATOR 5KV DARL 4SMD, Packaging: Tube, Package / Case: 4-SMD, Gull Wing, Output Type: Darlington, Mounting Type: Surface Mount, Operating Temperature: -55°C ~ 100°C, Voltage - Forward (Vf) (Typ): 1.17V, Input Type: AC, DC, Current - Output / Channel: 200mA, Voltage - Isolation: 5000Vrms, Current Transfer Ratio (Min): 200% @ 1mA, Vce Saturation (Max): 1V, Supplier Device Package: 4-SMD, Voltage - Output (Max): 40V, Rise / Fall Time (Typ): 100µs, 100µs, Part Status: Active, Number of Channels: 1, Current - DC Forward (If) (Max): 80 mA.
Weitere Produktangebote PS2506L-1-A nach Preis ab 0.52 EUR bis 2.55 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
PS2506L-1-A | Hersteller : CEL (Renesas) |
![]() Description: Optocoupler; SMD; Ch: 1; OUT: Darlington; Uinsul: 5kV; Uce: 40V; NEPOC Type of optocoupler: optocoupler Mounting: SMD Number of channels: 1 Kind of output: Darlington Insulation voltage: 5kV CTR@If: 200-2000%@1mA Collector-emitter voltage: 40V Case: Gull wing 4 Manufacturer series: NEPOC |
auf Bestellung 273 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
![]() |
PS2506L-1-A | Hersteller : Renesas Electronics Corporation |
![]() Packaging: Tube Package / Case: 4-SMD, Gull Wing Output Type: Darlington Mounting Type: Surface Mount Operating Temperature: -55°C ~ 100°C Voltage - Forward (Vf) (Typ): 1.17V Input Type: AC, DC Current - Output / Channel: 200mA Voltage - Isolation: 5000Vrms Current Transfer Ratio (Min): 200% @ 1mA Vce Saturation (Max): 1V Supplier Device Package: 4-SMD Voltage - Output (Max): 40V Rise / Fall Time (Typ): 100µs, 100µs Part Status: Active Number of Channels: 1 Current - DC Forward (If) (Max): 80 mA |
auf Bestellung 1287 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
![]() |
PS2506L-1-A | Hersteller : RENESAS |
![]() tariffCode: 85414900 productTraceability: Yes-Date/Lot Code Anzahl der Kanäle: 1 Kanal rohsCompliant: YES Anzahl der Pins: 4Pin(s) CTR, min.: 200% Isolationsspannung: 5kV euEccn: NLR Durchlassstrom If, max.: 80mA hazardous: false Bauform - Optokoppler: DIP, Oberflächenmontage rohsPhthalatesCompliant: YES Kollektor-Emitter-Spannung V(br)ceo: 40V usEccn: EAR99 Produktpalette: - SVHC: No SVHC (23-Jan-2024) |
auf Bestellung 245 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
PS2506L-1-A | Hersteller : Renesas |
![]() |
auf Bestellung 2927 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
PS2506L-1-A | Hersteller : Renesas Electronics |
![]() |
auf Bestellung 4575 Stücke: Lieferzeit 10-14 Tag (e) |
|
