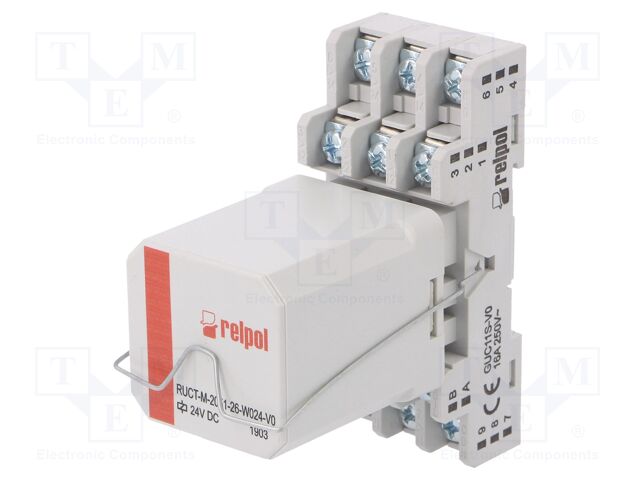

PRUCT-M-2051-26-W024-V0 RELPOL
![e_PRUCT-M with socket GUC11S.pdf](/images/adobe-acrobat.png)
Category: Electromagnetic Relays - Sets
Description: Relay: interface; SPST-NO; Ucoil: 24VDC; 16A; 16A/250VAC; 16A/24VDC
Contact material: AgNi
Mounting: for DIN rail mounting
Operating temperature: -40...55°C
Max. operating current: 16A
Conform to the norm: EN 50155
Application: railway industry
Flammability rating: UL94V-0
Kit contents: ejector; holder; RUCT-M relay
OEM number: 862281
Leads: screw terminals
Body dimensions: 41.5x77.3x84.5mm
Contacts configuration: SPST-NO
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 24V DC
Type of relay: interface
Relay variant: Relay set
Relay series: PRUCT-M
Rated coil voltage: 24V DC
Operate time: 20ms
Release time: 15ms
Switched voltage: max. 250V AC; max. 250V DC
Switching capacity: 2.5kVA
Contact resistance: 100mΩ
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details PRUCT-M-2051-26-W024-V0 RELPOL
Category: Electromagnetic Relays - Sets, Description: Relay: interface; SPST-NO; Ucoil: 24VDC; 16A; 16A/250VAC; 16A/24VDC, Contact material: AgNi, Mounting: for DIN rail mounting, Operating temperature: -40...55°C, Max. operating current: 16A, Conform to the norm: EN 50155, Application: railway industry, Flammability rating: UL94V-0, Kit contents: ejector; holder; RUCT-M relay, OEM number: 862281, Leads: screw terminals, Body dimensions: 41.5x77.3x84.5mm, Contacts configuration: SPST-NO, AC contacts rating @R: 16A / 250V AC, DC contacts rating @R: 16A / 24V DC, Type of relay: interface, Relay variant: Relay set, Relay series: PRUCT-M, Rated coil voltage: 24V DC, Operate time: 20ms, Release time: 15ms, Switched voltage: max. 250V AC; max. 250V DC, Switching capacity: 2.5kVA, Contact resistance: 100mΩ, Anzahl je Verpackung: 1 Stücke.
