![PMD2412PTB3-A.(2).GN PMD2412PTB3-A.(2).GN](https://www.mouser.com/images/sunon/lrg/12025_PMD_SPL.jpg)

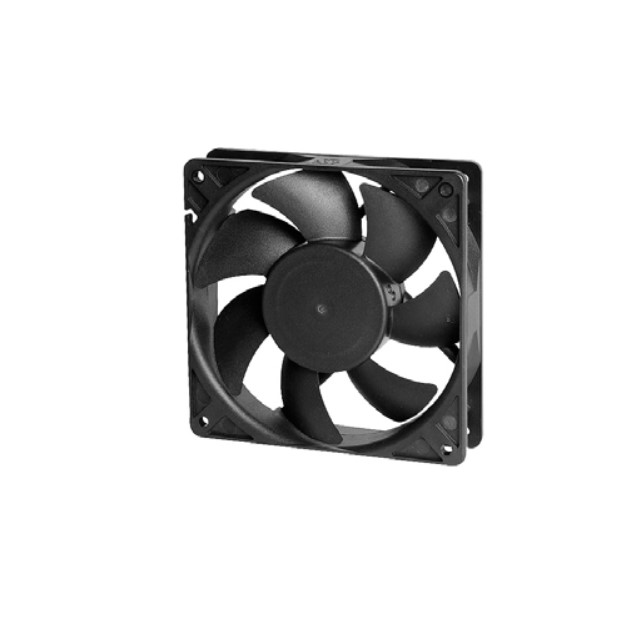

PMD2412PTB3-A.(2).GN Sunon
![sunonap.sunon_html_d_pkg.open_file?input_file_name=7264646F632F3230313330372F3136363037382F28443132303036313330472D3030292D332E706466](/images/adobe-acrobat.png)
DC Fans Axial Fan, 120x120x25mm, 24VDC, 120CFM, 0.41"H2O, Ball, Wire, Auto Restart
auf Bestellung 1 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
1+ | 73.96 EUR |
10+ | 72.23 EUR |
25+ | 70.17 EUR |
40+ | 44.72 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PMD2412PTB3-A.(2).GN Sunon
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 120x120x25mm; 202.8m3/h; 48dBA; ball bearing, Type of fan: DC, Kind of fan: axial, Supply voltage: 24V DC, Operating voltage: 10...27.6V, Fan dimensions: 120x120x25mm, Power consumption: 6.7W, Current rating: 0.28A, Fan efficiency: 202.8m3/h, Noise level: 48dBA, Kind of Bearing: ball bearing, Rotational rate/speed: 3600 (±15%)rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: lead x2, Operating temperature: -10...70°C, Cable length: 0.33m, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 10.42mm H2O, Wire size: 24AWG, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote PMD2412PTB3-A.(2).GN nach Preis ab 77.03 EUR bis 77.03 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||
---|---|---|---|---|---|---|---|---|---|
PMD2412PTB3-A.(2).GN | Hersteller : Sunon |
![]() |
auf Bestellung 88 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||
![]() |
PMD2412PTB3-A.(2).GN | Hersteller : SUNON |
![]() ![]() Description: Fan: DC; axial; 24VDC; 120x120x25mm; 202.8m3/h; 48dBA; ball bearing Type of fan: DC Kind of fan: axial Supply voltage: 24V DC Operating voltage: 10...27.6V Fan dimensions: 120x120x25mm Power consumption: 6.7W Current rating: 0.28A Fan efficiency: 202.8m3/h Noise level: 48dBA Kind of Bearing: ball bearing Rotational rate/speed: 3600 (±15%)rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.33m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 10.42mm H2O Wire size: 24AWG Anzahl je Verpackung: 1 Stücke |
Produkt ist nicht verfügbar |
|||||
PMD2412PTB3-A.(2).GN | Hersteller : Sunon Fans |
![]() Features: Auto Restart Packaging: Bulk Voltage - Rated: 24VDC Size / Dimension: Square - 120mm L x 120mm H Bearing Type: Ball RPM: 3600 RPM Air Flow: 120.0 CFM (3.36m³/min) Width: 25.00mm Termination: 2 Wire Leads Fan Type: Tubeaxial Noise: 48.0dB(A) Static Pressure: 0.410 in H2O (102.1 Pa) Power (Watts): 6.7 W |
Produkt ist nicht verfügbar |
||||||
![]() |
PMD2412PTB3-A.(2).GN | Hersteller : SUNON |
![]() ![]() Description: Fan: DC; axial; 24VDC; 120x120x25mm; 202.8m3/h; 48dBA; ball bearing Type of fan: DC Kind of fan: axial Supply voltage: 24V DC Operating voltage: 10...27.6V Fan dimensions: 120x120x25mm Power consumption: 6.7W Current rating: 0.28A Fan efficiency: 202.8m3/h Noise level: 48dBA Kind of Bearing: ball bearing Rotational rate/speed: 3600 (±15%)rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.33m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 10.42mm H2O Wire size: 24AWG |
Produkt ist nicht verfügbar |
