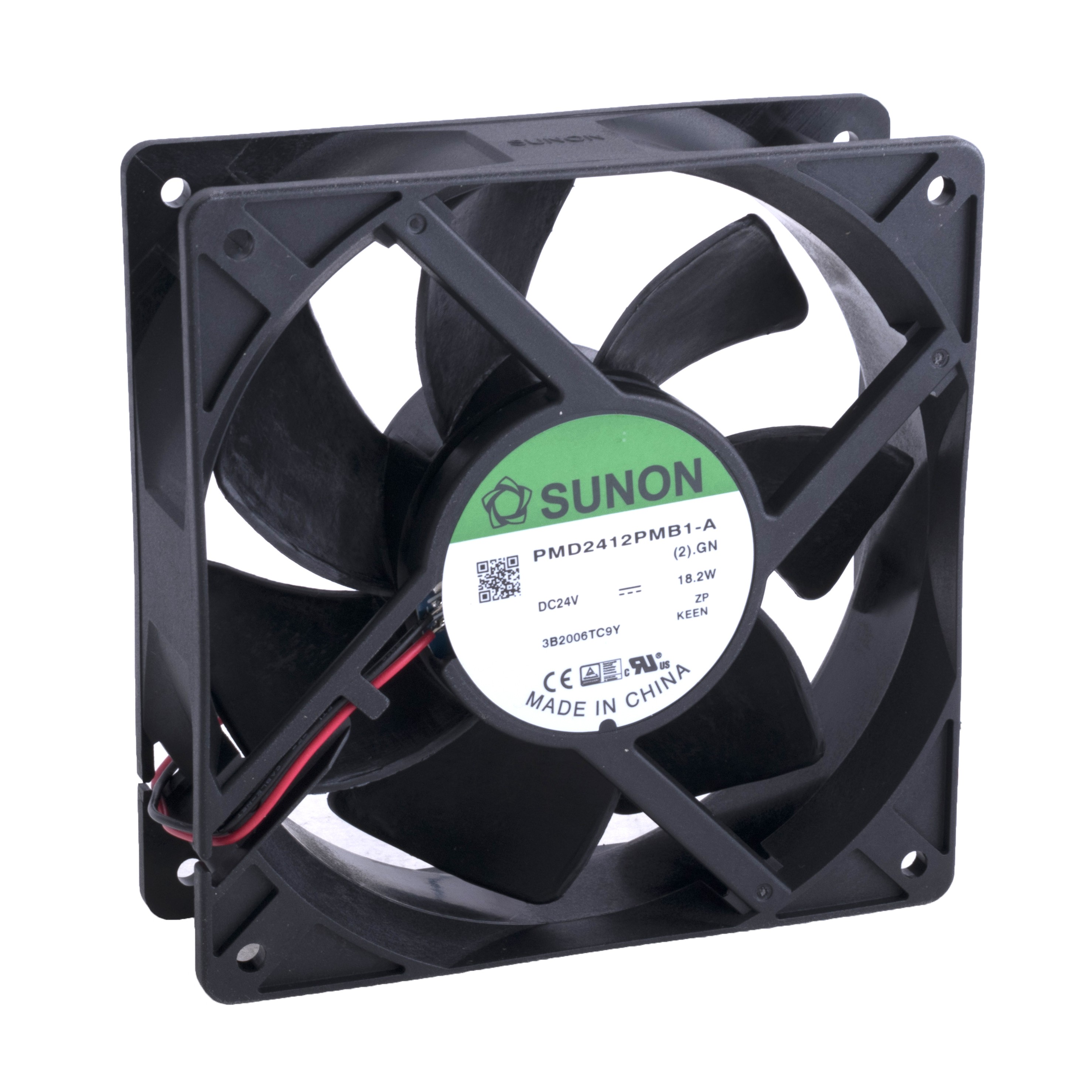

PMD2412PMB1-A(2).GN Sunon Fans
![(D12006340G-07)-0.pdf](/images/adobe-acrobat.png)
Description: FAN AXIAL 120X38MM 24VDC WIRE
Packaging: Tray
Voltage - Rated: 24VDC
Size / Dimension: Square - 120mm L x 120mm H
Bearing Type: Ball
RPM: 4200 RPM
Air Flow: 190.0 CFM (5.32m³/min)
Width: 38.00mm
Weight: 0.728 lb (330.22 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 54.0dB(A)
Static Pressure: 0.650 in H2O (161.9 Pa)
Part Status: Active
Power (Watts): 18.2 W
auf Bestellung 1267 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
1+ | 42.19 EUR |
10+ | 38.53 EUR |
40+ | 37.06 EUR |
80+ | 34.62 EUR |
120+ | 31.94 EUR |
280+ | 31.45 EUR |
520+ | 31.21 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PMD2412PMB1-A(2).GN Sunon Fans
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 120x120x38mm; 322.8m3/h; 54dBA; ball bearing, Operating temperature: -10...70°C, Additional functions: autorestart, Supply voltage: 24V DC, Power consumption: 18.2W, Current and power consumption tolerance: ±15%, Wire size: 24AWG, Rotational rate/speed: 4200 (±10%)rpm, Cable length: 0.3m, Noise level: 54dBA, Static pressure: 16.5mm H2O, Fan efficiency: 322.8m3/h, Kind of Bearing: ball bearing, Insulation class: A, Flammability rating: UL94V-0, Impeller material: thermoplastic, Fan motor: brushless DC, Fan dimensions: 120x120x38mm, Type of fan: DC, Operating voltage: 10...27.6V, Leads: lead x2, Current rating: 0.76A, Kind of fan: axial, Enclosure material: thermoplastic, Min. insulation resistance: 10MΩ, Anzahl je Verpackung: 1 Stücke.
