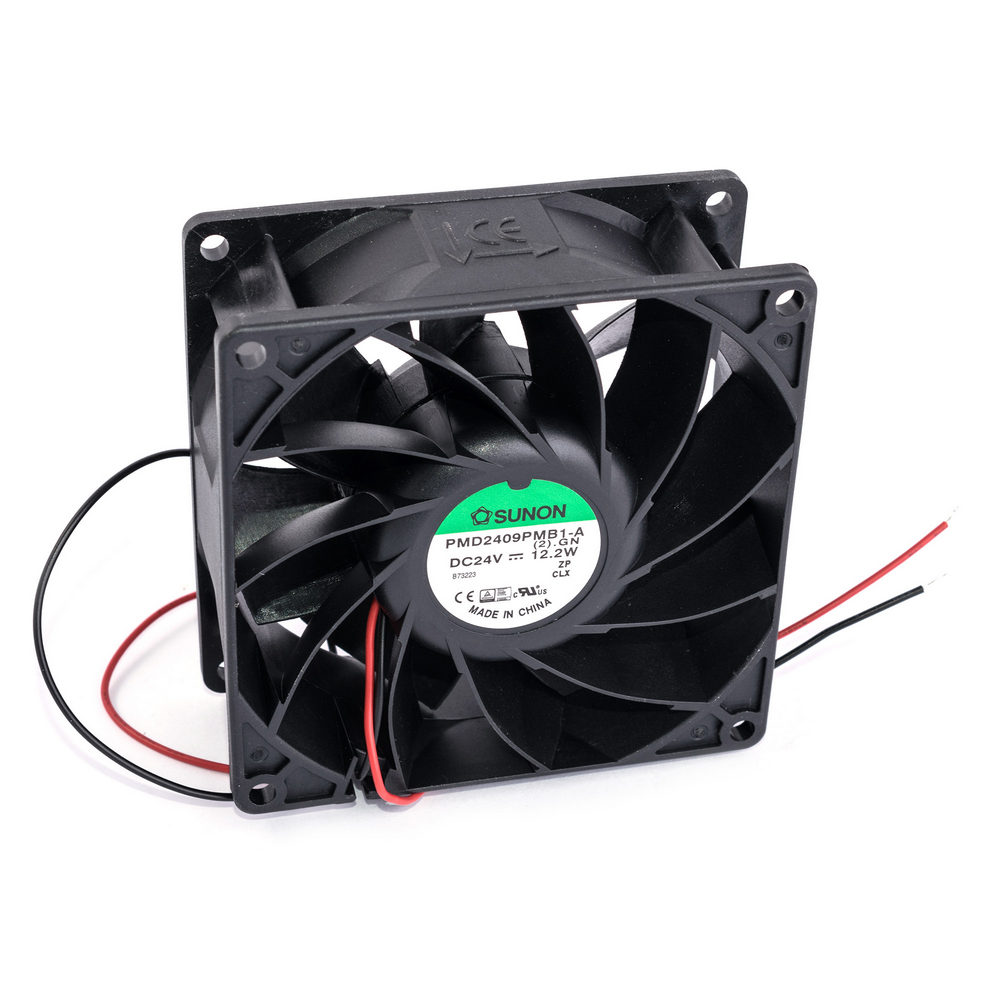

PMD2409PMB1 (PMD2409PMB1-A(2).GN) Sunon
Abmessungen, mm: 92x92x38 mm
Spannung, V: 24 DC
Luftvolumen, m3/Stunde: 204,21 м³/год.
Leistung, Watt: 12,2 Вт
Lärm, dB: 57,6 дБ
Rotationsgeschwindigkeit, r/min: 4900 об/хв
Beschreibung: Підшипник кульковий
14 Stück - stock Köln
110 Stück - lieferbar in 3-4 Wochen
200 Stück - erwartet 25.09.2024
Technische Details PMD2409PMB1 (PMD2409PMB1-A(2).GN) Sunon
Lüfter
Sunon 92x92x38mm 24V DC PMD2409PMB1-A(2).GN 12,2W Kugellager 204m3/h 4900 U/Min
57.6dBA
Hersteller SUNON
Lüfter-Art axial
Versorgungsspannung 24V
DC
Lüftergröße 92x92x38mm
Leistungsaufnahme 12.2W
Nennstrom 0.51A
Lüftstrom 204.21m3/h
Lärmbelastung 57.6dBA
Statischer Druck 18.02mm
H2O
Lager-Art kugelförmig
Drehzahl 4900
(±10%)Umdr./Min
Gewicht 190g
Strom- und Leistungsaufnahmetoleranz ±15%
Min. Isolationswiderstand 10MΩ
Rotormaterial Thermoplast
Gehäusematerial Thermoplast
Isolationsklasse A
Ausgänge 2
Leitungen
Betriebstemperatur -10...70°C
Leitungslänge 300mm
Lüfterantrieb Bürstenloser
DC-Motor
Entflammbarkeitsklasse UL94V-0
Zusatzfunktionen AutoRestart
Betriebsspannung 10...27.6V
Leitungsgröße 28AWG
Produktcode
56130
Verwandte Produkte PMD2409PMB1 (PMD2409PMB1-A(2).GN) Sunon
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
+3 |
Befestigung für Ventilatore und Gitter, Plastikklammer FSP-1 Produktcode: 62414 |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Beschreibung: Befestigung |
verfügbar: 306 Stück
|
|
|||||||
+1 |
Befestigung für Ventilatore und Gitter, Plastikklammer FSP-2 Produktcode: 26792 |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Beschreibung: Befestigung |
verfügbar: 432 Stück
|
|
Weitere Produktangebote PMD2409PMB1 (PMD2409PMB1-A(2).GN) nach Preis ab 12.91 EUR bis 32.02 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PMD2409PMB1-A(2).GN | Hersteller : SUNON |
Category: DC24V Fans Description: Fan: DC; axial; 24VDC; 92x92x38mm; 204.21m3/h; 57.6dBA; Len: 300mm Type of fan: DC Kind of fan: axial Supply voltage: 24V DC Operating voltage: 10...27.6V Fan dimensions: 92x92x38mm Power consumption: 12.2W Current rating: 0.51A Fan efficiency: 204.21m3/h Noise level: 57.6dBA Kind of Bearing: ball bearing Rotational rate/speed: 4900 (±10%)rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.3m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 18.02mm H2O Wire size: 28AWG Anzahl je Verpackung: 1 Stücke |
auf Bestellung 1588 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||
PMD2409PMB1-A(2).GN | Hersteller : SUNON |
Category: DC24V Fans Description: Fan: DC; axial; 24VDC; 92x92x38mm; 204.21m3/h; 57.6dBA; Len: 300mm Type of fan: DC Kind of fan: axial Supply voltage: 24V DC Operating voltage: 10...27.6V Fan dimensions: 92x92x38mm Power consumption: 12.2W Current rating: 0.51A Fan efficiency: 204.21m3/h Noise level: 57.6dBA Kind of Bearing: ball bearing Rotational rate/speed: 4900 (±10%)rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.3m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 18.02mm H2O Wire size: 28AWG |
auf Bestellung 1588 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
PMD2409PMB1-A(2).GN | Hersteller : Sunon | PMD2409PMB1-A (2).GN |
auf Bestellung 1951 Stücke: Lieferzeit 14-21 Tag (e) |
|
Mit diesem Produkt kaufen
Защита вентилятора 92x92, металл (GT2-7104) Produktcode: 114926 |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 92x92 mm
Beschreibung: Решітки для захисту
500 Stück - erwartet 30.07.2024
Anzahl | Preis ohne MwSt |
---|---|
1+ | 0.4 EUR |
XT60-M Produktcode: 142693 |
Steckverbinder, Reihenklemmen > Kleinleistungs Steckverbinder
Beschreibung: Вилка живлення DC. XT60. Контакт "тато", корпус "мама". Кількість контактів: 2. На провід, під пайку. Номінальний струм: 30А. Номінальна напруга: 500В. Робоча температура: -20 ... 120 ° C
Stecker/Buchse: Розетка
Anzahl Kontakte: 2
Серія роз’єма: XT60
Монтаж: на провід
5000 Stück - erwartet 09.07.2024

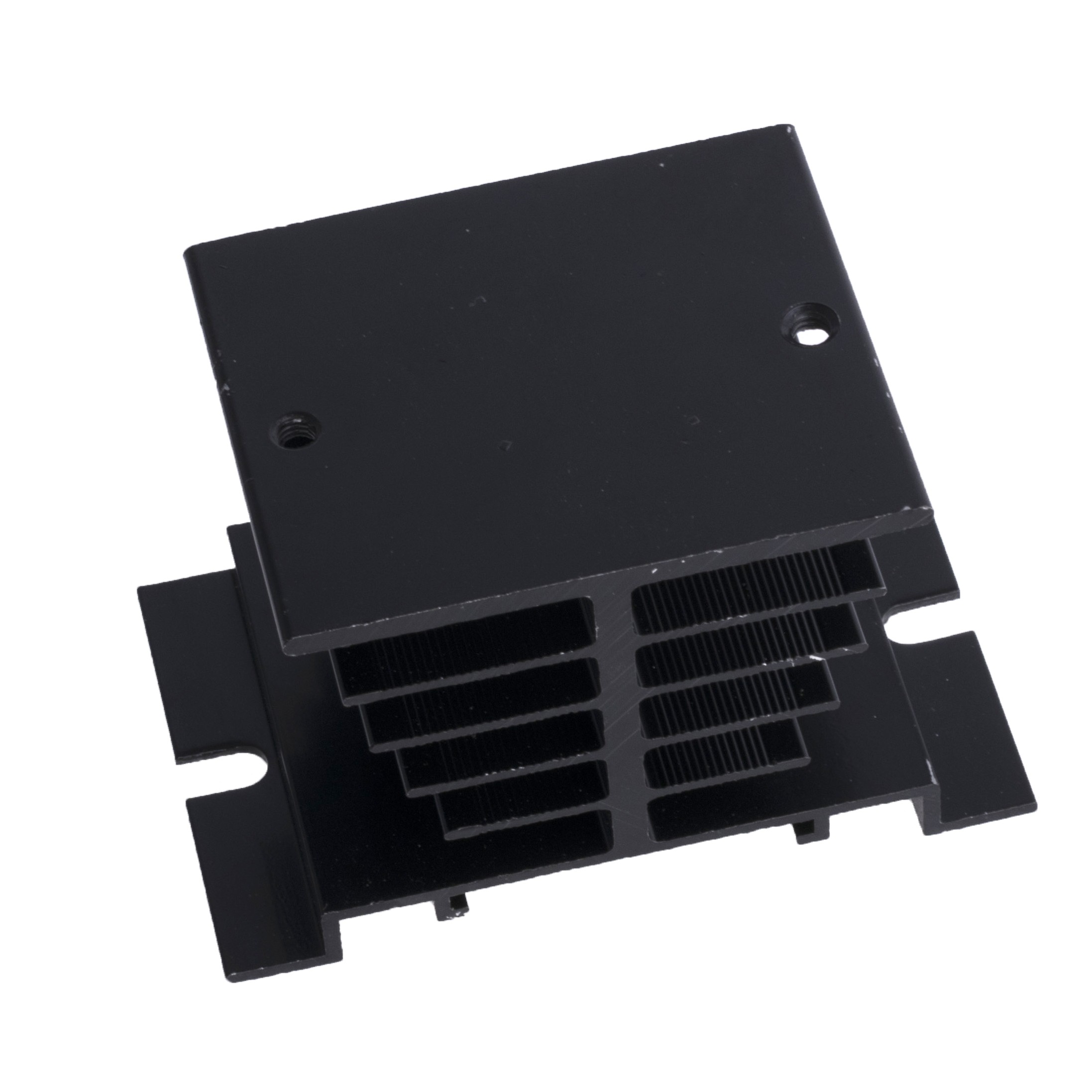

Радиатор к однофазным реле 10A-40A (size S: 80x50x50мм, цвет черный) Produktcode: 170074 |
Gehäuse, Halter, Montage- und Installationselemente > Radiatoren
Beschreibung: Радіатор 80х50х50мм для SSR реле зі струмом навантаження 10A-40A. Колір: чорний

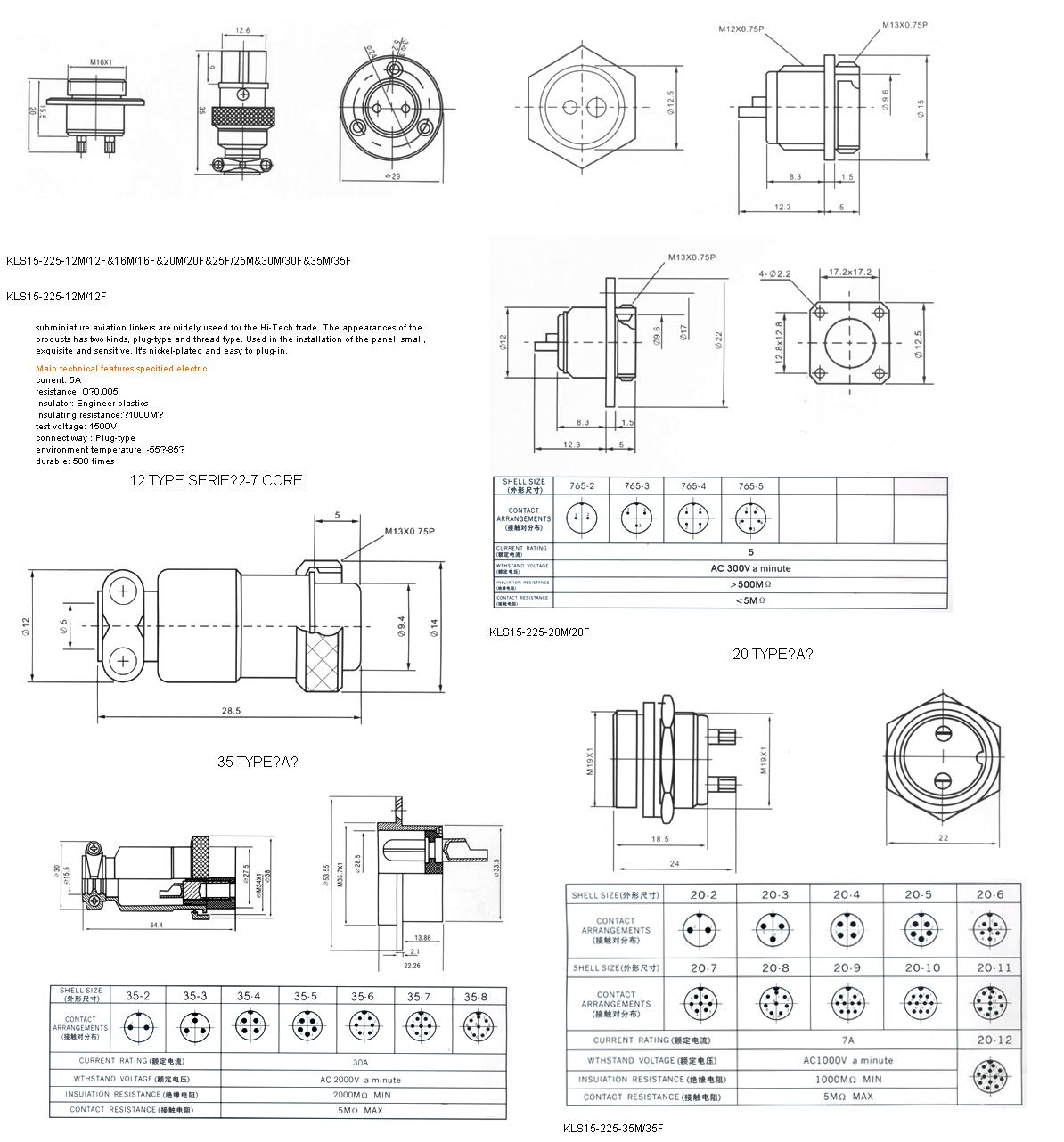

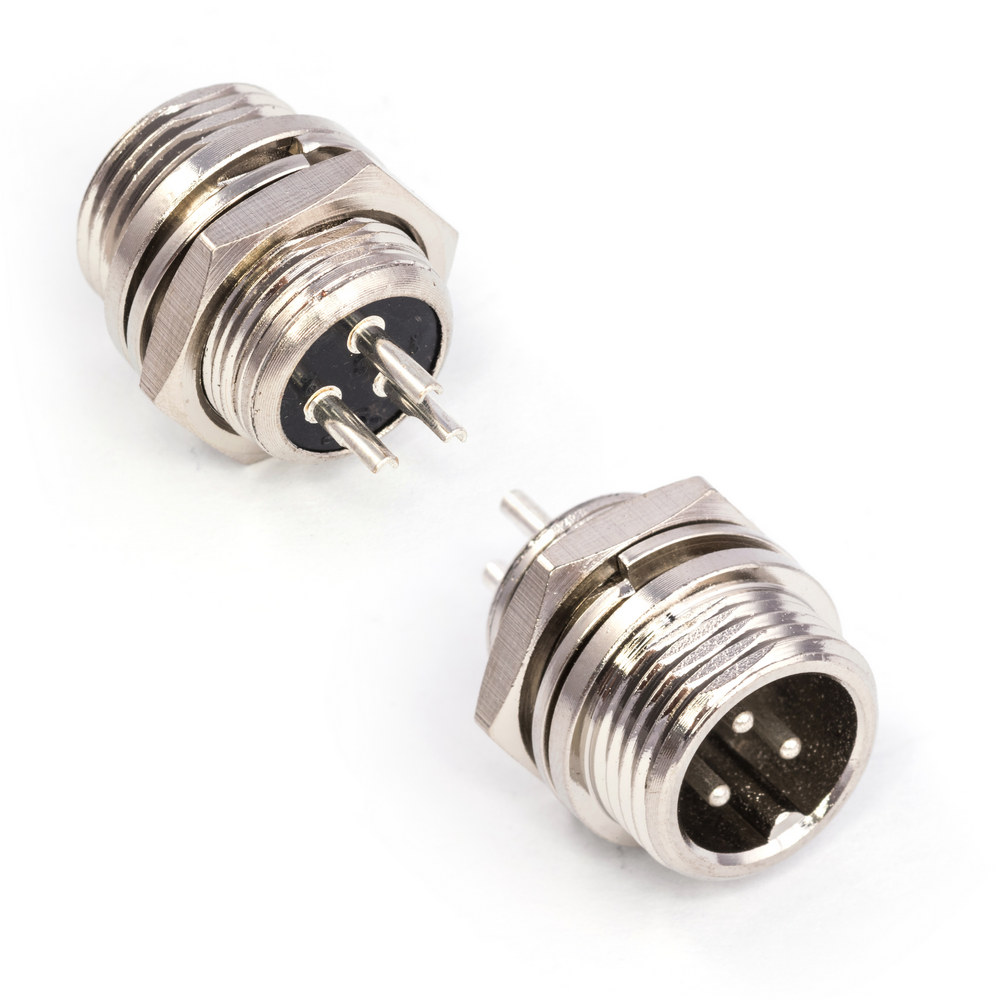

KLS15-225-M12-3M1 (Steckdose block 3-х Kont., Gewindeanschluss) Produktcode: 56592 |
Steckverbinder, Reihenklemmen > Rundsteckverbinder (Strom, mic)
Тип: Steckdose block (Anschlussgewinde М12) 3-х Kontakte, Kontakte - Stifte; 5А, 125V; Länge ohne Ausg. 15,6mm, Durchmesser Bohrloch 13mm; Feuchtigkeitsschutz IP55. Gegenstück KLS15-225-M12-3F1 und ähnliche
Опис: rund
Гніздо або штекер: Buchse (Steckdose)
К-сть контактів: 3
Вид: на панель
Anzahl | Preis ohne MwSt |
---|---|
1+ | 0.84 EUR |
10+ | 0.7 EUR |
100+ | 0.62 EUR |
