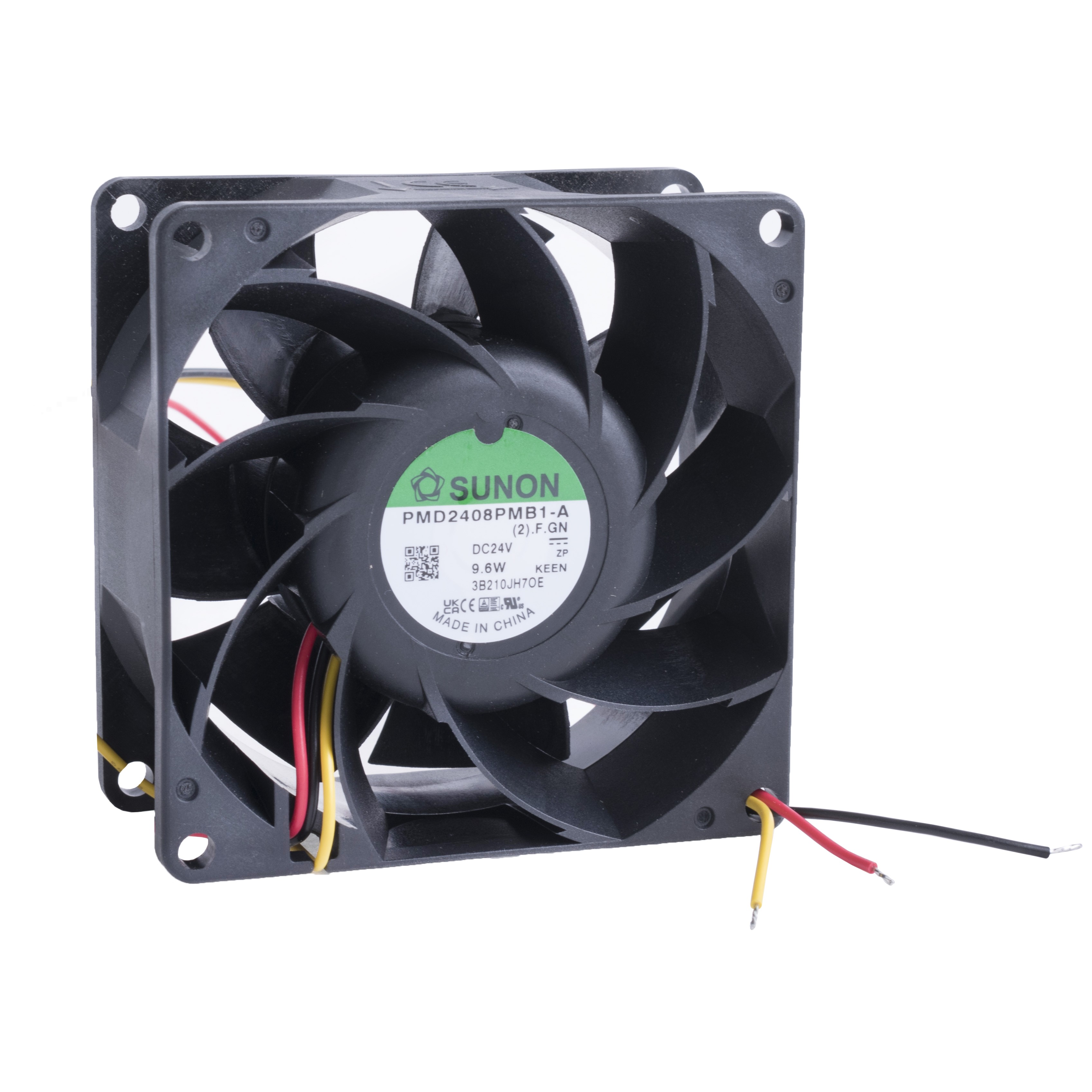

PMD2408PMB1-A.(2).F.GN SUNON
Hersteller: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x38mm; 143m3/h; 55.2dBA; ball bearing
Operating voltage: 10...27.6V
Leads: lead x3
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: ball bearing
Fan efficiency: 143m3/h
Static pressure: 18.8mm H2O
Noise level: 55.2dBA
Rotational rate/speed: 5700 (±10%)rpm
Current and power consumption tolerance: ±15%
Power consumption: 9.6W
Wire size: 24AWG
Cable length: 0.3m
Additional functions: autorestart
Signal output: F type
Kind of fan: axial
Min. insulation resistance: 10MΩ
Enclosure material: thermoplastic
Current rating: 0.4A
Supply voltage: 24V DC
Type of fan: DC
Fan dimensions: 80x80x38mm
Fan motor: brushless DC
Impeller material: thermoplastic
Anzahl je Verpackung: 1 Stücke
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x38mm; 143m3/h; 55.2dBA; ball bearing
Operating voltage: 10...27.6V
Leads: lead x3
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: ball bearing
Fan efficiency: 143m3/h
Static pressure: 18.8mm H2O
Noise level: 55.2dBA
Rotational rate/speed: 5700 (±10%)rpm
Current and power consumption tolerance: ±15%
Power consumption: 9.6W
Wire size: 24AWG
Cable length: 0.3m
Additional functions: autorestart
Signal output: F type
Kind of fan: axial
Min. insulation resistance: 10MΩ
Enclosure material: thermoplastic
Current rating: 0.4A
Supply voltage: 24V DC
Type of fan: DC
Fan dimensions: 80x80x38mm
Fan motor: brushless DC
Impeller material: thermoplastic
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3520 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
5+ | 16.97 EUR |
10+ | 15.63 EUR |
50+ | 14.27 EUR |
200+ | 12.91 EUR |
