![PIC16F18114T-I/SN PIC16F18114T-I/SN](https://mm.digikey.com/Volume0/opasdata/d220001/medias/images/4346/150%7EC04-057%7ESN%2C-OA%7E8.jpg)

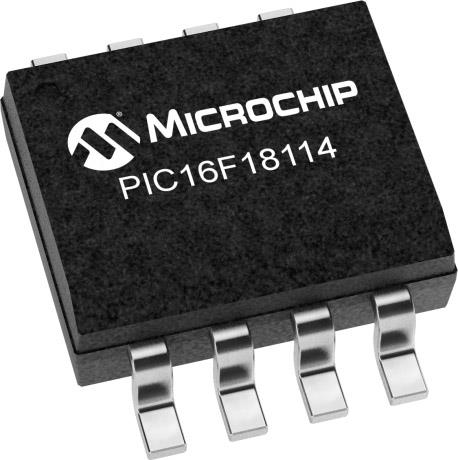

PIC16F18114T-I/SN Microchip Technology
![PIC16F18114-15-24-25-44-45-Microcontroller-Data-Sheet-DS40002404.pdf](/images/adobe-acrobat.png)
Description: IC MCU 8BIT 7KB FLASH 8SOIC
Packaging: Cut Tape (CT)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Speed: 32MHz
Program Memory Size: 7KB (7K x 8)
RAM Size: 512 x 8
Operating Temperature: -40°C ~ 85°C (TA)
Oscillator Type: External, Internal
Program Memory Type: FLASH
Core Processor: PIC
Data Converters: A/D 17x12b SAR; D/A 2x8b
Core Size: 8-Bit
Voltage - Supply (Vcc/Vdd): 1.8V ~ 5.5V
Connectivity: I2C, LINbus, RS-232, RS-485, SPI, UART/USART
Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
Supplier Device Package: 8-SOIC
Number of I/O: 5
auf Bestellung 3272 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
13+ | 1.39 EUR |
25+ | 1.28 EUR |
100+ | 1.15 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PIC16F18114T-I/SN Microchip Technology
Category: 8-bit PIC family, Description: IC: PIC microcontroller; 32MHz; 1.8÷5.5VDC; SMD; SOIC8; PIC16, Type of integrated circuit: PIC microcontroller, Clock frequency: 32MHz, Interface: ADC; EUSART; ICSP; LIN; MSSP (SPI / I2C); RS232; RS485, Supply voltage: 1.8...5.5V DC, Mounting: SMD, Case: SOIC8, Integrated circuit features: Brown Out Reset (BOR); CCP; CLC; CWG; DIA; FVR; HLT; NCO; PoR; PPS; SAF; watchdog; zero cross detect, Number of inputs/outputs: 6, Number of 8bit timers: 2, Number of 16bit timers: 2, Kind of architecture: Harvard 8bit, Family: PIC16, Kind of package: reel; tape, Memory: 128B EEPROM; 0.5kB SRAM; 7kB FLASH, Operating temperature: -40...85°C, Number of comparators: 2, Number of 12bit A/D converters: 5, Number of output compare channels: 2, Number of input capture channels: 2.
Weitere Produktangebote PIC16F18114T-I/SN nach Preis ab 1.17 EUR bis 1.41 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
PIC16F18114T-I/SN | Hersteller : Microchip Technology |
![]() |
auf Bestellung 3280 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||
![]() |
PIC16F18114T-I/SN | Hersteller : Microchip Technology |
![]() Packaging: Tape & Reel (TR) Package / Case: 8-SOIC (0.154", 3.90mm Width) Mounting Type: Surface Mount Speed: 32MHz Program Memory Size: 7KB (7K x 8) RAM Size: 512 x 8 Operating Temperature: -40°C ~ 85°C (TA) Oscillator Type: External, Internal Program Memory Type: FLASH Core Processor: PIC Data Converters: A/D 17x12b SAR; D/A 2x8b Core Size: 8-Bit Voltage - Supply (Vcc/Vdd): 1.8V ~ 5.5V Connectivity: I2C, LINbus, RS-232, RS-485, SPI, UART/USART Peripherals: Brown-out Detect/Reset, POR, PWM, WDT Supplier Device Package: 8-SOIC Number of I/O: 5 |
Produkt ist nicht verfügbar |
|||||||||
PIC16F18114T-I/SN | Hersteller : MICROCHIP TECHNOLOGY |
![]() Description: IC: PIC microcontroller; 32MHz; 1.8÷5.5VDC; SMD; SOIC8; PIC16 Type of integrated circuit: PIC microcontroller Clock frequency: 32MHz Interface: ADC; EUSART; ICSP; LIN; MSSP (SPI / I2C); RS232; RS485 Supply voltage: 1.8...5.5V DC Mounting: SMD Case: SOIC8 Integrated circuit features: Brown Out Reset (BOR); CCP; CLC; CWG; DIA; FVR; HLT; NCO; PoR; PPS; SAF; watchdog; zero cross detect Number of inputs/outputs: 6 Number of 8bit timers: 2 Number of 16bit timers: 2 Kind of architecture: Harvard 8bit Family: PIC16 Kind of package: reel; tape Memory: 128B EEPROM; 0.5kB SRAM; 7kB FLASH Operating temperature: -40...85°C Number of comparators: 2 Number of 12bit A/D converters: 5 Number of output compare channels: 2 Number of input capture channels: 2 |
Produkt ist nicht verfügbar |
