![PIC16F15245-I/P PIC16F15245-I/P](https://ce8dc832c.cloudimg.io/v7/_cdn_/07/A2/90/00/0/600688_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new_render3d.png&wat_scale=100p&ci_sign=eeef8c2808ffff229aeeab0560fadfe7c443bc0f)

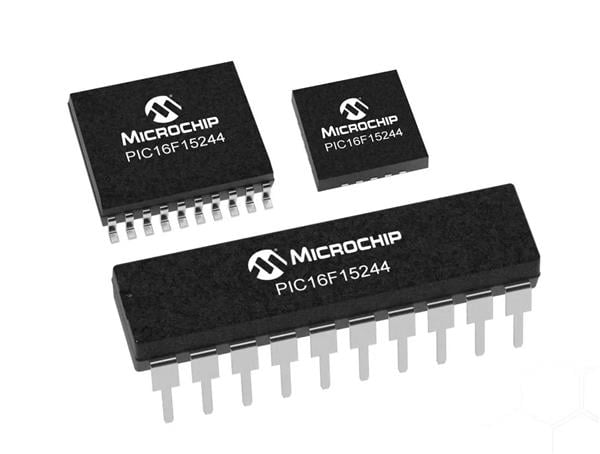

PIC16F15245-I/P MICROCHIP TECHNOLOGY
![PIC16F15225-45-Microcontroller.PDF](/images/adobe-acrobat.png)
Category: 8-bit PIC family
Description: IC: PIC microcontroller; 14kB; 32MHz; 1.8÷5.5VDC; THT; DIP20; PIC16
Type of integrated circuit: PIC microcontroller
Program memory: 14kB
Clock frequency: 32MHz
Interface: EUSART; MSSP (SPI / I2C); SMBus
Supply voltage: 1.8...5.5V DC
Mounting: THT
Case: DIP20
Integrated circuit features: Brown Out Reset (BOR); CCP x2; PoR; watchdog
Number of inputs/outputs: 18/17
Number of 8bit timers: 1
Number of 16bit timers: 2
Kind of architecture: Harvard 8bit
Family: PIC16
Number of capacitive channels: 14
Kind of package: tube
Memory: 1kB SRAM; 14000B FLASH
Operating temperature: -40...85°C
Number of PWM channels: 2
Terminal pitch: 2.54mm
Operating frequency: 0...32MHz
Number of output compare channels: 2
Number of input capture channels: 2
auf Bestellung 210 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
30+ | 2.42 EUR |
31+ | 2.35 EUR |
32+ | 2.26 EUR |
34+ | 2.16 EUR |
110+ | 2.12 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PIC16F15245-I/P MICROCHIP TECHNOLOGY
Description: MICROCHIP - PIC16F15245-I/P - 8-Bit-MCU, PIC16 Family PIC16F152xx Series Microcontrollers, PIC16, 32 MHz, 14 KB, 20 Pin(s), DIP, tariffCode: 85423190, rohsCompliant: YES, ADC-Auflösung: 10 Bit, IC-Montage: Oberflächenmontage, Bausteinkern: PIC16, hazardous: false, rohsPhthalatesCompliant: YES, Qualifikation: -, IC-Gehäuse / Bauform: DIP, usEccn: EAR99, Betriebstemperatur, min.: -40°C, ADC-Kanäle: 12Kanäle, Programmspeichergröße: 14KB, Versorgungsspannung, min.: 1.8V, Betriebsfrequenz, max.: 32MHz, euEccn: NLR, MCU-Familie: PIC16, RAM-Speichergröße: 1KB, MCU-Baureihe: PIC16F152xx, Anzahl der Ein-/Ausgänge: 17I/O's, Anzahl der Pins: 20Pin(s), Produktpalette: PIC16 Family PIC16F152xx Series Microcontrollers, productTraceability: Yes-Date/Lot Code, Versorgungsspannung, max.: 5.5V, Schnittstellen: EUSART, I2C, SPI, Betriebstemperatur, max.: 85°C.
Weitere Produktangebote PIC16F15245-I/P nach Preis ab 2.12 EUR bis 3.08 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
PIC16F15245-I/P | Hersteller : MICROCHIP TECHNOLOGY |
![]() Description: IC: PIC microcontroller; 14kB; 32MHz; 1.8÷5.5VDC; THT; DIP20; PIC16 Type of integrated circuit: PIC microcontroller Program memory: 14kB Clock frequency: 32MHz Interface: EUSART; MSSP (SPI / I2C); SMBus Supply voltage: 1.8...5.5V DC Mounting: THT Case: DIP20 Integrated circuit features: Brown Out Reset (BOR); CCP x2; PoR; watchdog Number of inputs/outputs: 18/17 Number of 8bit timers: 1 Number of 16bit timers: 2 Kind of architecture: Harvard 8bit Family: PIC16 Number of capacitive channels: 14 Kind of package: tube Memory: 1kB SRAM; 14000B FLASH Operating temperature: -40...85°C Number of PWM channels: 2 Terminal pitch: 2.54mm Operating frequency: 0...32MHz Number of output compare channels: 2 Number of input capture channels: 2 Anzahl je Verpackung: 1 Stücke |
auf Bestellung 210 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||
|
PIC16F15245-I/P | Hersteller : Microchip Technology |
![]() |
auf Bestellung 925 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
|
PIC16F15245-I/P | Hersteller : Microchip Technology |
![]() Packaging: Tube Package / Case: 20-DIP (0.300", 7.62mm) Mounting Type: Through Hole Speed: 32MHz Program Memory Size: 14KB (8K x 14) RAM Size: 1K x 8 Operating Temperature: -40°C ~ 85°C (TA) Oscillator Type: Internal Program Memory Type: FLASH Core Processor: PIC Data Converters: A/D 12/2x10b Core Size: 8-Bit Voltage - Supply (Vcc/Vdd): 1.8V ~ 5.5V Connectivity: I²C, LINbus, SPI, UART/USART Peripherals: Brown-out Detect/Reset, POR, PWM, WDT Supplier Device Package: 20-PDIP Part Status: Active Number of I/O: 17 DigiKey Programmable: Not Verified |
auf Bestellung 188 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
![]() |
PIC16F15245-I/P | Hersteller : MICROCHIP |
![]() tariffCode: 85423190 rohsCompliant: YES ADC-Auflösung: 10 Bit IC-Montage: Oberflächenmontage Bausteinkern: PIC16 hazardous: false rohsPhthalatesCompliant: YES Qualifikation: - IC-Gehäuse / Bauform: DIP usEccn: EAR99 Betriebstemperatur, min.: -40°C ADC-Kanäle: 12Kanäle Programmspeichergröße: 14KB Versorgungsspannung, min.: 1.8V Betriebsfrequenz, max.: 32MHz euEccn: NLR MCU-Familie: PIC16 RAM-Speichergröße: 1KB MCU-Baureihe: PIC16F152xx Anzahl der Ein-/Ausgänge: 17I/O's Anzahl der Pins: 20Pin(s) Produktpalette: PIC16 Family PIC16F152xx Series Microcontrollers productTraceability: Yes-Date/Lot Code Versorgungsspannung, max.: 5.5V Schnittstellen: EUSART, I2C, SPI Betriebstemperatur, max.: 85°C |
auf Bestellung 121 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||
PIC16F15245-I/P | Hersteller : Microchip Technology |
![]() |
Produkt ist nicht verfügbar |
||||||||||||||
PIC16F15245-I/P | Hersteller : Microchip Technology |
![]() |
Produkt ist nicht verfügbar |
