![PIC16F1517-I/MV PIC16F1517-I/MV](https://mm.digikey.com/Volume0/opasdata/d220001/medias/images/319/150;C04-156;MV;40.jpg)

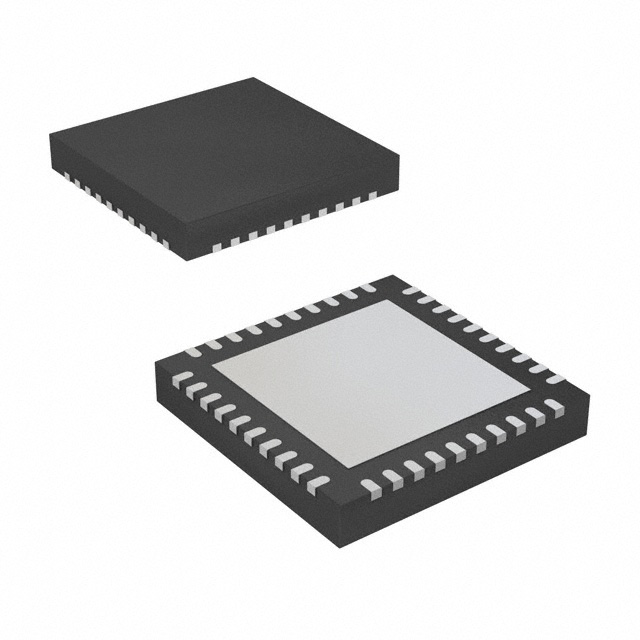

PIC16F1517-I/MV Microchip Technology
![40001452F.pdf](/images/adobe-acrobat.png)
Description: IC MCU 8BIT 14KB FLASH 40UQFN
Packaging: Tube
Package / Case: 40-UFQFN Exposed Pad
Mounting Type: Surface Mount
Speed: 20MHz
Program Memory Size: 14KB (8K x 14)
RAM Size: 512 x 8
Operating Temperature: -40°C ~ 85°C (TA)
Oscillator Type: Internal
Program Memory Type: FLASH
Core Processor: PIC
Data Converters: A/D 28x10b
Core Size: 8-Bit
Voltage - Supply (Vcc/Vdd): 2.3V ~ 5.5V
Connectivity: I²C, LINbus, SPI, UART/USART
Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
Supplier Device Package: 40-UQFN (5x5)
Part Status: Active
Number of I/O: 36
DigiKey Programmable: Not Verified
auf Bestellung 260 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
5+ | 3.75 EUR |
25+ | 3.45 EUR |
100+ | 3.13 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PIC16F1517-I/MV Microchip Technology
Category: 8-bit PIC family, Description: IC: PIC microcontroller; 14kB; 20MHz; 2.3÷5.5VDC; SMD; UQFN40, Type of integrated circuit: PIC microcontroller, Program memory: 14kB, Clock frequency: 20MHz, Interface: A/E/USART; EUSART; ICSP; LIN; MSSP (SPI / I2C); PMBus; RS232; RS485; SMBus, Supply voltage: 2.3...5.5V DC, Mounting: SMD, Case: UQFN40, Integrated circuit features: Brown Out Reset (BOR); PoR; watchdog, Number of inputs/outputs: 36/35, Number of 8bit timers: 2, Number of 16bit timers: 1, Kind of architecture: Harvard 8bit, Family: PIC16, Number of capacitive channels: 28, Kind of package: in-tray; tube, Memory: 1kB SRAM; 14000B FLASH, Operating temperature: -40...85°C, Terminal pitch: 0.4mm, Operating frequency: 0...20MHz, Number of output compare channels: 2, Number of input capture channels: 2, Built-in generator: 31kHz...16MHz, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote PIC16F1517-I/MV nach Preis ab 3.19 EUR bis 3.84 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
PIC16F1517-I/MV | Hersteller : Microchip Technology |
![]() |
auf Bestellung 277 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||
![]() |
PIC16F1517-I/MV | Hersteller : Microchip Technology |
![]() |
Produkt ist nicht verfügbar |
|||||||||
PIC16F1517-I/MV | Hersteller : Microchip |
![]() Anzahl je Verpackung: 73 Stücke |
Produkt ist nicht verfügbar |
||||||||||
![]() |
PIC16F1517-I/MV | Hersteller : MICROCHIP TECHNOLOGY |
![]() Description: IC: PIC microcontroller; 14kB; 20MHz; 2.3÷5.5VDC; SMD; UQFN40 Type of integrated circuit: PIC microcontroller Program memory: 14kB Clock frequency: 20MHz Interface: A/E/USART; EUSART; ICSP; LIN; MSSP (SPI / I2C); PMBus; RS232; RS485; SMBus Supply voltage: 2.3...5.5V DC Mounting: SMD Case: UQFN40 Integrated circuit features: Brown Out Reset (BOR); PoR; watchdog Number of inputs/outputs: 36/35 Number of 8bit timers: 2 Number of 16bit timers: 1 Kind of architecture: Harvard 8bit Family: PIC16 Number of capacitive channels: 28 Kind of package: in-tray; tube Memory: 1kB SRAM; 14000B FLASH Operating temperature: -40...85°C Terminal pitch: 0.4mm Operating frequency: 0...20MHz Number of output compare channels: 2 Number of input capture channels: 2 Built-in generator: 31kHz...16MHz Anzahl je Verpackung: 1 Stücke |
Produkt ist nicht verfügbar |
|||||||||
![]() |
PIC16F1517-I/MV | Hersteller : MICROCHIP TECHNOLOGY |
![]() Description: IC: PIC microcontroller; 14kB; 20MHz; 2.3÷5.5VDC; SMD; UQFN40 Type of integrated circuit: PIC microcontroller Program memory: 14kB Clock frequency: 20MHz Interface: A/E/USART; EUSART; ICSP; LIN; MSSP (SPI / I2C); PMBus; RS232; RS485; SMBus Supply voltage: 2.3...5.5V DC Mounting: SMD Case: UQFN40 Integrated circuit features: Brown Out Reset (BOR); PoR; watchdog Number of inputs/outputs: 36/35 Number of 8bit timers: 2 Number of 16bit timers: 1 Kind of architecture: Harvard 8bit Family: PIC16 Number of capacitive channels: 28 Kind of package: in-tray; tube Memory: 1kB SRAM; 14000B FLASH Operating temperature: -40...85°C Terminal pitch: 0.4mm Operating frequency: 0...20MHz Number of output compare channels: 2 Number of input capture channels: 2 Built-in generator: 31kHz...16MHz |
Produkt ist nicht verfügbar |
