![PF92381BX-000U-A99 PF92381BX-000U-A99](https://ce8dc832c.cloudimg.io/v7/_cdn_/D0/2B/50/00/0/373261_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=d615de035bdfd53d3af665dcdf7f8dad8e04444f)

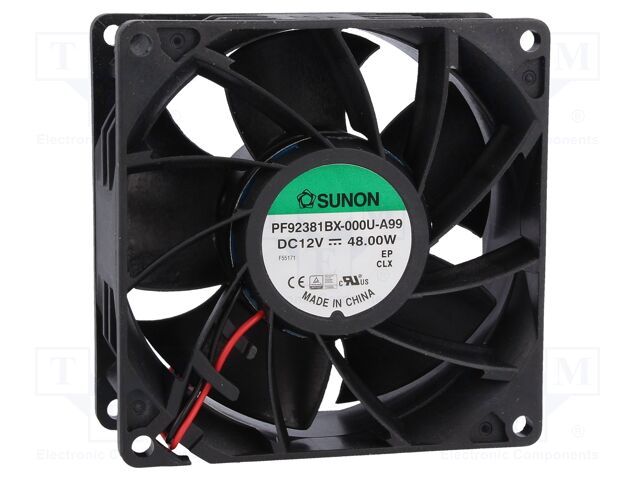

PF92381BX-000U-A99 SUNON
![PF92381BX-A99.pdf](/images/adobe-acrobat.png)
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 92x92x38mm; 309.89m3/h; 74.1dBA; Len: 300mm
Supply voltage: 12V DC
Cable length: 0.3m
Operating temperature: -10...70°C
Current rating: 4A
Additional functions: autorestart
Kind of fan: axial
Min. insulation resistance: 10MΩ
Enclosure material: thermoplastic
Leads: lead x2
Operating voltage: 6.5...13.2V
Type of fan: DC
Fan dimensions: 92x92x38mm
Fan motor: brushless DC
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: ball bearing
Fan efficiency: 309.89m3/h
Static pressure: 74.64mm H2O
Noise level: 74.1dBA
Rotational rate/speed: 13000 (±10%)rpm
Current and power consumption tolerance: ±15%
Power consumption: 48W
Wire size: 24AWG
Anzahl je Verpackung: 1 Stücke
auf Bestellung 82 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
3+ | 27.17 EUR |
10+ | 24.45 EUR |
50+ | 22.55 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PF92381BX-000U-A99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 92x92x38mm; 309.89m3/h; 74.1dBA; Len: 300mm, Supply voltage: 12V DC, Cable length: 0.3m, Operating temperature: -10...70°C, Current rating: 4A, Additional functions: autorestart, Kind of fan: axial, Min. insulation resistance: 10MΩ, Enclosure material: thermoplastic, Leads: lead x2, Operating voltage: 6.5...13.2V, Type of fan: DC, Fan dimensions: 92x92x38mm, Fan motor: brushless DC, Impeller material: thermoplastic, Flammability rating: UL94V-0, Insulation class: A, Kind of Bearing: ball bearing, Fan efficiency: 309.89m3/h, Static pressure: 74.64mm H2O, Noise level: 74.1dBA, Rotational rate/speed: 13000 (±10%)rpm, Current and power consumption tolerance: ±15%, Power consumption: 48W, Wire size: 24AWG, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote PF92381BX-000U-A99 nach Preis ab 22.55 EUR bis 27.17 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
PF92381BX-000U-A99 | Hersteller : SUNON |
![]() Description: Fan: DC; axial; 12VDC; 92x92x38mm; 309.89m3/h; 74.1dBA; Len: 300mm Supply voltage: 12V DC Cable length: 0.3m Operating temperature: -10...70°C Current rating: 4A Additional functions: autorestart Kind of fan: axial Min. insulation resistance: 10MΩ Enclosure material: thermoplastic Leads: lead x2 Operating voltage: 6.5...13.2V Type of fan: DC Fan dimensions: 92x92x38mm Fan motor: brushless DC Impeller material: thermoplastic Flammability rating: UL94V-0 Insulation class: A Kind of Bearing: ball bearing Fan efficiency: 309.89m3/h Static pressure: 74.64mm H2O Noise level: 74.1dBA Rotational rate/speed: 13000 (±10%)rpm Current and power consumption tolerance: ±15% Power consumption: 48W Wire size: 24AWG |
auf Bestellung 82 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||
PF92381BX-000U-A99 | Hersteller : Sunon Fans |
![]() Features: Auto Restart Packaging: Box Voltage - Rated: 12VDC Size / Dimension: Square - 92mm L x 92mm H Bearing Type: Ball RPM: 13000 RPM Air Flow: 182.4 CFM (5.11m³/min) Width: 38.00mm Weight: 0.463 lb (210.01 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 72.1dB(A) Static Pressure: 2.940 in H2O (732.3 Pa) Part Status: Active Power (Watts): 48 W |
Produkt ist nicht verfügbar |
||||||||||
![]() |
PF92381BX-000U-A99 | Hersteller : Sunon |
![]() |
Produkt ist nicht verfügbar |
