![NHD-0420D3Z-NSW-BBW-V3 NHD-0420D3Z-NSW-BBW-V3](https://ce8dc832c.cloudimg.io/v7/_cdn_/53/22/E0/00/0/926261_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=43f03a9e7f123fbb849c29e263b1c0d32389d13c)

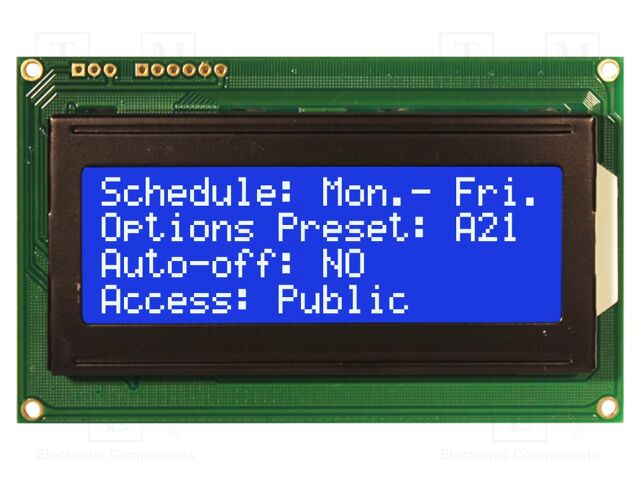

NHD-0420D3Z-NSW-BBW-V3 NEWHAVEN DISPLAY INTERNATIONAL
![NHD-0420D3Z-NWB3.pdf](/images/adobe-acrobat.png)
Category: LCD alphanumeric displays
Description: Display: LCD; alphanumeric; STN Negative; 20x2; blue; 90x60x13.5mm
Supply voltage: 5V DC
Operating temperature: -20...70°C
Type of display: LCD
Character width: 2.95mm
Kind of controller: PIC 16F690
Display technology: STN Negative
Window dimensions (H x W): 76x25.2mm
Backgr. colour: blue
Number of characters (columns x lines): 20x2
Dimensions: 90x60x13.5mm
Illumination: LED
Contacts pitch: 2.54mm
Connector pinout layout: 1x3; 1x6
Supported character set: English; Europe
Backlight colour: white
Number of pins: 9
Kind of display: alphanumeric
Digit height: 4.75mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 10 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
3+ | 35.52 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details NHD-0420D3Z-NSW-BBW-V3 NEWHAVEN DISPLAY INTERNATIONAL
Category: LCD alphanumeric displays, Description: Display: LCD; alphanumeric; STN Negative; 20x2; blue; 90x60x13.5mm, Supply voltage: 5V DC, Operating temperature: -20...70°C, Type of display: LCD, Character width: 2.95mm, Kind of controller: PIC 16F690, Display technology: STN Negative, Window dimensions (H x W): 76x25.2mm, Backgr. colour: blue, Number of characters (columns x lines): 20x2, Dimensions: 90x60x13.5mm, Illumination: LED, Contacts pitch: 2.54mm, Connector pinout layout: 1x3; 1x6, Supported character set: English; Europe, Backlight colour: white, Number of pins: 9, Kind of display: alphanumeric, Digit height: 4.75mm, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote NHD-0420D3Z-NSW-BBW-V3 nach Preis ab 35.28 EUR bis 56.01 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
NHD-0420D3Z-NSW-BBW-V3 | Hersteller : NEWHAVEN DISPLAY INTERNATIONAL |
![]() Description: Display: LCD; alphanumeric; STN Negative; 20x2; blue; 90x60x13.5mm Supply voltage: 5V DC Operating temperature: -20...70°C Type of display: LCD Character width: 2.95mm Kind of controller: PIC 16F690 Display technology: STN Negative Window dimensions (H x W): 76x25.2mm Backgr. colour: blue Number of characters (columns x lines): 20x2 Dimensions: 90x60x13.5mm Illumination: LED Contacts pitch: 2.54mm Connector pinout layout: 1x3; 1x6 Supported character set: English; Europe Backlight colour: white Number of pins: 9 Kind of display: alphanumeric Digit height: 4.75mm |
auf Bestellung 10 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
![]() |
NHD-0420D3Z-NSW-BBW-V3 | Hersteller : Newhaven Display Intl |
![]() Packaging: Tray Display Type: STN - Super-Twisted Nematic Display Mode: Transmissive Backlight: LED - White Interface: I2C, RS-232, SPI Operating Temperature: -20°C ~ 70°C Voltage - Supply: 4.7V ~ 5.5V Viewing Area: 76.00mm L x 25.20mm W Character Size: 4.75mm H x 2.95mm W Display Format: 20 x 4 Character Format: 5 x 8 Dots Dot Size: 0.55mm W x 0.55mm H Controller Type: PIC16F699 Outline L x W x H: 98.00mm x 60.00mm x 13.50mm Text Color: White Background Color: Blue Part Status: Active Number of Characters: 80.0 |
auf Bestellung 240 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
![]() |
NHD-0420D3Z-NSW-BBW-V3 | Hersteller : Newhaven Display |
![]() |
auf Bestellung 892 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
NHD-0420D3Z-NSW-BBW-V3 | Hersteller : New Haven Displays |
![]() |
auf Bestellung 519 Stücke: Lieferzeit 14-21 Tag (e) |
|
