![NHD-0420CW-AG3 NHD-0420CW-AG3](https://mm.digikey.com/Volume0/opasdata/d220001/medias/images/4754/MFG_NHD-0420CW-AG3.jpg)
NHD-0420CW-AG3 Newhaven Display Intl
![NHD-0420CW-AG3.pdf](/images/adobe-acrobat.png)
Description: OLED MODULE 80DIG 20 X 4 PASSIVE
Packaging: Bulk
Display Type: OLED
Display Mode: Passive
Interface: Parallel, 8-Bit, I2C, SPI
Operating Temperature: -40°C ~ 85°C
Voltage - Supply: 2.4V ~ 5.5V
Viewing Area: 72.42mm L x 22.82mm W
Character Size: 4.77mm H x 2.97mm W
Display Format: 20 x 4
Character Format: 5 x 8 Dots
Dot Size: 0.57mm W x 0.57mm H
Controller Type: US2066
Outline L x W x H: 92.00mm x 31.50mm x 2.50mm
Text Color: Green
Background Color: Black
Part Status: Active
Number of Characters: 80.0
auf Bestellung 74 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
1+ | 58.73 EUR |
5+ | 55.2 EUR |
10+ | 51.68 EUR |
50+ | 48.82 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details NHD-0420CW-AG3 Newhaven Display Intl
Category: Alphanumeric OLED displays, Description: Display: OLED; alphanumeric; 20x4; Dim: 92x31.5x6.5mm; green, Interface: I2C; parallel; SPI, Supply voltage: 2.8V DC; 5V DC, Operating temperature: -40...85°C, Dimensions: 92x31.5x6.5mm, Contacts pitch: 2.54mm, Kind of display: alphanumeric, Digit height: 4.77mm, Type of display: OLED, Character width: 2.97mm, Kind of controller: US2066, Window dimensions (H x W): 72.42x22.82mm, Number of characters (columns x lines): 20x4, Contrast: 10000:1, Display features: variable character size; wide viewing angle, Colour: green, Number of pins: 20, Connector pinout layout: 1x20, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote NHD-0420CW-AG3 nach Preis ab 54.37 EUR bis 59.75 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
NHD-0420CW-AG3 | Hersteller : Newhaven Display |
![]() |
auf Bestellung 113 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||
![]() |
NHD-0420CW-AG3 | Hersteller : NEWHAVEN DISPLAY INTERNATIONAL |

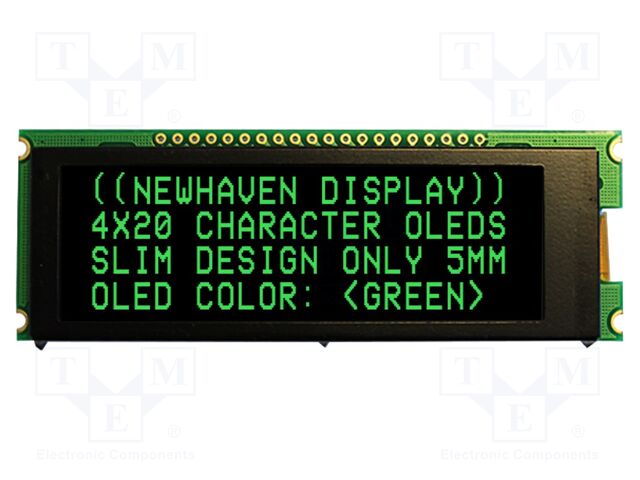

![]() Description: Display: OLED; alphanumeric; 20x4; Dim: 92x31.5x6.5mm; green Interface: I2C; parallel; SPI Supply voltage: 2.8V DC; 5V DC Operating temperature: -40...85°C Dimensions: 92x31.5x6.5mm Contacts pitch: 2.54mm Kind of display: alphanumeric Digit height: 4.77mm Type of display: OLED Character width: 2.97mm Kind of controller: US2066 Window dimensions (H x W): 72.42x22.82mm Number of characters (columns x lines): 20x4 Contrast: 10000:1 Display features: variable character size; wide viewing angle Colour: green Number of pins: 20 Connector pinout layout: 1x20 Anzahl je Verpackung: 1 Stücke |
Produkt ist nicht verfügbar |
|||||||||
![]() |
NHD-0420CW-AG3 | Hersteller : NEWHAVEN DISPLAY INTERNATIONAL |
![]() Description: Display: OLED; alphanumeric; 20x4; Dim: 92x31.5x6.5mm; green Interface: I2C; parallel; SPI Supply voltage: 2.8V DC; 5V DC Operating temperature: -40...85°C Dimensions: 92x31.5x6.5mm Contacts pitch: 2.54mm Kind of display: alphanumeric Digit height: 4.77mm Type of display: OLED Character width: 2.97mm Kind of controller: US2066 Window dimensions (H x W): 72.42x22.82mm Number of characters (columns x lines): 20x4 Contrast: 10000:1 Display features: variable character size; wide viewing angle Colour: green Number of pins: 20 Connector pinout layout: 1x20 |
Produkt ist nicht verfügbar |
