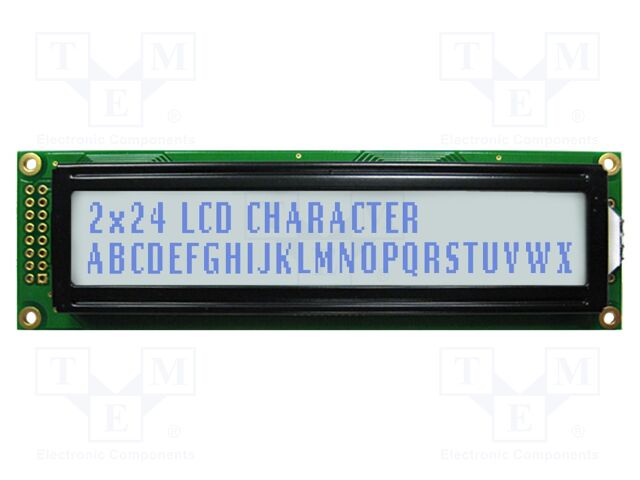

![NHD-0224AZ-FSW-GBW NHD-0224AZ-FSW-GBW](https://mm.digikey.com/Volume0/opasdata/d220001/medias/images/4752/MFG_NHD-0224AZ-FSW-GBW.jpg)
NHD-0224AZ-FSW-GBW Newhaven Display Intl
![NHD-0224AZ-FSW-GBW.pdf](/images/adobe-acrobat.png)
Description: LCD MOD 48DIG 24X2 TRANSFLCT WHT
Packaging: Bulk
Display Type: STN - Super-Twisted Nematic
Display Mode: Transflective
Backlight: LED - White
Interface: Parallel
Operating Temperature: -20°C ~ 70°C
Voltage - Supply: 4.7V ~ 5.5V
Viewing Area: 94.50mm L x 18.00mm W
Character Size: 5.55mm H x 3.20mm W
Display Format: 24 x 2
Character Format: 5 x 8 Dots
Dot Size: 0.60mm W x 0.65mm H
Controller Type: KS0066U
Outline L x W x H: 118.00mm x 36.00mm x 12.50mm
Text Color: Blue
Background Color: White
Part Status: Active
Number of Characters: 48.0
auf Bestellung 31 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
1+ | 28.27 EUR |
5+ | 26.58 EUR |
10+ | 24.88 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details NHD-0224AZ-FSW-GBW Newhaven Display Intl
Category: LCD alphanumeric displays, Description: Display: LCD; alphanumeric; STN Positive; 20x2; gray; LED; PIN: 16, Number of pins: 16, Connector pinout layout: 2x8, Operating temperature: -20...70°C, Contacts pitch: 2.54mm, Illumination: LED, Backlight colour: white, Kind of display: alphanumeric, Digit height: 5.55mm, Type of display: LCD, Character width: 3.2mm, Kind of controller: ST7066U, Display technology: STN Positive, Window dimensions (H x W): 94.5x18mm, Backgr. colour: gray, Number of characters (columns x lines): 20x2, Supply voltage: 5V DC, Dimensions: 118x36x12.5mm, Supported character set: English; Europe, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote NHD-0224AZ-FSW-GBW nach Preis ab 21.81 EUR bis 28.48 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
NHD-0224AZ-FSW-GBW | Hersteller : Newhaven Display |
![]() |
auf Bestellung 166 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
![]() |
NHD-0224AZ-FSW-GBW | Hersteller : NEWHAVEN DISPLAY INTERNATIONAL |
![]() Description: Display: LCD; alphanumeric; STN Positive; 20x2; gray; LED; PIN: 16 Number of pins: 16 Connector pinout layout: 2x8 Operating temperature: -20...70°C Contacts pitch: 2.54mm Illumination: LED Backlight colour: white Kind of display: alphanumeric Digit height: 5.55mm Type of display: LCD Character width: 3.2mm Kind of controller: ST7066U Display technology: STN Positive Window dimensions (H x W): 94.5x18mm Backgr. colour: gray Number of characters (columns x lines): 20x2 Supply voltage: 5V DC Dimensions: 118x36x12.5mm Supported character set: English; Europe Anzahl je Verpackung: 1 Stücke |
Produkt ist nicht verfügbar |
|||||||||||||||
![]() |
NHD-0224AZ-FSW-GBW | Hersteller : NEWHAVEN DISPLAY INTERNATIONAL |
![]() Description: Display: LCD; alphanumeric; STN Positive; 20x2; gray; LED; PIN: 16 Number of pins: 16 Connector pinout layout: 2x8 Operating temperature: -20...70°C Contacts pitch: 2.54mm Illumination: LED Backlight colour: white Kind of display: alphanumeric Digit height: 5.55mm Type of display: LCD Character width: 3.2mm Kind of controller: ST7066U Display technology: STN Positive Window dimensions (H x W): 94.5x18mm Backgr. colour: gray Number of characters (columns x lines): 20x2 Supply voltage: 5V DC Dimensions: 118x36x12.5mm Supported character set: English; Europe |
Produkt ist nicht verfügbar |
