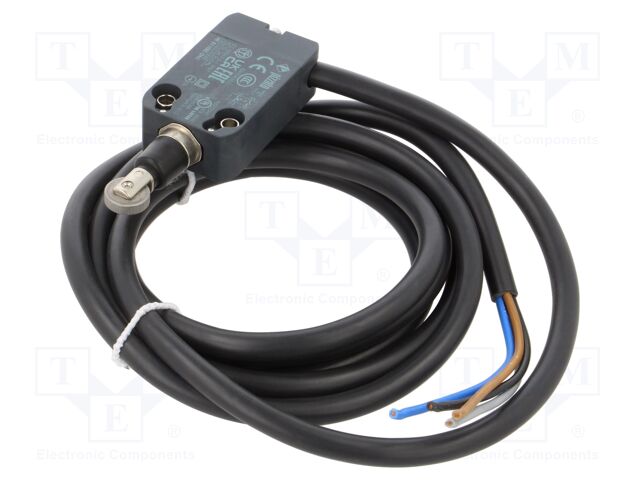

NF B110BE-DN2 PIZZATO ELETTRICA
Hersteller: PIZZATO ELETTRICA
Category: Limit Switches
Description: Limit switch; metal roller Ø12mm; NO + NC; 10A; max.250VAC; IP67
Type of sensor: limit switch
Kind of actuator: metal roller Ø12mm
Output configuration: NO + NC
Contact current max.: 10A
Switched voltage: max. 250V AC; max. 250V DC
Connection: lead 2m
IP rating: IP67
Body dimensions: 39x30x16mm
Number of mounting holes: 2
Operating temperature: -25...80°C
Body material: plastic
AC contacts rating @R: 4A / 250V AC
DC contacts rating @R: 0.3A / 250V DC
Switching frequency max: 1Hz
Mounting holes pitch: 20mm
Switches features: snap action contacts
Anzahl je Verpackung: 1 Stücke
Category: Limit Switches
Description: Limit switch; metal roller Ø12mm; NO + NC; 10A; max.250VAC; IP67
Type of sensor: limit switch
Kind of actuator: metal roller Ø12mm
Output configuration: NO + NC
Contact current max.: 10A
Switched voltage: max. 250V AC; max. 250V DC
Connection: lead 2m
IP rating: IP67
Body dimensions: 39x30x16mm
Number of mounting holes: 2
Operating temperature: -25...80°C
Body material: plastic
AC contacts rating @R: 4A / 250V AC
DC contacts rating @R: 0.3A / 250V DC
Switching frequency max: 1Hz
Mounting holes pitch: 20mm
Switches features: snap action contacts
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details NF B110BE-DN2 PIZZATO ELETTRICA
Category: Limit Switches, Description: Limit switch; metal roller Ø12mm; NO + NC; 10A; max.250VAC; IP67, Type of sensor: limit switch, Kind of actuator: metal roller Ø12mm, Output configuration: NO + NC, Contact current max.: 10A, Switched voltage: max. 250V AC; max. 250V DC, Connection: lead 2m, IP rating: IP67, Body dimensions: 39x30x16mm, Number of mounting holes: 2, Operating temperature: -25...80°C, Body material: plastic, AC contacts rating @R: 4A / 250V AC, DC contacts rating @R: 0.3A / 250V DC, Switching frequency max: 1Hz, Mounting holes pitch: 20mm, Switches features: snap action contacts, Anzahl je Verpackung: 1 Stücke.
