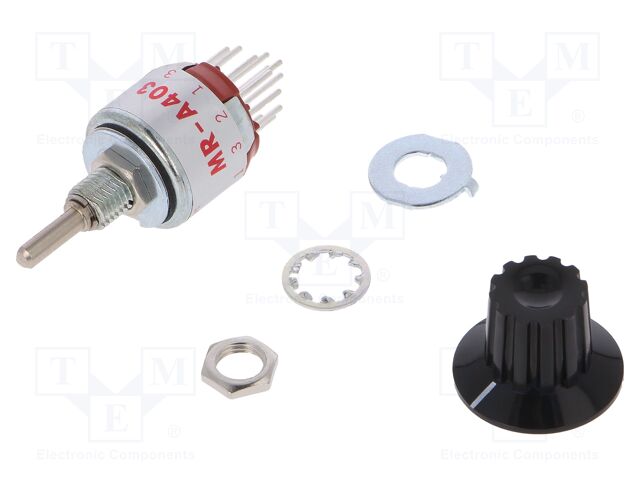

MRA403-A NKK SWITCHES
Hersteller: NKK SWITCHES
Category: Rotary Switches
Description: Switch: rotary; Pos: 3; 4P3T; 0.01A/28VAC; 0.01A/28VDC; -10÷70°C
Type of switch: rotary
Number of positions: 3
Contacts configuration: 4P3T
AC contacts rating @R: 0.01A / 28V AC
DC contacts rating @R: 0.01A / 28V DC
Operating temperature: -10...70°C
Electrical life: 10000 cycles
Mechanical durability: 30000 cycles
Contact material: copper
Contact plating: silver plated
Min. insulation resistance: 0.1GΩ
Body dimensions: Ø16x17mm
Contact resistance: 10mΩ
Stable positions number: 3
Anzahl je Verpackung: 1 Stücke
Category: Rotary Switches
Description: Switch: rotary; Pos: 3; 4P3T; 0.01A/28VAC; 0.01A/28VDC; -10÷70°C
Type of switch: rotary
Number of positions: 3
Contacts configuration: 4P3T
AC contacts rating @R: 0.01A / 28V AC
DC contacts rating @R: 0.01A / 28V DC
Operating temperature: -10...70°C
Electrical life: 10000 cycles
Mechanical durability: 30000 cycles
Contact material: copper
Contact plating: silver plated
Min. insulation resistance: 0.1GΩ
Body dimensions: Ø16x17mm
Contact resistance: 10mΩ
Stable positions number: 3
Anzahl je Verpackung: 1 Stücke
auf Bestellung 22 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
4+ | 21.95 EUR |
25+ | 21.11 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MRA403-A NKK SWITCHES
Category: Rotary Switches, Description: Switch: rotary; Pos: 3; 4P3T; 0.01A/28VAC; 0.01A/28VDC; -10÷70°C, Type of switch: rotary, Number of positions: 3, Contacts configuration: 4P3T, AC contacts rating @R: 0.01A / 28V AC, DC contacts rating @R: 0.01A / 28V DC, Operating temperature: -10...70°C, Electrical life: 10000 cycles, Mechanical durability: 30000 cycles, Contact material: copper, Contact plating: silver plated, Min. insulation resistance: 0.1GΩ, Body dimensions: Ø16x17mm, Contact resistance: 10mΩ, Stable positions number: 3, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote MRA403-A nach Preis ab 21.95 EUR bis 39.99 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MRA403-A | Hersteller : NKK SWITCHES |
Category: Rotary Switches Description: Switch: rotary; Pos: 3; 4P3T; 0.01A/28VAC; 0.01A/28VDC; -10÷70°C Type of switch: rotary Number of positions: 3 Contacts configuration: 4P3T AC contacts rating @R: 0.01A / 28V AC DC contacts rating @R: 0.01A / 28V DC Operating temperature: -10...70°C Electrical life: 10000 cycles Mechanical durability: 30000 cycles Contact material: copper Contact plating: silver plated Min. insulation resistance: 0.1GΩ Body dimensions: Ø16x17mm Contact resistance: 10mΩ Stable positions number: 3 |
auf Bestellung 22 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
MRA403-A | Hersteller : NKK Switches |
Description: SWITCH ROTARY 2-3POS 250MA 125V Packaging: Box Features: Process Sealed Contact Finish: Silver Current Rating (Amps): 250mA (AC) Mounting Type: Panel Mount, Through Hole Number of Positions: 2 ~ 3 Termination Style: PC Pin Actuator Length: 13.00mm Actuator Type: Knob Angle of Throw: 30° Number of Decks: 1 Number of Poles per Deck: 4 Circuit per Deck: 4P3T Contact Material: Copper Contact Timing: Non-Shorting (BBM) Index Stops: Adjustable Depth Behind Panel: 17.00mm Part Status: Active Voltage Rating - AC: 125 V |
auf Bestellung 1306 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||
MRA403-A | Hersteller : NKK Switches | Rotary Switches SHAFT 4P 2-3 POS |
auf Bestellung 357 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||
MRA403-A | Hersteller : NKK Switches | Switch Rotary 4P3T 3 Knob Shaft PC Pins 0.25A 125VAC |
Produkt ist nicht verfügbar |
