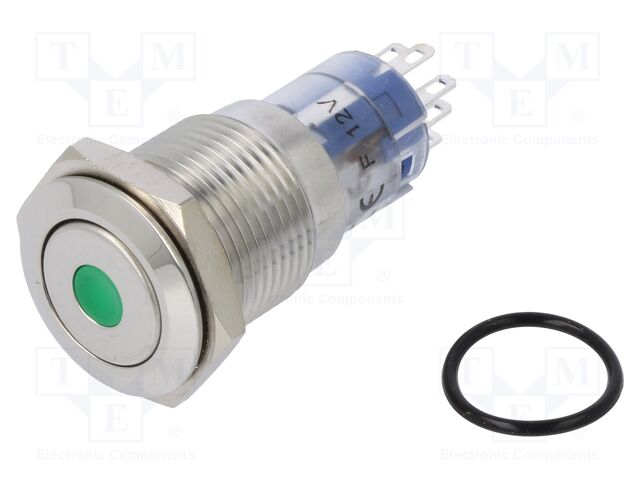

MP0045/1E1GN012S BULGIN
Hersteller: BULGIN
Category: Push Button Switches
Description: Switch: vandal resistant; DPDT; 3A/250VAC; IP67; ON-(ON); green
Type of switch: vandal resistant
Contacts configuration: DPDT
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: ON-(ON)
Illumination: LED
Backlight colour: green
Illumination voltage: 12V DC
Leads: soldering lugs
Operating temperature: -20...55°C
Electrical life: 30000 cycles
Max. contact resistance:: 50mΩ
Mechanical durability: 200000 cycles
Mounting hole diameter: Ø16.2mm
Body colour: silver
Body material: stainless steel
Test voltage: 2kV
Contact material: silver alloy
Stable positions number: 1
Anzahl je Verpackung: 1 Stücke
Category: Push Button Switches
Description: Switch: vandal resistant; DPDT; 3A/250VAC; IP67; ON-(ON); green
Type of switch: vandal resistant
Contacts configuration: DPDT
AC contacts rating @R: 3A / 250V AC
IP rating: IP67
Switching method: ON-(ON)
Illumination: LED
Backlight colour: green
Illumination voltage: 12V DC
Leads: soldering lugs
Operating temperature: -20...55°C
Electrical life: 30000 cycles
Max. contact resistance:: 50mΩ
Mechanical durability: 200000 cycles
Mounting hole diameter: Ø16.2mm
Body colour: silver
Body material: stainless steel
Test voltage: 2kV
Contact material: silver alloy
Stable positions number: 1
Anzahl je Verpackung: 1 Stücke
auf Bestellung 21 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
2+ | 48.88 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MP0045/1E1GN012S BULGIN
Category: Push Button Switches, Description: Switch: vandal resistant; DPDT; 3A/250VAC; IP67; ON-(ON); green, Type of switch: vandal resistant, Contacts configuration: DPDT, AC contacts rating @R: 3A / 250V AC, IP rating: IP67, Switching method: ON-(ON), Illumination: LED, Backlight colour: green, Illumination voltage: 12V DC, Leads: soldering lugs, Operating temperature: -20...55°C, Electrical life: 30000 cycles, Max. contact resistance:: 50mΩ, Mechanical durability: 200000 cycles, Mounting hole diameter: Ø16.2mm, Body colour: silver, Body material: stainless steel, Test voltage: 2kV, Contact material: silver alloy, Stable positions number: 1, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote MP0045/1E1GN012S nach Preis ab 48.88 EUR bis 56.41 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MP0045/1E1GN012S | Hersteller : BULGIN |
Category: Push Button Switches Description: Switch: vandal resistant; DPDT; 3A/250VAC; IP67; ON-(ON); green Type of switch: vandal resistant Contacts configuration: DPDT AC contacts rating @R: 3A / 250V AC IP rating: IP67 Switching method: ON-(ON) Illumination: LED Backlight colour: green Illumination voltage: 12V DC Leads: soldering lugs Operating temperature: -20...55°C Electrical life: 30000 cycles Max. contact resistance:: 50mΩ Mechanical durability: 200000 cycles Mounting hole diameter: Ø16.2mm Body colour: silver Body material: stainless steel Test voltage: 2kV Contact material: silver alloy Stable positions number: 1 |
auf Bestellung 21 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||
MP0045/1E1GN012S | Hersteller : Bulgin |
Description: SWITCH PB DPST ON-OFF ILLUM GRN Packaging: Bulk Features: Stainless Steel Current Rating (Amps): 3A (AC) Mounting Type: Panel Mount, Front Circuit: DPDT Type: Standard, Illuminated Switch Function: On-On Operating Temperature: -20°C ~ 55°C Termination Style: Solder Lug Illumination Type, Color: LED, Green Illumination Voltage (Nominal): 12 VDC Actuator Type: Round, Button, Flush Ingress Protection: IP67 - Dust Tight, Waterproof Panel Cutout Dimensions: Circular - 16.20mm Dia Color - Actuator/Cap: Silver Actuator Marking: No Marking Part Status: Active Voltage Rating - AC: 250 V |
auf Bestellung 41 Stücke: Lieferzeit 10-14 Tag (e) |
|
