![MGJ2D122005SC MGJ2D122005SC](https://ce8dc832c.cloudimg.io/v7/_cdn_/84/8C/E0/00/0/968776_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=4d53ed1b220a274c1943a893ed614abb2626894a)

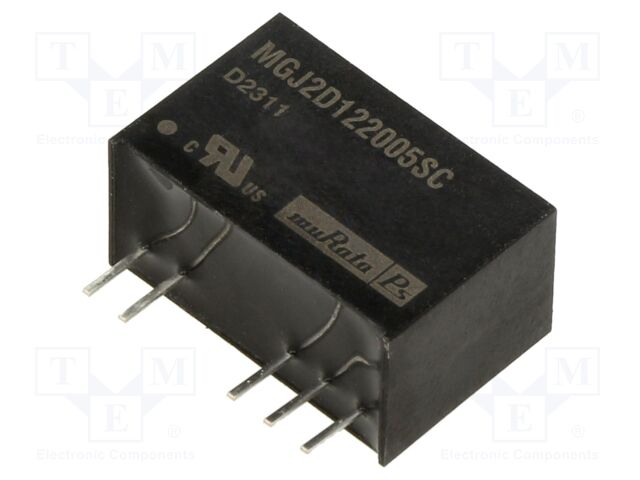

MGJ2D122005SC Murata Power Solutions
![MGJ2.pdf](/images/adobe-acrobat.png)
Category: DC/DC Converters
Description: Converter: DC/DC; 2W; Uin: 10.8÷13.2V; Uout: 20VDC; Uout2: -5VDC
Type of converter: DC/DC
Power: 2W
Input voltage: 10.8...13.2V
Output voltage: 20V DC
Output voltage 2: -5V DC
Output current: 80mA
Output current 2: 40mA
Case: SIP
Body dimensions: 19.5x9.8x12.5mm
Efficiency: 82%
Operating temperature: -40...100°C
Insulation voltage: 5.2kV DC
Mounting: THT
Manufacturer series: MGJ2
Number of outputs: 2
Anzahl je Verpackung: 1 Stücke
auf Bestellung 25 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
6+ | 13.17 EUR |
7+ | 10.78 EUR |
8+ | 10.2 EUR |
100+ | 9.87 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MGJ2D122005SC Murata Power Solutions
Description: MURATA POWER SOLUTIONS - MGJ2D122005SC - Isolierter DC/DC-Wandler, PCB-Montage, Gate-Ansteuerung, Durchsteckmontage, 2W, 20V, 80mA, -5V, 40mA, tariffCode: 85044095, DC-Eingangsspannung, min.: 10.8V, Ausgangsstrom - Ausgang 2: 40mA, rohsCompliant: Y-EX, Höhe: 12.65mm, Nominelle DC-Eingangsspannung: 12V, Tiefe: 19.65mm, hazardous: false, rohsPhthalatesCompliant: YES, Anzahl der Ausgänge: 2 Ausgänge, Breite: 9.95mm, usEccn: EAR99, DC/DC-Wandlerausgang: Fest, Isolationsspannung: 5.2kV, DC-Eingangsspannung, max.: 13.2V, DC/DC-Wandlermontage: Durchsteckmontage, euEccn: NLR, DC/DC-Wandler: SIP, Ausgangsregelung: Ungeregelt, Produktpalette: MGJ Series, Ausgangsspannung - Ausgang 1: 20V, productTraceability: No, Ausgangsspannung - Ausgang 2: -5V, Ausgangsstrom - Ausgang 1: 80mA, Eingangsverhältnis: 1:1, Anwendungen für das Netzteil: Gate-Treiber, Ausgangsleistung, max.: 2W, SVHC: No SVHC (23-Jan-2024).
Weitere Produktangebote MGJ2D122005SC nach Preis ab 10.2 EUR bis 13.89 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
MGJ2D122005SC | Hersteller : Murata Power Solutions |
![]() Description: Converter: DC/DC; 2W; Uin: 10.8÷13.2V; Uout: 20VDC; Uout2: -5VDC Type of converter: DC/DC Power: 2W Input voltage: 10.8...13.2V Output voltage: 20V DC Output voltage 2: -5V DC Output current: 80mA Output current 2: 40mA Case: SIP Body dimensions: 19.5x9.8x12.5mm Efficiency: 82% Operating temperature: -40...100°C Insulation voltage: 5.2kV DC Mounting: THT Manufacturer series: MGJ2 Number of outputs: 2 |
auf Bestellung 25 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||||
![]() |
MGJ2D122005SC | Hersteller : Murata Power Solutions |
![]() |
auf Bestellung 529 Stücke: Lieferzeit 166-170 Tag (e) |
|
||||||||||||||||||||
![]() |
MGJ2D122005SC | Hersteller : Murata Power Solutions Inc. |
![]() Features: SCP Packaging: Tube Package / Case: 7-SIP Module, 5 Leads Size / Dimension: 0.77" L x 0.39" W x 0.50" H (19.7mm x 10.0mm x 12.7mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 100°C Applications: ITE (Commercial), Medical Voltage - Input (Max): 13.2V Efficiency: 82% Current - Output (Max): 80mA, 40mA Voltage - Input (Min): 10.8V Voltage - Output 1: 20V Voltage - Output 2: -5V Part Status: Active Power (Watts): 2 W Number of Outputs: 2 Voltage - Isolation: 5.2 kV |
auf Bestellung 4173 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||||
![]() |
MGJ2D122005SC | Hersteller : MURATA POWER SOLUTIONS |
![]() tariffCode: 85044095 DC-Eingangsspannung, min.: 10.8V Ausgangsstrom - Ausgang 2: 40mA rohsCompliant: Y-EX Höhe: 12.65mm Nominelle DC-Eingangsspannung: 12V Tiefe: 19.65mm hazardous: false rohsPhthalatesCompliant: YES Anzahl der Ausgänge: 2 Ausgänge Breite: 9.95mm usEccn: EAR99 DC/DC-Wandlerausgang: Fest Isolationsspannung: 5.2kV DC-Eingangsspannung, max.: 13.2V DC/DC-Wandlermontage: Durchsteckmontage euEccn: NLR DC/DC-Wandler: SIP Ausgangsregelung: Ungeregelt Produktpalette: MGJ Series Ausgangsspannung - Ausgang 1: 20V productTraceability: No Ausgangsspannung - Ausgang 2: -5V Ausgangsstrom - Ausgang 1: 80mA Eingangsverhältnis: 1:1 Anwendungen für das Netzteil: Gate-Treiber Ausgangsleistung, max.: 2W SVHC: No SVHC (23-Jan-2024) |
auf Bestellung 68 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||||||
![]() |
MGJ2D122005SC | Hersteller : Murata Power Solutions |
![]() |
auf Bestellung 80 Stücke: Lieferzeit 14-21 Tag (e) |
