![MF80252V3-1000U-A99 MF80252V3-1000U-A99](https://ce8dc832c.cloudimg.io/v7/_cdn_/A2/F0/B0/00/0/724778_1.jpg?width=640&height=480&wat=1&wat_url=_tme-wrk_%2Ftme_new.png&wat_scale=100p&ci_sign=ae0d9ebf482bfef67463a47ad14110fb4a2c6ee2)

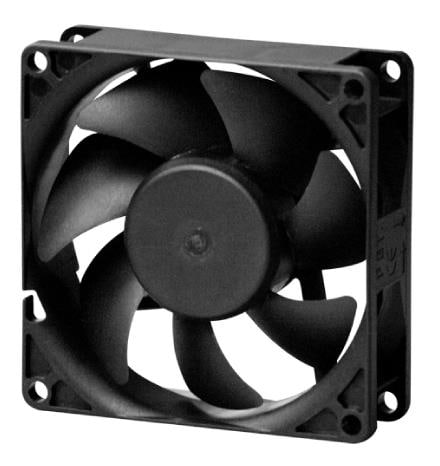

MF80252V3-1000U-A99 SUNON
![MF80252V3-A99-A.pdf](/images/adobe-acrobat.png)
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x25mm; 56.06m3/h; 28dBA; Vapo; 2600rpm
Current rating: 40mA
Operating temperature: -10...70°C
Leads: lead x2
Min. insulation resistance: 10MΩ
Operating voltage: 8...27.6V
Fan dimensions: 80x80x25mm
Fan motor: brushless DC
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: Vapo
Fan efficiency: 56.06m3/h
Noise level: 28dBA
Rotational rate/speed: 2600rpm
Current and power consumption tolerance: ±15%
Power consumption: 0.96W
Cable length: 0.315m
Additional functions: autorestart
Kind of fan: axial
Supply voltage: 24V DC
Enclosure material: thermoplastic
Type of fan: DC
auf Bestellung 301 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
15+ | 4.89 EUR |
16+ | 4.49 EUR |
50+ | 3.95 EUR |
200+ | 3.75 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MF80252V3-1000U-A99 SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 80x80x25mm; 56.06m3/h; 28dBA; Vapo; 2600rpm, Current rating: 40mA, Operating temperature: -10...70°C, Leads: lead x2, Min. insulation resistance: 10MΩ, Operating voltage: 8...27.6V, Fan dimensions: 80x80x25mm, Fan motor: brushless DC, Impeller material: thermoplastic, Flammability rating: UL94V-0, Insulation class: A, Kind of Bearing: Vapo, Fan efficiency: 56.06m3/h, Noise level: 28dBA, Rotational rate/speed: 2600rpm, Current and power consumption tolerance: ±15%, Power consumption: 0.96W, Cable length: 0.315m, Additional functions: autorestart, Kind of fan: axial, Supply voltage: 24V DC, Enclosure material: thermoplastic, Type of fan: DC, Anzahl je Verpackung: 1 Stücke.
