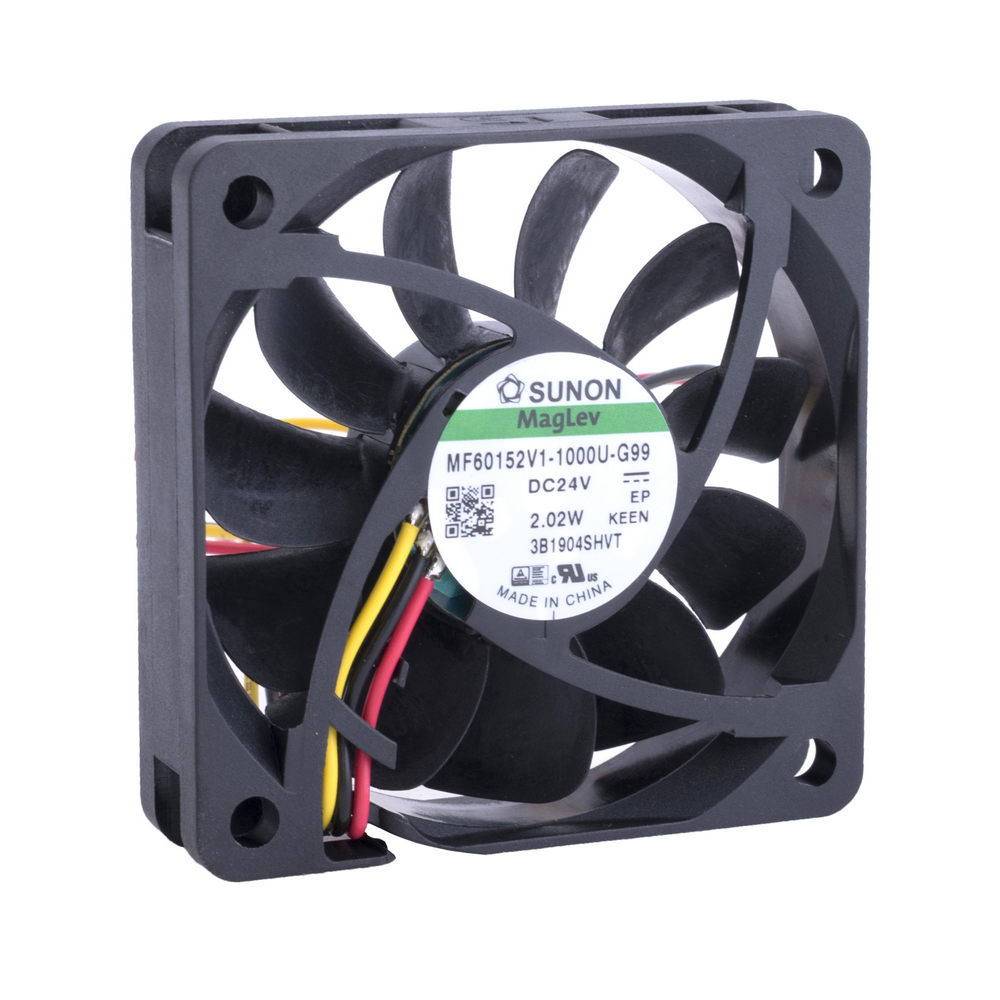

MF60152V1-1000U-G99 SUNON
Hersteller: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 60x60x15mm; 44.85m3/h; 34.2dBA; Vapo; 4700rpm
Wire size: 26AWG
Cable length: 0.29m
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: Vapo
Fan efficiency: 44.85m3/h
Static pressure: 4.57mm H2O
Noise level: 34.2dBA
Rotational rate/speed: 4700rpm
Current and power consumption tolerance: ±15%
Power consumption: 1.8W
Additional functions: autorestart
Signal output: F type
Kind of fan: axial
Min. insulation resistance: 10MΩ
Operating temperature: -10...70°C
Enclosure material: thermoplastic
Current rating: 75mA
Supply voltage: 24V DC
Leads: lead x3
Operating voltage: 8...27.6V
Type of fan: DC
Fan dimensions: 60x60x15mm
Fan motor: brushless DC
Impeller material: thermoplastic
Anzahl je Verpackung: 1 Stücke
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 60x60x15mm; 44.85m3/h; 34.2dBA; Vapo; 4700rpm
Wire size: 26AWG
Cable length: 0.29m
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: Vapo
Fan efficiency: 44.85m3/h
Static pressure: 4.57mm H2O
Noise level: 34.2dBA
Rotational rate/speed: 4700rpm
Current and power consumption tolerance: ±15%
Power consumption: 1.8W
Additional functions: autorestart
Signal output: F type
Kind of fan: axial
Min. insulation resistance: 10MΩ
Operating temperature: -10...70°C
Enclosure material: thermoplastic
Current rating: 75mA
Supply voltage: 24V DC
Leads: lead x3
Operating voltage: 8...27.6V
Type of fan: DC
Fan dimensions: 60x60x15mm
Fan motor: brushless DC
Impeller material: thermoplastic
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2606 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
11+ | 6.65 EUR |
13+ | 5.71 EUR |
50+ | 4.89 EUR |
200+ | 4.35 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MF60152V1-1000U-G99 SUNON
Category: DC24V Fans, Description: Fan: DC; axial; 24VDC; 60x60x15mm; 44.85m3/h; 34.2dBA; Vapo; 4700rpm, Wire size: 26AWG, Cable length: 0.29m, Flammability rating: UL94V-0, Insulation class: A, Kind of Bearing: Vapo, Fan efficiency: 44.85m3/h, Static pressure: 4.57mm H2O, Noise level: 34.2dBA, Rotational rate/speed: 4700rpm, Current and power consumption tolerance: ±15%, Power consumption: 1.8W, Additional functions: autorestart, Signal output: F type, Kind of fan: axial, Min. insulation resistance: 10MΩ, Operating temperature: -10...70°C, Enclosure material: thermoplastic, Current rating: 75mA, Supply voltage: 24V DC, Leads: lead x3, Operating voltage: 8...27.6V, Type of fan: DC, Fan dimensions: 60x60x15mm, Fan motor: brushless DC, Impeller material: thermoplastic, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote MF60152V1-1000U-G99 nach Preis ab 4.35 EUR bis 8.86 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MF60152V1-1000U-G99 | Hersteller : SUNON |
Category: DC24V Fans Description: Fan: DC; axial; 24VDC; 60x60x15mm; 44.85m3/h; 34.2dBA; Vapo; 4700rpm Wire size: 26AWG Cable length: 0.29m Flammability rating: UL94V-0 Insulation class: A Kind of Bearing: Vapo Fan efficiency: 44.85m3/h Static pressure: 4.57mm H2O Noise level: 34.2dBA Rotational rate/speed: 4700rpm Current and power consumption tolerance: ±15% Power consumption: 1.8W Additional functions: autorestart Signal output: F type Kind of fan: axial Min. insulation resistance: 10MΩ Operating temperature: -10...70°C Enclosure material: thermoplastic Current rating: 75mA Supply voltage: 24V DC Leads: lead x3 Operating voltage: 8...27.6V Type of fan: DC Fan dimensions: 60x60x15mm Fan motor: brushless DC Impeller material: thermoplastic |
auf Bestellung 2606 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
MF60152V1-1000U-G99 | Hersteller : Sunon | MF60152V1-1000U-G99 |
auf Bestellung 2606 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
MF60152V1-1000U-G99 (MF60152V1-G99-A) Produktcode: 147707 |
Hersteller : Sunon |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Abmessungen, mm: 60x60x15 mm Spannung, V: 24 DC Luftvolumen, m3/Stunde: 44,85 м³/год. Leistung, Watt: 1,8 Вт Lärm, dB: 34,2дБ Rotationsgeschwindigkeit, r/min: 4700 об/хв Beschreibung: Підшипник Vapo (магнітна підвіска) |
Produkt ist nicht verfügbar
|
||||||||||||
MF60152V1-1000U-G99 | Hersteller : Sunon | DC Fans Axial Fan, 60x60x15mm, 24VDC, 0.18"H2O, Vapo, 3x Wire, Auto Restart, Tach |
Produkt ist nicht verfügbar |
