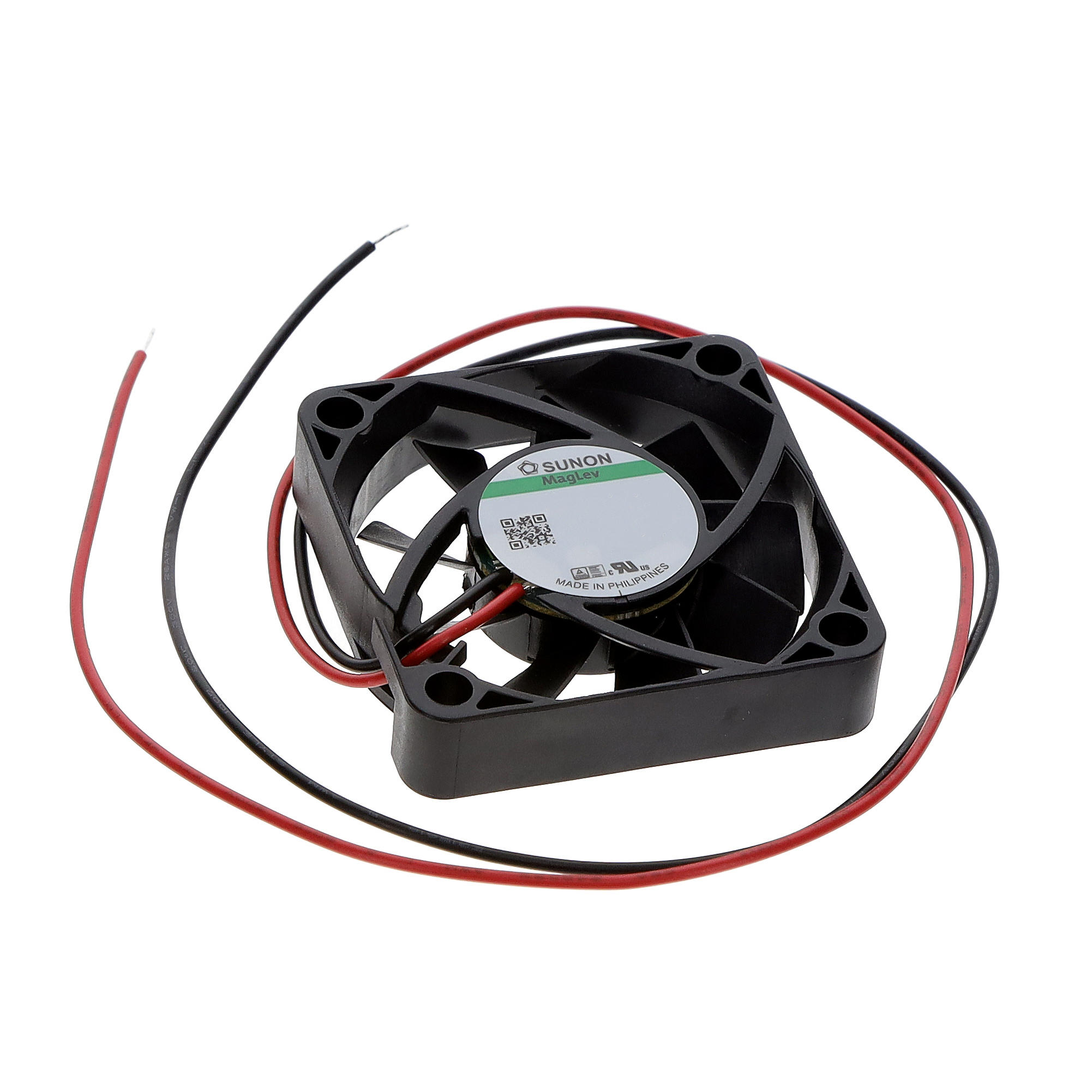

MF45100V1-1000U-A99 SUNON
Hersteller: SUNON
Category: DC5V Fans
Description: Fan: DC; axial; 5VDC; 45x45x10mm; 21.31m3/h; 32.5dBA; Vapo; 6500rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 5V DC
Operating voltage: 3.5...6V
Fan dimensions: 45x45x10mm
Power consumption: 1.18W
Current rating: 0.205A
Fan efficiency: 21.31m3/h
Noise level: 32.5dBA
Kind of Bearing: Vapo
Rotational rate/speed: 6500rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.3m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 4.57mm H2O
Anzahl je Verpackung: 1 Stücke
Category: DC5V Fans
Description: Fan: DC; axial; 5VDC; 45x45x10mm; 21.31m3/h; 32.5dBA; Vapo; 6500rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 5V DC
Operating voltage: 3.5...6V
Fan dimensions: 45x45x10mm
Power consumption: 1.18W
Current rating: 0.205A
Fan efficiency: 21.31m3/h
Noise level: 32.5dBA
Kind of Bearing: Vapo
Rotational rate/speed: 6500rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.3m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 4.57mm H2O
Anzahl je Verpackung: 1 Stücke
auf Bestellung 320 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
12+ | 6.19 EUR |
13+ | 5.86 EUR |
50+ | 5.55 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MF45100V1-1000U-A99 SUNON
Category: DC5V Fans, Description: Fan: DC; axial; 5VDC; 45x45x10mm; 21.31m3/h; 32.5dBA; Vapo; 6500rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 5V DC, Operating voltage: 3.5...6V, Fan dimensions: 45x45x10mm, Power consumption: 1.18W, Current rating: 0.205A, Fan efficiency: 21.31m3/h, Noise level: 32.5dBA, Kind of Bearing: Vapo, Rotational rate/speed: 6500rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: lead x2, Operating temperature: -10...70°C, Cable length: 0.3m, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 4.57mm H2O, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote MF45100V1-1000U-A99 nach Preis ab 5.55 EUR bis 11.84 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MF45100V1-1000U-A99 | Hersteller : SUNON |
Category: DC5V Fans Description: Fan: DC; axial; 5VDC; 45x45x10mm; 21.31m3/h; 32.5dBA; Vapo; 6500rpm Type of fan: DC Kind of fan: axial Supply voltage: 5V DC Operating voltage: 3.5...6V Fan dimensions: 45x45x10mm Power consumption: 1.18W Current rating: 0.205A Fan efficiency: 21.31m3/h Noise level: 32.5dBA Kind of Bearing: Vapo Rotational rate/speed: 6500rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.3m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 4.57mm H2O |
auf Bestellung 320 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
MF45100V1-1000U-A99 | Hersteller : Sunon | MF45100V1-1000U-A99 |
auf Bestellung 321 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
MF45100V1-1000U-A99 | Hersteller : Sunon Fans |
Description: FAN 40X10MM 12VDC Packaging: Bulk Features: Auto Restart Voltage - Rated: 5VDC Size / Dimension: Square - 45mm L x 45mm H Bearing Type: Vapo-Bearing™ RPM: 6500 RPM Air Flow: 12.4 CFM (0.347m³/min) Width: 10.00mm Termination: 2 Wire Leads Approval Agency: CCC, CE, cURus, TUV Fan Type: Tubeaxial Noise: 32.5dB(A) Static Pressure: 0.180 in H2O (45.0 Pa) Power (Watts): 1.03 W |
auf Bestellung 374 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||
MF45100V1-1000U-A99 | Hersteller : Sunon | DC Fans DC Axial Fan, 45x45x10mm, 5VDC, Vapo, Lead Wires, Auto Restart, D04164720G-00 |
Produkt ist nicht verfügbar |
