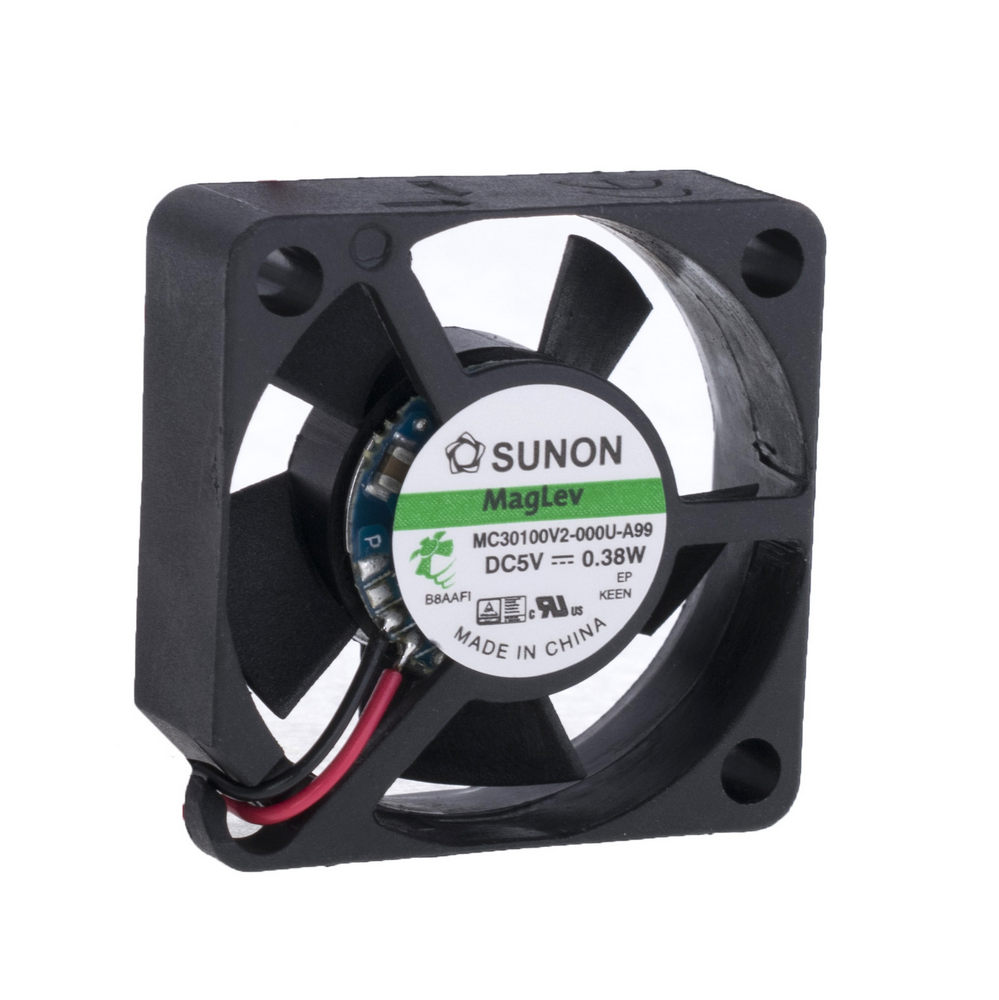

MC30100V2-A99 Sunon
Produktcode: 73394
Hersteller: SunonAbmessungen, mm: 30x30x10
Spannung, V: 5 DC
Luftvolumen, m3/Stunde: 7,82
Leistung, Watt: 0,4
Lärm, dB: 20
Rotationsgeschwindigkeit, r/min: 8000
Beschreibung: Lager Vapo (Magnetschwebe)
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Weitere Produktangebote MC30100V2-A99
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
---|---|---|---|---|---|
MC30100V2-000U-A99 | Hersteller : Sunon Fans |
Description: FAN AXIAL 30X10MM VAPO 5VDC WIRE Features: Auto Restart Packaging: Tray Voltage - Rated: 5VDC Size / Dimension: Square - 30mm L x 30mm H Bearing Type: Vapo-Bearing™ RPM: 8000 RPM Air Flow: 4.6 CFM (0.129m³/min) Width: 10.00mm Weight: 0.019 lb (8.62 g) Termination: 2 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 20.0dB(A) Static Pressure: 0.120 in H2O (29.9 Pa) Part Status: Obsolete Power (Watts): 380 mW |
Produkt ist nicht verfügbar |
||
MC30100V2-000U-A99 | Hersteller : Sunon | DC Fans DC Fan, 30x10mm, 5VDC, 4.6CFM, 0.38W, 20dBA, 8000RPM, 0.12inch H2O, Vapo Bearing, MagLev Motor, Auto Restart |
Produkt ist nicht verfügbar |
||
MC30100V2-000U-A99 | Hersteller : SUNON |
Category: DC5V Fans Description: Fan: DC; axial; 5VDC; 30x30x10mm; 7.82m3/h; 20dBA; Vapo; Len: 150mm Type of fan: DC Kind of fan: axial Supply voltage: 5V DC Operating voltage: 2.5...6V Fan dimensions: 30x30x10mm Power consumption: 0.4W Current rating: 80mA Fan efficiency: 7.82m3/h Noise level: 20dBA Kind of Bearing: Vapo Rotational rate/speed: 8000 (±20%)rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 500MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.15m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 3.05mm H2O Wire size: 28AWG |
Produkt ist nicht verfügbar |
