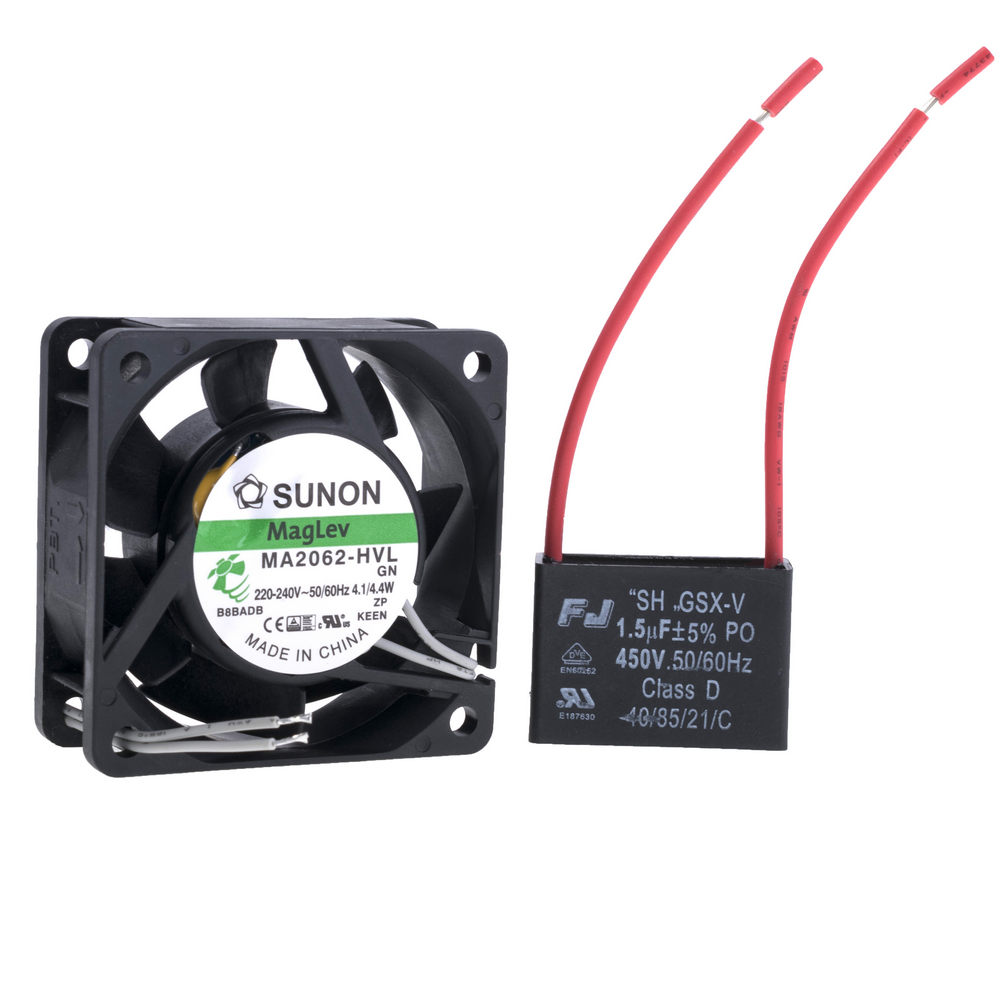

MA2062-HVL.GN SUNON
Hersteller: SUNON
Category: AC230V Fans
Description: Fan: AC; axial; 230VAC; 60x60x25mm; 29.7m3/h; 30dBA; Vapo; 4100rpm
Type of fan: AC
Kind of fan: axial
Supply voltage: 230V AC
Fan dimensions: 60x60x25mm
Power consumption: 4.1W
Current rating: 198mA
Fan efficiency: 29.7m3/h
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 4100rpm
Current and power consumption tolerance: ±15%
Frequency: 50Hz
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.3m
Flammability rating: UL94V-0
Static pressure: 4.82mm H2O
Wire size: 24AWG
Standard equipment: suppression capacitor
Anzahl je Verpackung: 1 Stücke
Category: AC230V Fans
Description: Fan: AC; axial; 230VAC; 60x60x25mm; 29.7m3/h; 30dBA; Vapo; 4100rpm
Type of fan: AC
Kind of fan: axial
Supply voltage: 230V AC
Fan dimensions: 60x60x25mm
Power consumption: 4.1W
Current rating: 198mA
Fan efficiency: 29.7m3/h
Noise level: 30dBA
Kind of Bearing: Vapo
Rotational rate/speed: 4100rpm
Current and power consumption tolerance: ±15%
Frequency: 50Hz
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.3m
Flammability rating: UL94V-0
Static pressure: 4.82mm H2O
Wire size: 24AWG
Standard equipment: suppression capacitor
Anzahl je Verpackung: 1 Stücke
auf Bestellung 86 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
5+ | 15.34 EUR |
10+ | 13.86 EUR |
50+ | 12.91 EUR |
200+ | 12.1 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details MA2062-HVL.GN SUNON
Category: AC230V Fans, Description: Fan: AC; axial; 230VAC; 60x60x25mm; 29.7m3/h; 30dBA; Vapo; 4100rpm, Type of fan: AC, Kind of fan: axial, Supply voltage: 230V AC, Fan dimensions: 60x60x25mm, Power consumption: 4.1W, Current rating: 198mA, Fan efficiency: 29.7m3/h, Noise level: 30dBA, Kind of Bearing: Vapo, Rotational rate/speed: 4100rpm, Current and power consumption tolerance: ±15%, Frequency: 50Hz, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: lead x2, Operating temperature: -10...70°C, Cable length: 0.3m, Flammability rating: UL94V-0, Static pressure: 4.82mm H2O, Wire size: 24AWG, Standard equipment: suppression capacitor, Anzahl je Verpackung: 1 Stücke.
Verwandte Produkte MA2062-HVL.GN SUNON
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
+3 |
Befestigung für Ventilatore und Gitter, Plastikklammer FSP-1 Produktcode: 62414 |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Beschreibung: Befestigung |
verfügbar: 306 Stück
|
|
|||||||
+1 |
Befestigung für Ventilatore und Gitter, Plastikklammer FSP-2 Produktcode: 26792 |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Beschreibung: Befestigung |
verfügbar: 432 Stück
|
|
Weitere Produktangebote MA2062-HVL.GN nach Preis ab 12.91 EUR bis 51.04 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MA2062-HVL.GN | Hersteller : SUNON |
Category: AC230V Fans Description: Fan: AC; axial; 230VAC; 60x60x25mm; 29.7m3/h; 30dBA; Vapo; 4100rpm Type of fan: AC Kind of fan: axial Supply voltage: 230V AC Fan dimensions: 60x60x25mm Power consumption: 4.1W Current rating: 198mA Fan efficiency: 29.7m3/h Noise level: 30dBA Kind of Bearing: Vapo Rotational rate/speed: 4100rpm Current and power consumption tolerance: ±15% Frequency: 50Hz Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.3m Flammability rating: UL94V-0 Static pressure: 4.82mm H2O Wire size: 24AWG Standard equipment: suppression capacitor |
auf Bestellung 86 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
MA2062-HVL.GN | Hersteller : Sunon Fans |
Description: FAN AXIAL 60X25MM 220/240VAC Packaging: Box Power (Watts): 4.40W Voltage - Rated: 220 ~ 240VAC Size / Dimension: Square - 60mm L x 60mm H Bearing Type: Vapo-Bearing™ RPM: 4200 RPM Air Flow: 18.0 CFM (0.504m³/min) Width: 25.00mm Weight: 0.18 lb (81.65 g) Termination: 2 Wire Leads Approval Agency: CUR, TUV, UL Fan Type: Tubeaxial Noise: 31.0dB(A) Static Pressure: 0.200 in H2O (49.8 Pa) Part Status: Obsolete |
auf Bestellung 71 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||
MA2062-HVL.GN | Hersteller : Sunon | AC Fans Fan, 60x60x25mm, 220-240VAC, 17.5/18CFM, 4.1/4.4W, 30/31dBA, Vapo, Wire |
auf Bestellung 699 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||
MA2062-HVL.GN | Hersteller : Sunon | AC Fan Vapo Bearing 220V/240V 0.198A/0.211A 4.1W/4.4W 50Hz/60Hz 4100RPM/4200RPM 17.5CFM/18CFM 30dB/31dB Flange Mount |
auf Bestellung 112 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
MA2062-HVL.GN | Hersteller : Sunon | AC Fan Vapo Bearing 220V/240V 0.198A/0.211A 4.1W/4.4W 50Hz/60Hz 4100RPM/4200RPM 17.5CFM/18CFM 30dB/31dB Flange Mount |
auf Bestellung 5 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
MA2062HVL Produktcode: 62184 |
Hersteller : Sunon |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Abmessungen, mm: 60x60x25 Spannung, V: 230 AC Luftvolumen, m3/Stunde: 17,5 Leistung, Watt: 4,1 Lärm, dB: 30 Rotationsgeschwindigkeit, r/min: 4100 Beschreibung: Підшипник Vapo (магнітна підвіска) |
Produkt ist nicht verfügbar
|
||||||||||||||
MA2062-HVL.GN | Hersteller : SUNON |
Description: SUNON - MA2062-HVL.GN - AC-Axiallüfter, Baureihe MagLev, 220V bis 240V, Quadratisch, 60 mm, 25 mm, Vapo-Lager, 18 cu.ft/min tariffCode: 84145925 Stromanschluss: 2 Anschlussdrähte rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES Art des Lagers: Vapo-Lager Nennleistung: 4.4W IP-Schutzart: - usEccn: EAR99 Luftstrom - m3/min: 0.51m³/min Nennstrom: 198mA AC-Nennspannung: 220V bis 240V Außentiefe: 25mm Geräuschentwicklung: 31dBA euEccn: NLR Luftstrom - CFM: 18cu.ft/min Lüfterrahmen: Quadratisch Produktpalette: MagLev productTraceability: No Rahmengröße: 60mm Nenndrehzahl: 4200rpm SVHC: No SVHC (14-Jun-2023) |
Produkt ist nicht verfügbar |
