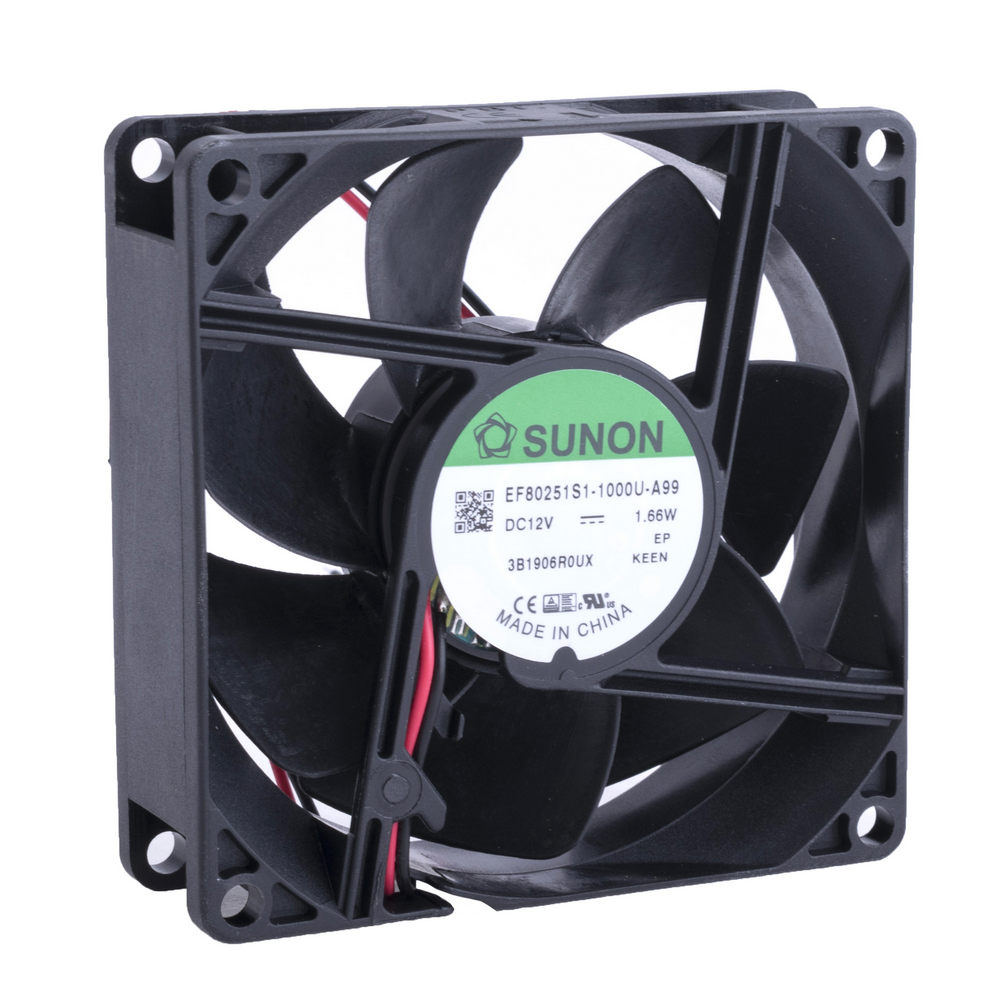

Luefter SUNON 80x80x25, 12V, (EF80251S1-A99-A)
Produktcode: 147329
Hersteller: SunonAbmessungen, mm: 80x80x25 mm
Spannung, V: 12 DC
Luftvolumen, m3/Stunde: 69,7 м³/год.
Leistung, Watt: 1,66 Вт
Lärm, dB: 33 дБ
Rotationsgeschwindigkeit, r/min: 3200 об/хв
Beschreibung: Підшипник ковзання "втулка"
verfügbar 86 Stück:
40 Stück - stock Köln
46 Stück - lieferbar in 3-4 Wochen
erwartet 9 Stück:
Produktrezensionen
Produktbewertung abgeben
Weitere Produktangebote Luefter SUNON 80x80x25, 12V, (EF80251S1-A99-A) nach Preis ab 2.1 EUR bis 9.59 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EF80251S1-1000U-A99 | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 80x80x25mm; 69.29m3/h; 33dBA; slide bearing Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 4.5...13.8V Fan dimensions: 80x80x25mm Power consumption: 1.66W Current rating: 0.12A Fan efficiency: 69.29m3/h Noise level: 33dBA Kind of Bearing: slide bearing Rotational rate/speed: 3200 (±10%)rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.315m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 4.57mm H2O Wire size: 24AWG Anzahl je Verpackung: 1 Stücke |
auf Bestellung 446 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||||||
EF80251S1-1000U-A99 | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 80x80x25mm; 69.29m3/h; 33dBA; slide bearing Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 4.5...13.8V Fan dimensions: 80x80x25mm Power consumption: 1.66W Current rating: 0.12A Fan efficiency: 69.29m3/h Noise level: 33dBA Kind of Bearing: slide bearing Rotational rate/speed: 3200 (±10%)rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.315m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 4.57mm H2O Wire size: 24AWG |
auf Bestellung 446 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
EF80251S1-1000U-A99 | Hersteller : Sunon | DC Fans Axial Fan, 80x80x25mm, 12VDC, 41CFM, 0.18"H2O, Sleeve, Wire, Auto Restart |
auf Bestellung 3019 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||
EF80251S1-1000U-A99 | Hersteller : Sunon Fans |
Description: FAN AXIAL 80X25MM 12VDC WIRE Packaging: Bulk Features: Auto Restart Voltage - Rated: 12VDC Size / Dimension: Square - 80mm L x 80mm H Bearing Type: Sleeve RPM: 3200 RPM Air Flow: 41.0 CFM (1.15m³/min) Width: 25.00mm Weight: 0.167 lb (75.75 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 33.0dB(A) Static Pressure: 0.180 in H2O (44.8 Pa) Part Status: Active Power (Watts): 1.44 W |
auf Bestellung 24757 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||
EF80251S1-1000U-A99 | Hersteller : Sunon | DC Fan Axial Sleeve Bearing 12V 41CFM 33dB 80 X 80 X 25mm High Speed |
auf Bestellung 1196 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
EF80251S1-1000U-A99 | Hersteller : Sunon | DC Fan Axial Sleeve Bearing 12V 41CFM 33dB 80 X 80 X 25mm High Speed |
auf Bestellung 1450 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
EF80251S1-1000U-A99 | Hersteller : Sunon | Вентилятор постійного струму; U, В = 12; Розм = 80 x 80 x 25; Fоберт, об/хв = 3 200 кГц; Nf, дБ = 33 дБА; Р, Вт = 1,7 Вт; Р, м3/г = 69,7; Стат. тиск, мм-H2O = 4,57; Тексп, °C = -10...+70; Тип Uживл = постійна; Тип підш. = ковзання; Клас ізоляції = Е; Ваг |
auf Bestellung 595 Stücke: Lieferzeit 14-21 Tag (e) |
|
