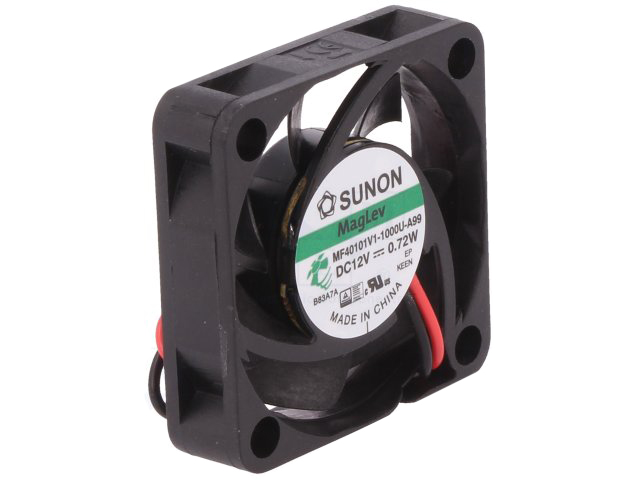

Lüfter Sunon 40x40x10, 12V, MF40101V1-A99-A
Abmessungen, mm: 40x40x10 mm
Spannung, V: 12 DC
Luftvolumen, m3/Stunde: 13,6 м³/год.
Leistung, Watt: 0,72 Вт
Lärm, dB: 27,3 дБ
Rotationsgeschwindigkeit, r/min: 7000 об/хв
Beschreibung: Підшипник Vapo (магнітна підвіска)
30 Stück - stock Köln
35 Stück - lieferbar in 3-4 Wochen
Technische Details Lüfter Sunon 40x40x10, 12V, MF40101V1-A99-A Sunon
Lüfter Sunon 40x40x10 mm 12VDC
Axial MF40101V1-1000U-A99 13,52m3/h 27,3dBA Vapolager
Eigenschaften:
Hersteller SUNON
Lüfter-Art axial
Betriebsspannung nominal 12VDC
Betriebsspannungsbereich
4,5…13,8 VDC
Nennstrom 0,051A
Abmessungen: 40x40x10 mm
Lager: Vapolager
Leistung
0,72 W
Luftstrom 13,52m3/h
Drehzahl 7000(+/-
15%) U/min
Geräuschpegel
27,3 dBA
Statische Druck 4,83mm H2O
Isolationswiderstand 10MOhm
Temperaturbereich: -10...+70 °C
Anschluss 2 Leitungen 300mm 26AWG
Rotormaterial
Thermoplast
Gehäusematerial
Thermoplast
Entflammbarkeitsklasse UL94V-0
Gewicht 15,6 g
Produktcode 147327
Weitere Produktangebote Lüfter Sunon 40x40x10, 12V, MF40101V1-A99-A nach Preis ab 5.94 EUR bis 17.82 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
MF40101V1-1000U-A99 | Hersteller : Sunon |
![]() |
auf Bestellung 488 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
![]() |
MF40101V1-1000U-A99 | Hersteller : Sunon Fans |
![]() Packaging: Bulk Features: Auto Restart Voltage - Rated: 12VDC Size / Dimension: Square - 40mm L x 40mm H Bearing Type: Vapo-Bearing™ RPM: 7000 RPM Air Flow: 8.0 CFM (0.224m³/min) Width: 10.00mm Weight: 0.035 lb (15.88 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: cURus, TUV Fan Type: Tubeaxial Noise: 27.3dB(A) Static Pressure: 0.190 in H2O (47.3 Pa) Part Status: Active Power (Watts): 620 mW |
auf Bestellung 20588 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
![]() |
MF40101V11000UA99 | Hersteller : Sunon |
![]() |
auf Bestellung 4070 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
![]() |
MF40101V11000UA99 | Hersteller : Sunon |
![]() |
auf Bestellung 415 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
![]() |
MF40101V11000UA99 | Hersteller : Sunon |
![]() |
auf Bestellung 1895 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
![]() |
MF40101V1-1000U-A99 | Hersteller : SUNON |
![]() Description: Fan: DC; axial; 12VDC; 40x40x10mm; 13.52m3/h; 27.3dBA; Vapo; 7000rpm Enclosure material: thermoplastic Current rating: 51mA Supply voltage: 12V DC Leads: lead x2 Operating voltage: 4.5...13.8V Type of fan: DC Fan dimensions: 40x40x10mm Fan motor: brushless DC Impeller material: thermoplastic Flammability rating: UL94V-0 Insulation class: A Kind of Bearing: Vapo Fan efficiency: 13.52m3/h Static pressure: 4.83mm H2O Noise level: 27.3dBA Rotational rate/speed: 7000rpm Power consumption: 0.72W Wire size: 26AWG Cable length: 0.3m Related items: SR4-15.5 Additional functions: autorestart Kind of fan: axial Min. insulation resistance: 10MΩ Operating temperature: -10...70°C Anzahl je Verpackung: 1 Stücke |
Produkt ist nicht verfügbar |
|||||||||||||||||
![]() |
MF40101V1-1000U-A99 | Hersteller : SUNON |
![]() Description: Fan: DC; axial; 12VDC; 40x40x10mm; 13.52m3/h; 27.3dBA; Vapo; 7000rpm Enclosure material: thermoplastic Current rating: 51mA Supply voltage: 12V DC Leads: lead x2 Operating voltage: 4.5...13.8V Type of fan: DC Fan dimensions: 40x40x10mm Fan motor: brushless DC Impeller material: thermoplastic Flammability rating: UL94V-0 Insulation class: A Kind of Bearing: Vapo Fan efficiency: 13.52m3/h Static pressure: 4.83mm H2O Noise level: 27.3dBA Rotational rate/speed: 7000rpm Power consumption: 0.72W Wire size: 26AWG Cable length: 0.3m Related items: SR4-15.5 Additional functions: autorestart Kind of fan: axial Min. insulation resistance: 10MΩ Operating temperature: -10...70°C |
Produkt ist nicht verfügbar |
Mit diesem Produkt kaufen

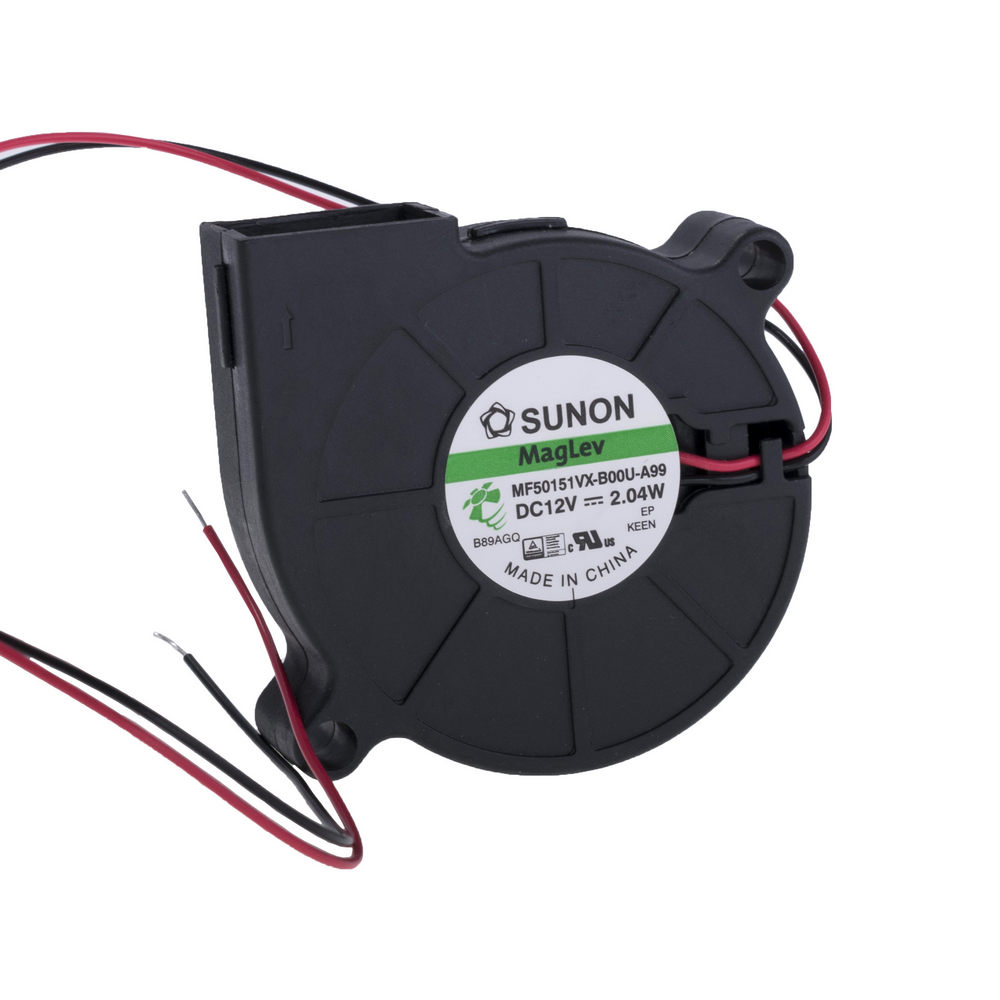

Вентилятор 50x50x15, 12V, (MF50151VX-A99) Produktcode: 121449 |
