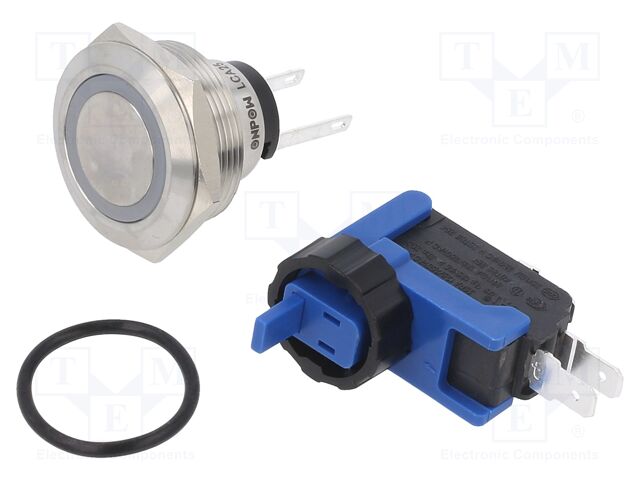

LCA25-11E/W/12V/S ONPOW
Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST NC + NO; 300mA/250VDC; IP65
Operating temperature: -25...55°C
Leads: connectors 4,8x0,5mm
Body material: stainless steel
Stable positions number: 1
Operating Force: 4N
Illumination: LED; ring
Illumination voltage: 12V
Actuator colour: silver
Body colour: silver
Backlight colour: white
Button shape: round
Number of positions: 2
Ring shape: rounded
Mechanical durability: 5000000 cycles
Test voltage: 1kV
Max. contact resistance:: 50mΩ
IP rating: IP65
Mounting hole diameter: Ø25mm
Electrical life: 50000 cycles
Contact material: silver alloy
Type of switch: vandal resistant
Contacts configuration: SPST NC + NO
DC contacts rating @R: 0.3A / 250V DC
Switching method: (ON)-ON
Anzahl je Verpackung: 1 Stücke
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST NC + NO; 300mA/250VDC; IP65
Operating temperature: -25...55°C
Leads: connectors 4,8x0,5mm
Body material: stainless steel
Stable positions number: 1
Operating Force: 4N
Illumination: LED; ring
Illumination voltage: 12V
Actuator colour: silver
Body colour: silver
Backlight colour: white
Button shape: round
Number of positions: 2
Ring shape: rounded
Mechanical durability: 5000000 cycles
Test voltage: 1kV
Max. contact resistance:: 50mΩ
IP rating: IP65
Mounting hole diameter: Ø25mm
Electrical life: 50000 cycles
Contact material: silver alloy
Type of switch: vandal resistant
Contacts configuration: SPST NC + NO
DC contacts rating @R: 0.3A / 250V DC
Switching method: (ON)-ON
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
2+ | 35.75 EUR |
4+ | 17.88 EUR |
