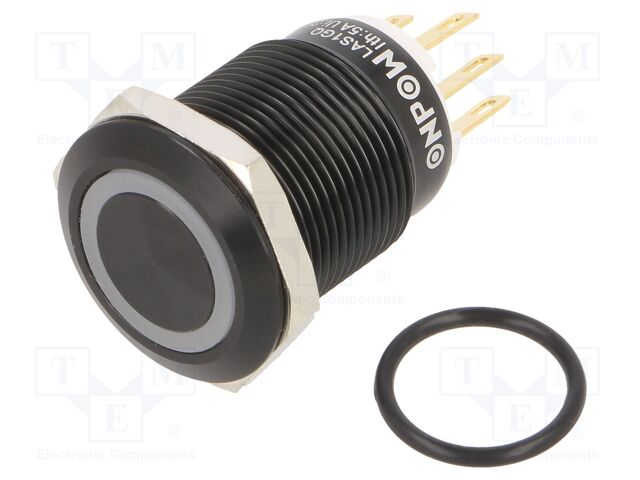

LAS1GQF-11E/W/12V/A ONPOW
Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Type of switch: vandal resistant
Number of positions: 2
Contacts configuration: SPDT
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
IP rating: IP65
Switching method: ON-(ON)
Illumination: LED; ring
Backlight colour: white
Illumination voltage: 12V
Leads: connectors 2,8x0,5mm
Operating temperature: -25...55°C
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 4N
Mechanical durability: 1000000 cycles
Button shape: flat
Mounting hole diameter: Ø19mm
Body colour: black
Body material: aluminium
Manufacturer series: LAS1GQ
Ring shape: rounded
Test voltage: 1.5kV
Contact material: silver alloy
Actuator colour: black
Min. insulation resistance: 1GΩ
Stable positions number: 1
Related items: M12-19F
Anzahl je Verpackung: 1 Stücke
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Type of switch: vandal resistant
Number of positions: 2
Contacts configuration: SPDT
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
IP rating: IP65
Switching method: ON-(ON)
Illumination: LED; ring
Backlight colour: white
Illumination voltage: 12V
Leads: connectors 2,8x0,5mm
Operating temperature: -25...55°C
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 4N
Mechanical durability: 1000000 cycles
Button shape: flat
Mounting hole diameter: Ø19mm
Body colour: black
Body material: aluminium
Manufacturer series: LAS1GQ
Ring shape: rounded
Test voltage: 1.5kV
Contact material: silver alloy
Actuator colour: black
Min. insulation resistance: 1GΩ
Stable positions number: 1
Related items: M12-19F
Anzahl je Verpackung: 1 Stücke
auf Bestellung 22 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
6+ | 12.8 EUR |
9+ | 8.29 EUR |
