Produkte > SAMTEC INC. > HTSW-104-07-F-S
HTSW-104-07-F-S

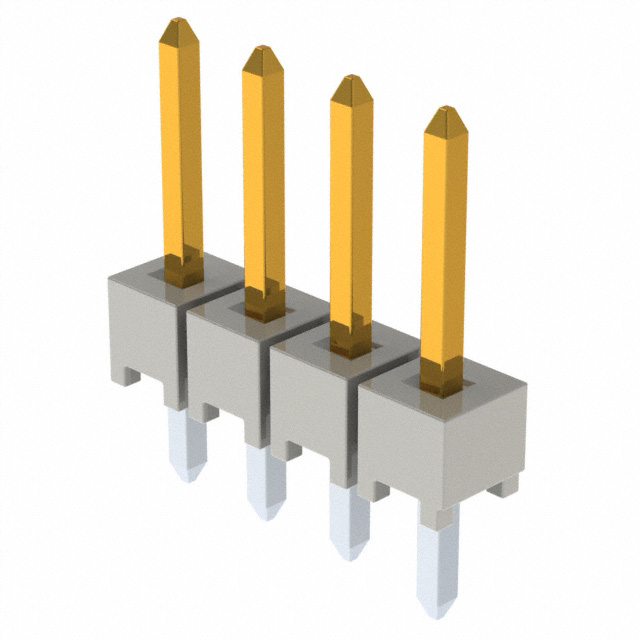

HTSW-104-07-F-S Samtec Inc.

htsw-xxx-xx-xxx-x-xx-xx-xx-mkt.pdf Hersteller: Samtec Inc.
Description: CONN HEADER VERT 4POS 2.54MM
Packaging: Bag
Connector Type: Header
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Through Hole
Number of Positions: 4
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.100" (2.54mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.230" (5.84mm)
auf Bestellung 2710 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
19+0.95 EUR
22+ 0.83 EUR
100+ 0.69 EUR
500+ 0.6 EUR
1000+ 0.49 EUR
Mindestbestellmenge: 19
Produktrezensionen
Produktbewertung abgeben

Technische Details HTSW-104-07-F-S Samtec Inc.

Description: CONN HEADER VERT 4POS 2.54MM, Packaging: Bag, Connector Type: Header, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Through Hole, Number of Positions: 4, Number of Rows: 1, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Natural, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 3.00µin (0.076µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.100" (2.54mm), Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Overall Contact Length: 0.430" (10.92mm), Insulation Material: Liquid Crystal Polymer (LCP), Contact Length - Mating: 0.230" (5.84mm).
