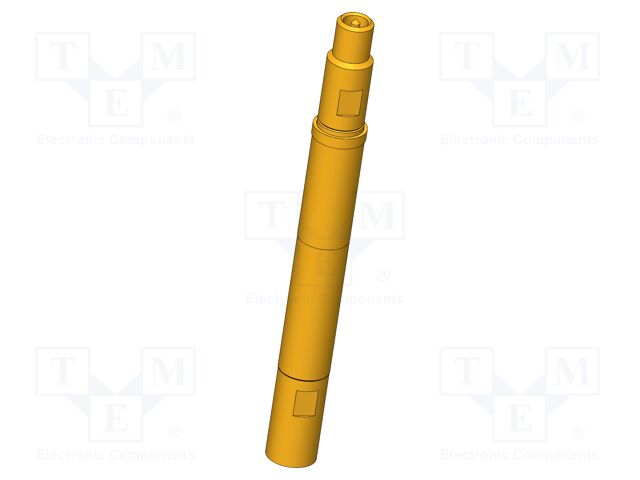

HFS-840 308 080 A 8042 X4 INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 0.8mm
Type of test accessories: test needle
Operational spring compression: 2mm
Maksimum spring compression: 3.7mm
Current rating: 3A
Contact plating: gold-plated
Contact material: CuBe
Blade tip shape: cone
Tip diameter: 0.8mm
Manufacturer series: HFS-840
Operating temperature: -40...80°C
Mounting: push-in
Length: 43mm
Spring compression force: 2N
Impedance: 50Ω
Max. frequency: 4GHz
Test accessories features: self-cleaning
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details HFS-840 308 080 A 8042 X4 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 0.8mm, Type of test accessories: test needle, Operational spring compression: 2mm, Maksimum spring compression: 3.7mm, Current rating: 3A, Contact plating: gold-plated, Contact material: CuBe, Blade tip shape: cone, Tip diameter: 0.8mm, Manufacturer series: HFS-840, Operating temperature: -40...80°C, Mounting: push-in, Length: 43mm, Spring compression force: 2N, Impedance: 50Ω, Max. frequency: 4GHz, Test accessories features: self-cleaning, Anzahl je Verpackung: 1 Stücke.
