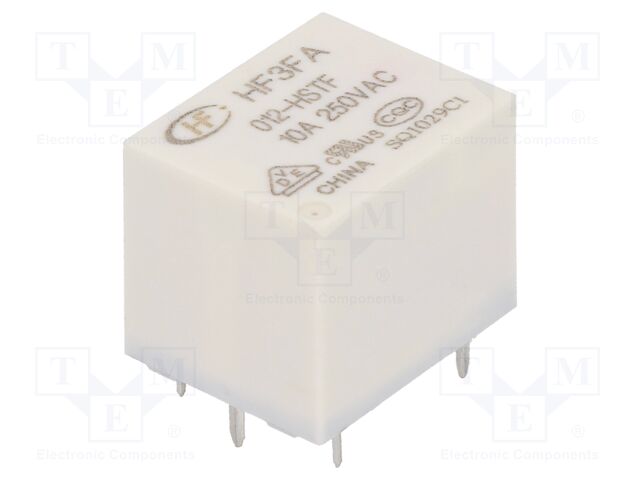

HF3FA/012-HSTF HONGFA RELAY
Hersteller: HONGFA RELAY
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 15A; 10A/277VAC
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 15A
AC contacts rating @R: 10A / 277V AC
DC contacts rating @R: 10A / 28V DC
Switched voltage: max. 28V DC; max. 277V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 400Ω
Coil voltage min.: 9V DC
Coil voltage max.: 15.6V DC
Operate time: 10ms
Body dimensions: 19x15.5x15.5mm
Release time: 5ms
Coil power consumption: 360mW
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Contact material: AgSnO2
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 15A; 10A/277VAC
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 15A
AC contacts rating @R: 10A / 277V AC
DC contacts rating @R: 10A / 28V DC
Switched voltage: max. 28V DC; max. 277V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 400Ω
Coil voltage min.: 9V DC
Coil voltage max.: 15.6V DC
Operate time: 10ms
Body dimensions: 19x15.5x15.5mm
Release time: 5ms
Coil power consumption: 360mW
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Contact material: AgSnO2
Anzahl je Verpackung: 1 Stücke
auf Bestellung 966 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
64+ | 1.13 EUR |
70+ | 1.02 EUR |
74+ | 0.97 EUR |
122+ | 0.59 EUR |
129+ | 0.56 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HF3FA/012-HSTF HONGFA RELAY
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 15A; 10A/277VAC, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 12V DC, Contact current max.: 15A, AC contacts rating @R: 10A / 277V AC, DC contacts rating @R: 10A / 28V DC, Switched voltage: max. 28V DC; max. 277V AC, Relay variant: subminiature, Mounting: PCB, Coil resistance: 400Ω, Coil voltage min.: 9V DC, Coil voltage max.: 15.6V DC, Operate time: 10ms, Body dimensions: 19x15.5x15.5mm, Release time: 5ms, Coil power consumption: 360mW, Operating temperature: -40...85°C, Contact resistance: 100mΩ, Contact material: AgSnO2, Anzahl je Verpackung: 1 Stücke.
